Cheetah 60A Reglage och 13.5T Motor Sensor*Utgått

Artnr:
SK300058-03
Lev.artnr:
SK300058-03
Lagersaldo:
-1 st
Cirkapris: 1246 kr
  • Information

    • Cheetah 1/10th 60A Sensored Combo set is ready to run out of box, coming with Cheetah 60A Sensored ESC, Cheetah 8.5T Sensored Motor and a programming card.


      Cheetah 1/10th CS60 60A Sensored ESC is designed for 1/10th and 1/12th scale car with the use of 2-3 cells LiPo battery and 5-9 NiMH battery. Equipped with 6V/3A BEC, it doesn't need a separate receiver pack. With Program Card, you could set cut-off voltage, brake and punch strength, drag brake and other parameters.

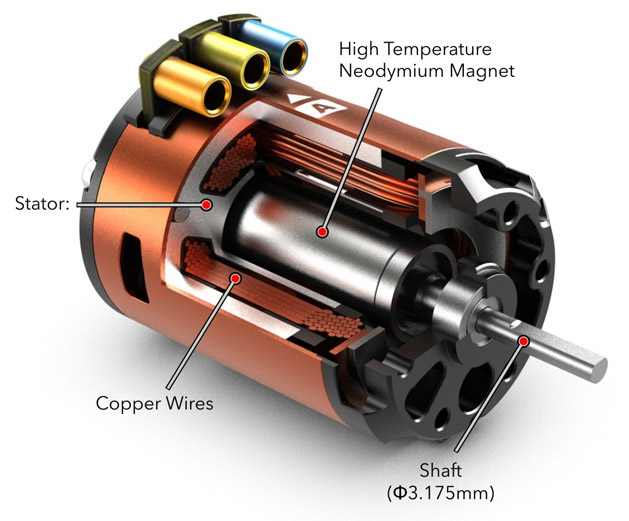

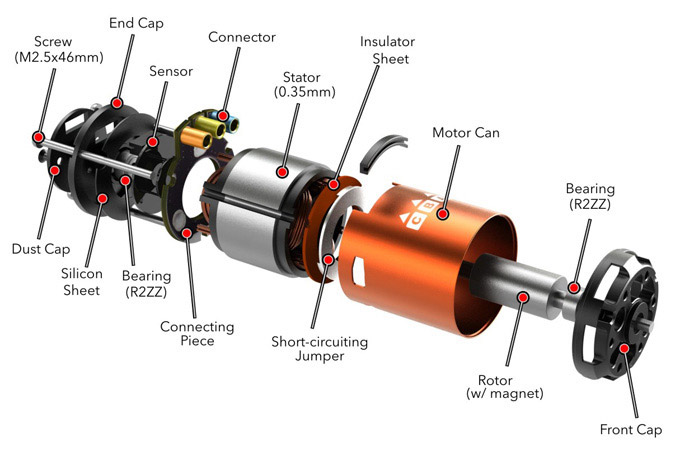

      CHEETAH 13.5T Brushless Motor:
      • Brushless sensored in-runner motor
      • 240 watt
      • Rotordia: 12.5 mm
      • 2590KV (revs per volt)
      • Weight: 165 g
      • Shaft dia: 3.175 mm (1/8")
      • 2-3S LiPo
      • Gearing 1/10 Touring Medium Track: 4.8:1
      • Gearing 1/10 Touring Small Track: 5.5:1
      The above suggestion is based on using 12.5mm rotor and esc without timing setting.

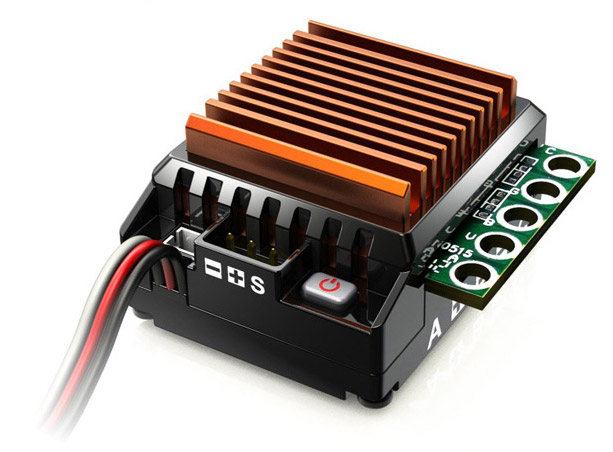

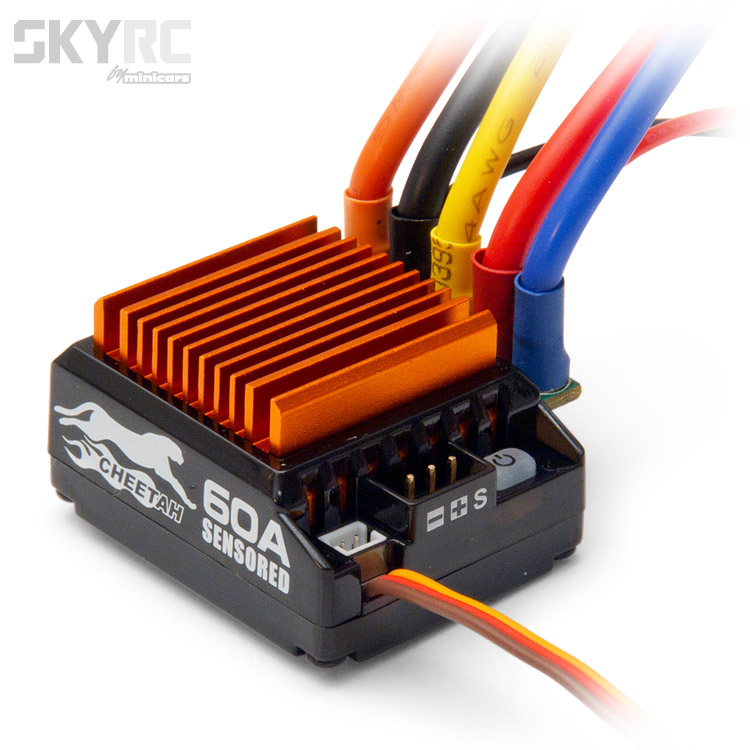

      CHEETAH CS60 Brushless Sensored ESC:
      • Constant/Burst Current: 60A/380A
      • Motor Compatible:  Brushless Sensor & Sensorless
      • Car Compatible: 1/10 and 1/12 Buggy and Touring Car & 1/10 and 1/8 Crawlers
      • Motor Limits:
      • Resistance: 0.0007ohm
      • Battery Cell Count
      • BEC Output: 6V@3A

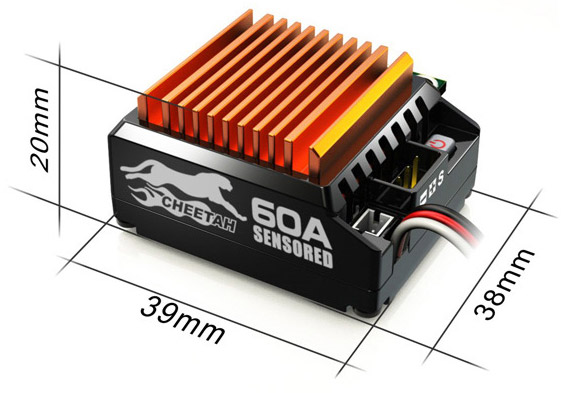

      • Size: 39 x 38 x 20 mm (LxWxH)
      • Weight: 30g (w/o wire)
      • FAN: 5V@0.2A , Max 12.6V

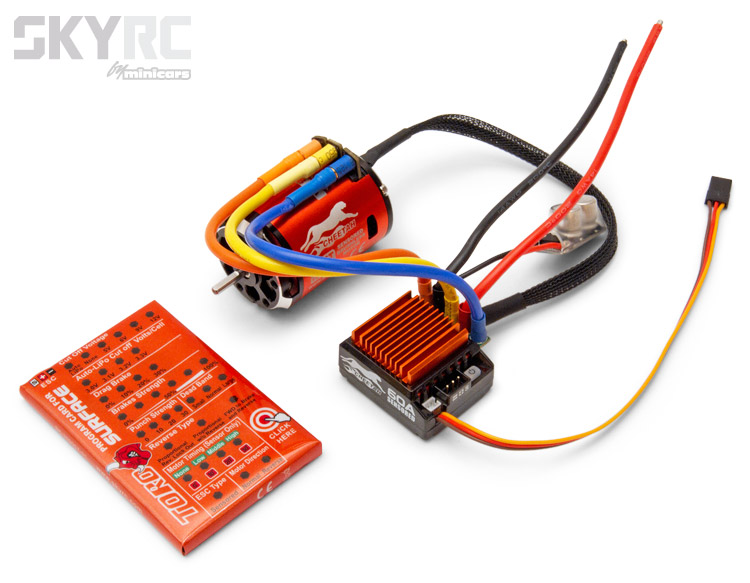

      Included:
      • Cheetah 60A BL sensored ESC
      • Cheetah 13.5T sensored BL motor

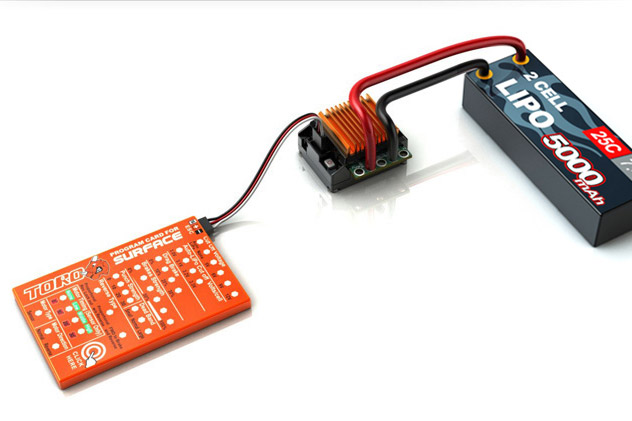

      • Toro Surface programming card

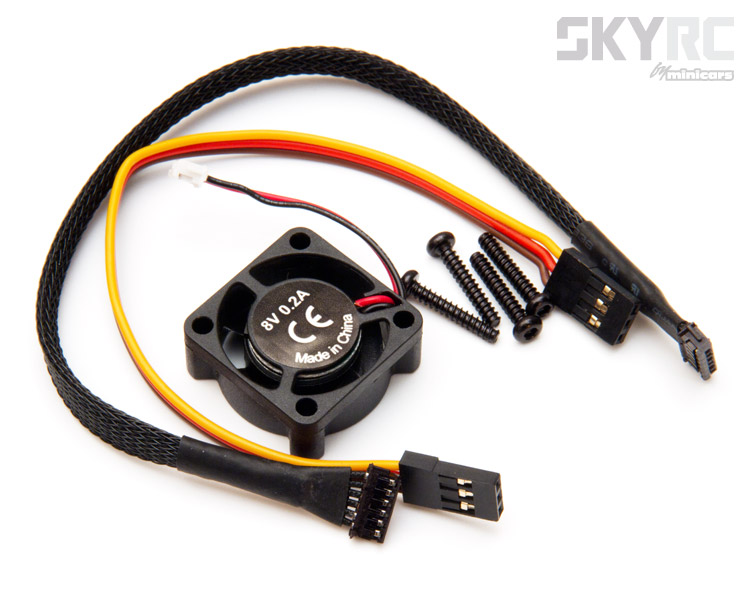

      • Sensor wire

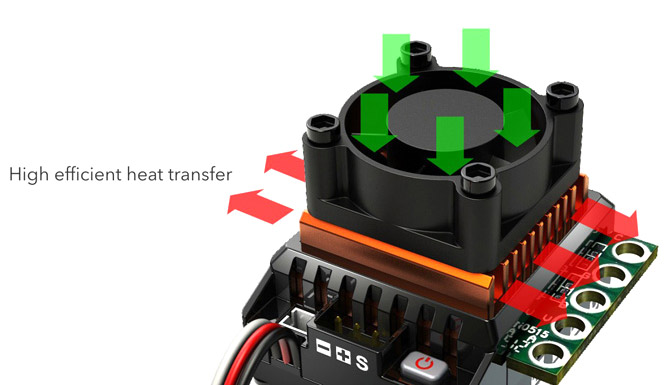

      • Cooling fan
