Slash 4x4 XL-5 1/10 RTR TQ Orange LED med Batt/Laddare

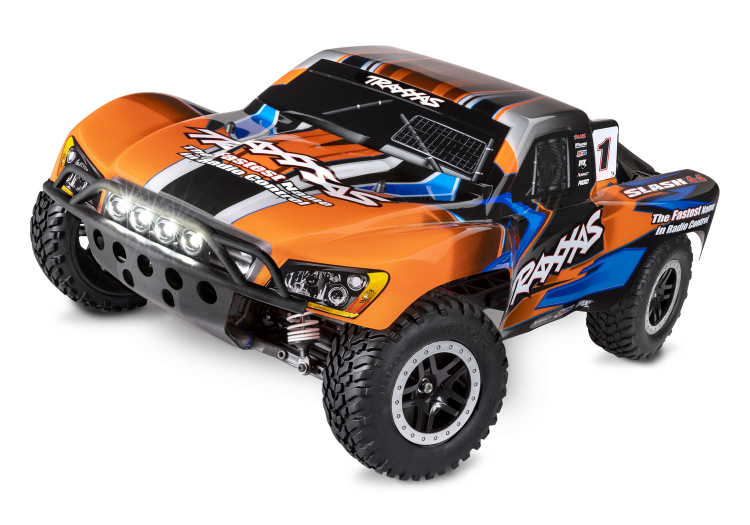

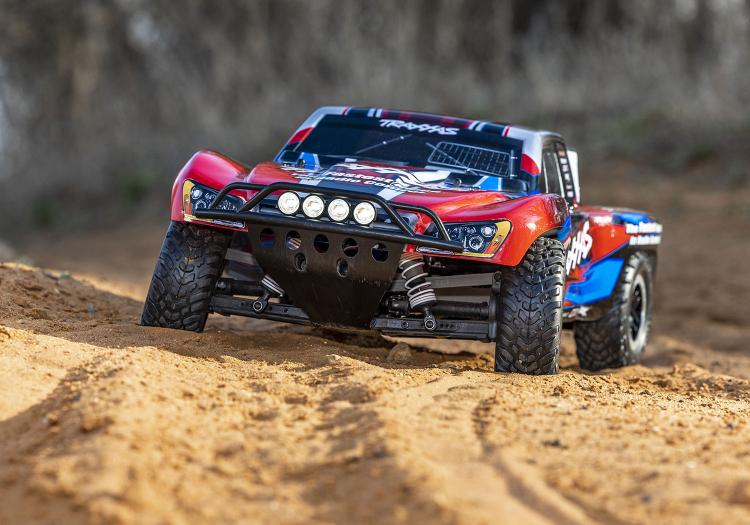

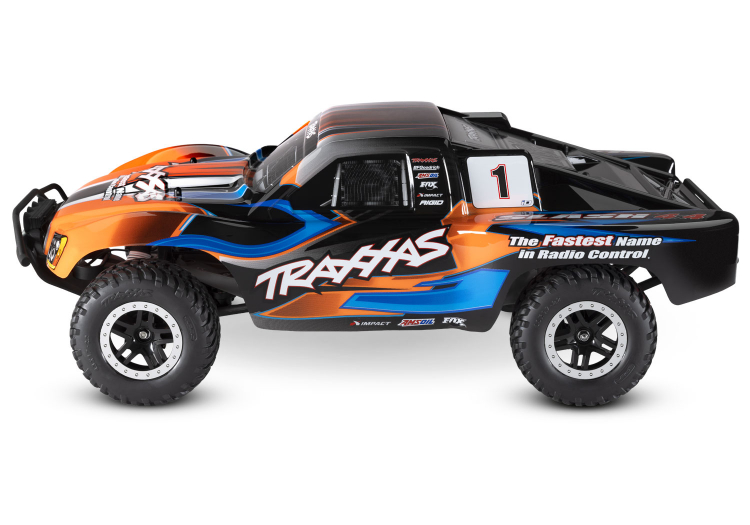

Traxxas SLASH 4X4 1/10 High-Performance 4X4 Short Course Truck with LED’s - ORANGE

The Traxxas Slash set the standard for durability, performance, and fun by which all other short course trucks are measured. Outfitted with the powerful Titan 12T 550 motor and bulletproof reliability of the XL-5 electronic speed control, the Slash takes on any high-flying, fender-banging, adventure you can throw at it. Waterproof electronics keep the fun going through wet weather conditions and LED lighting extends your driving fun after dark. Grab your transmitter, rip some 4-wheel roost, and discover why nothing else is built like a Slash!

FEATURES ON SLASH 4X4 (#68054-61):

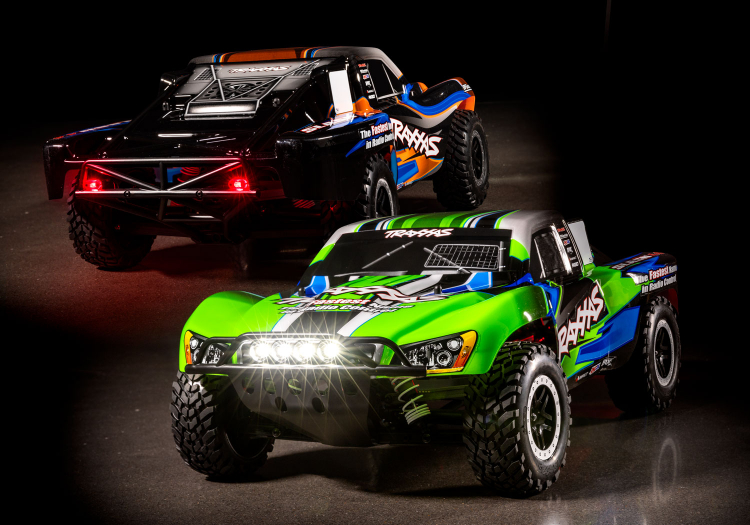

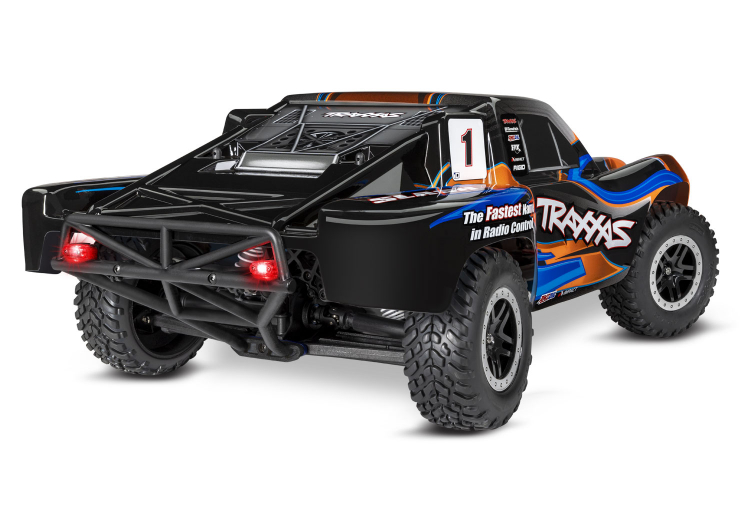

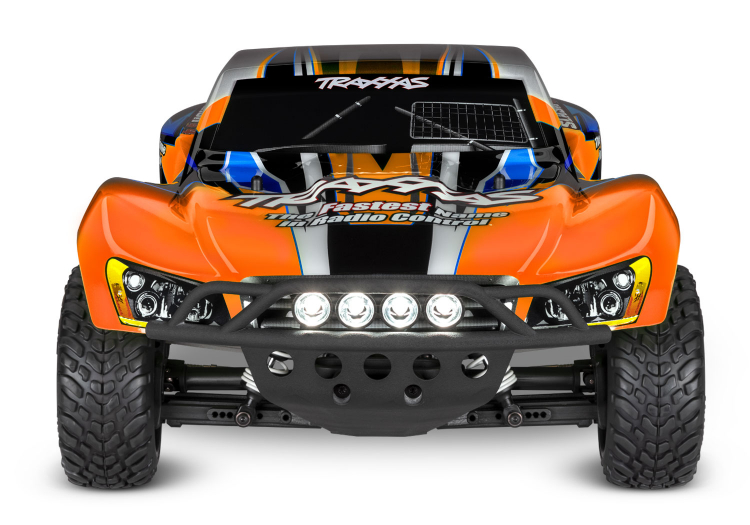

• ­NEW Factory-installed front and rear LED lighting
• NEW ProGraphix® paint

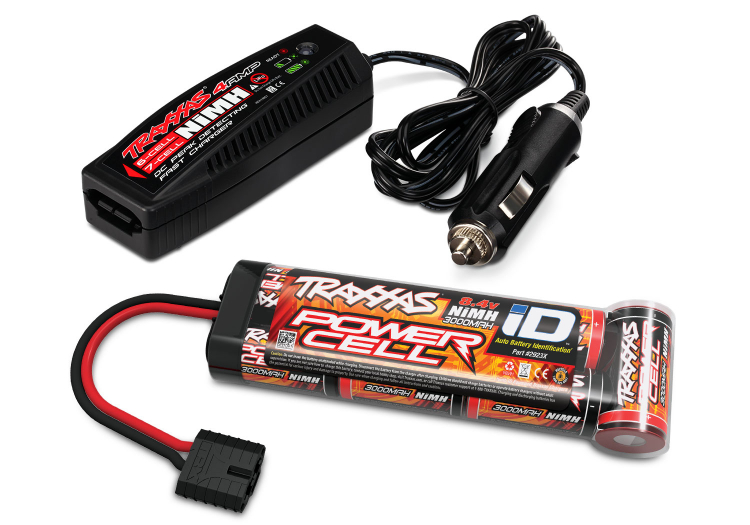

• Includes battery and charger:
• - 4-amp 12V DC Peak-Detecting Fast Charger
• - Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD®

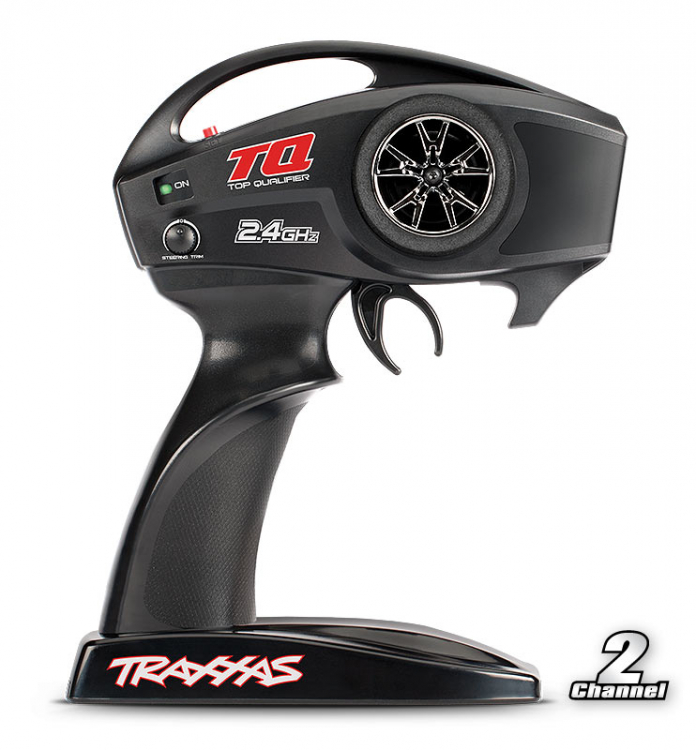

• TQ™ 2.4GHz radio system
• Waterproof electronics all-weather, all-season RC excitement
• Titan® 12-turn 550 motor
• XL-5 electronic speed control
• Sealed, steel-gear front and rear differentials
• Shaft-driven 4WD with heavy-duty axles
• Rugged modular composite frame
• 100% Fully assembled and Ready-To-Race®

SLASH 4X4 (#68054-61) SPECS:

• Length: 568 mm
• Front Track: 296 mm
• Rear Track: 296 mm
• Center Ground Clearance:­ 72 mm
• Weight: 2.66 kg
• Height (overall):­ 193 mm
• Wheelbase: 324 mm
• Shock Length: Long (front), XXLong (rear)

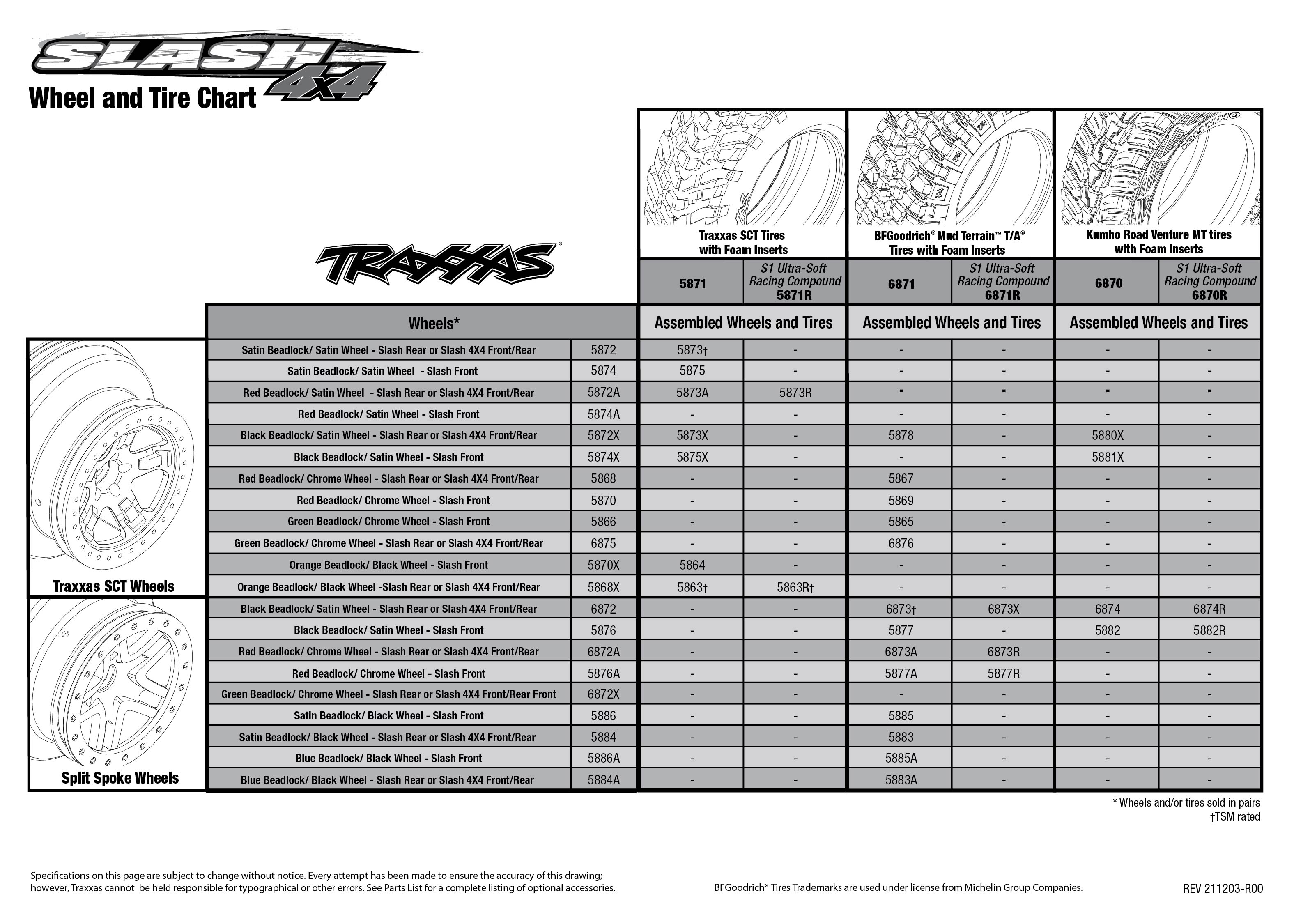

• Tires: Traxxas 2.2" SCT pre-glued with foam inserts
• Tire Diameter: 109.5 mm (front and rear)
• Wheels (front/rear):­ 2.2" black and silver Split-Spoke SCT
• Wheel Diameter: 2.2" (56 mm) outer / 3.0” (76 mm) inner
• Speed Control Type:­ XL-5™ Electronic
• Motor (electric):­ Titan® 12T 550 (12-turn)
• Overall Drive Ratio:­ 19.23 (stock, out-of-box)
• Differential Type:­ Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material:­ Molded tub / nylon composite
• Drive System:­ Shaft-driven, direct drive 4WD
• Steering:­ Dual-bellcrank with integrated servo saver
• Radio System:­ TQ™ 2.4GHz (2-channel)
• Body: ProGraphix, Traxxas Slash
• Skill Level: 1
• *Battery Tray Dimensions: 165 x 49.5 x 23/25 mm
• Included Charger:­ Traxxas 4-amp 12V DC Peak Detecting Fast Charger
• Included Batteries:­ Traxxas 7-cell NiMH battery with iD®
• Required Items:­ 4 "AA" Batteries (for transmitter)

*Battery expansion kit is available

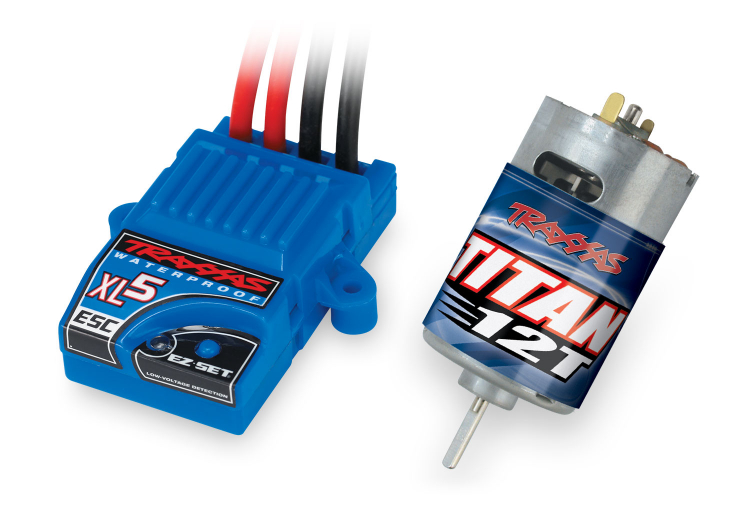

XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage:­ 4-7 Cells NiMH (4.8 to 8.4 Volts DC)
• Case Size: 31 x 55 x 15.5 mm
• Motor Limit: 15-turns** (540 Size) / 12-turns** (550 Size)
• BEC Voltage:­ 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge
• Input Harness Wire: 26 Gauge
• Low Voltage Detection (LVD):­ 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV

­*Patented
**Properly Geared
