Slash VXL 2WD 1 /10 RTR TQi TSM Orange 272R utan Batt & Laddare

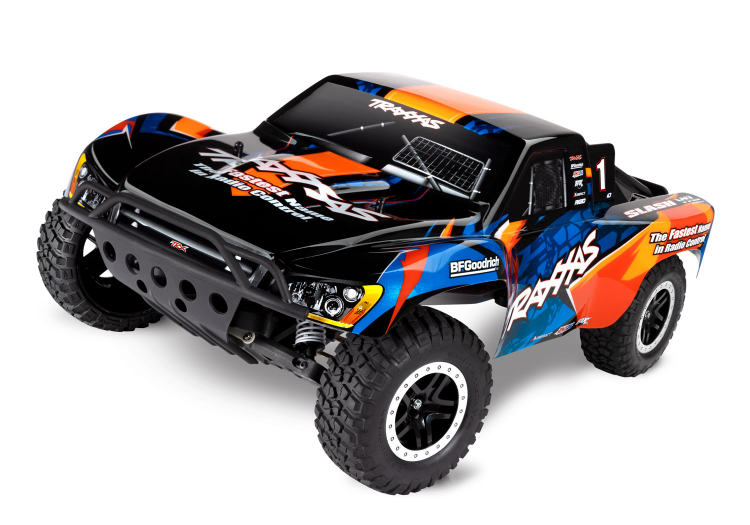

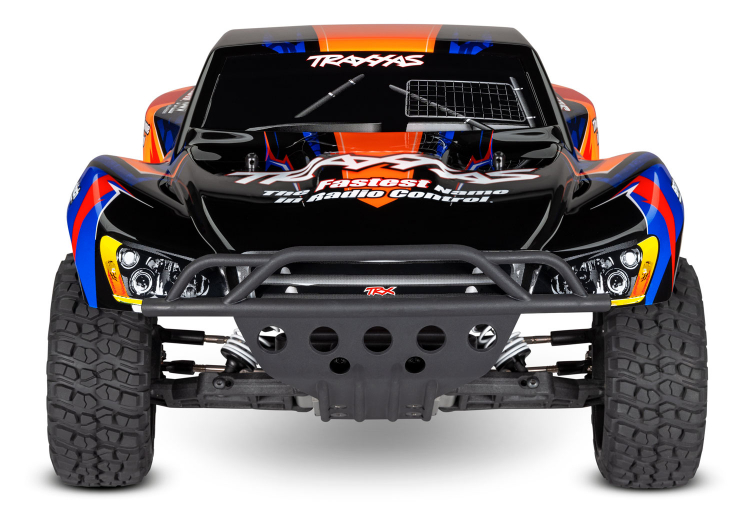

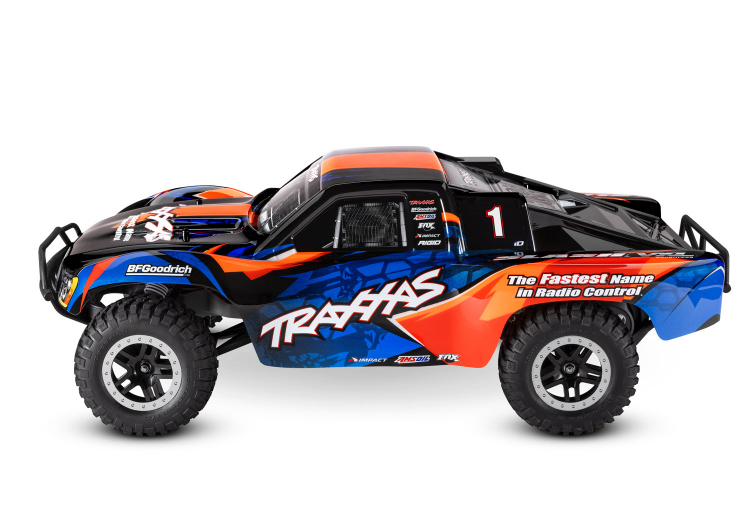

Traxxas Slash® VXL 2WD 1/10 Short Course Truck RTR with Magnum 272R Transmission - ORANGE

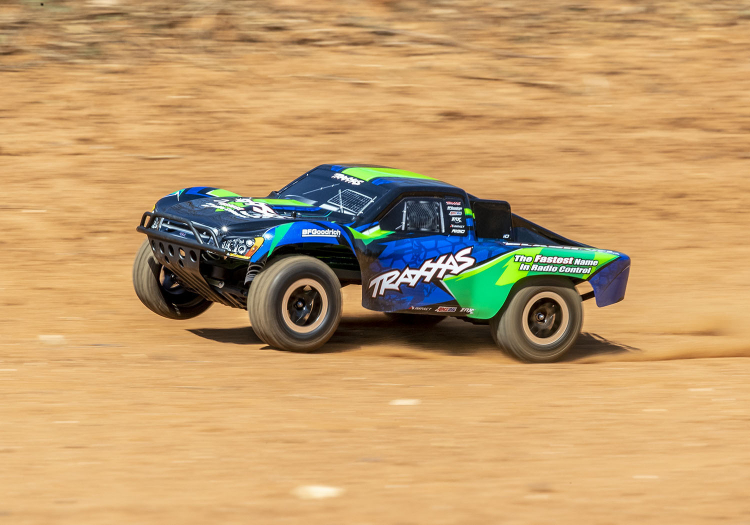

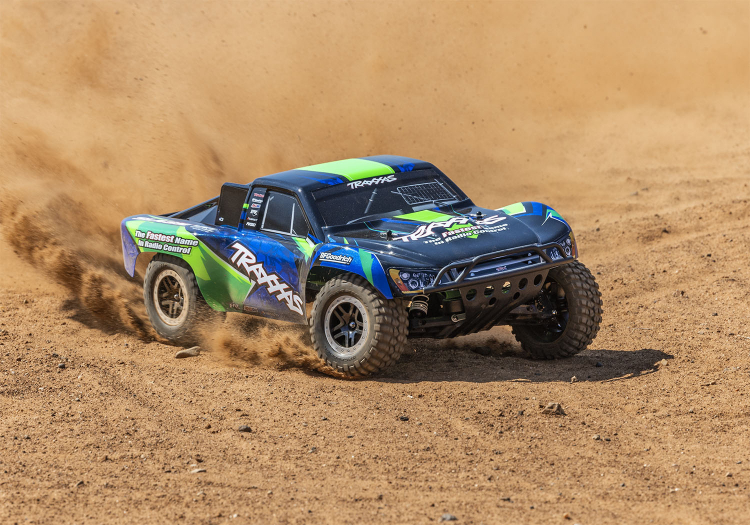

The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon brushless power provides screaming 96+kph† speed while the advanced TQi™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

FEATURES ON SLASH VXL (#58076-74):

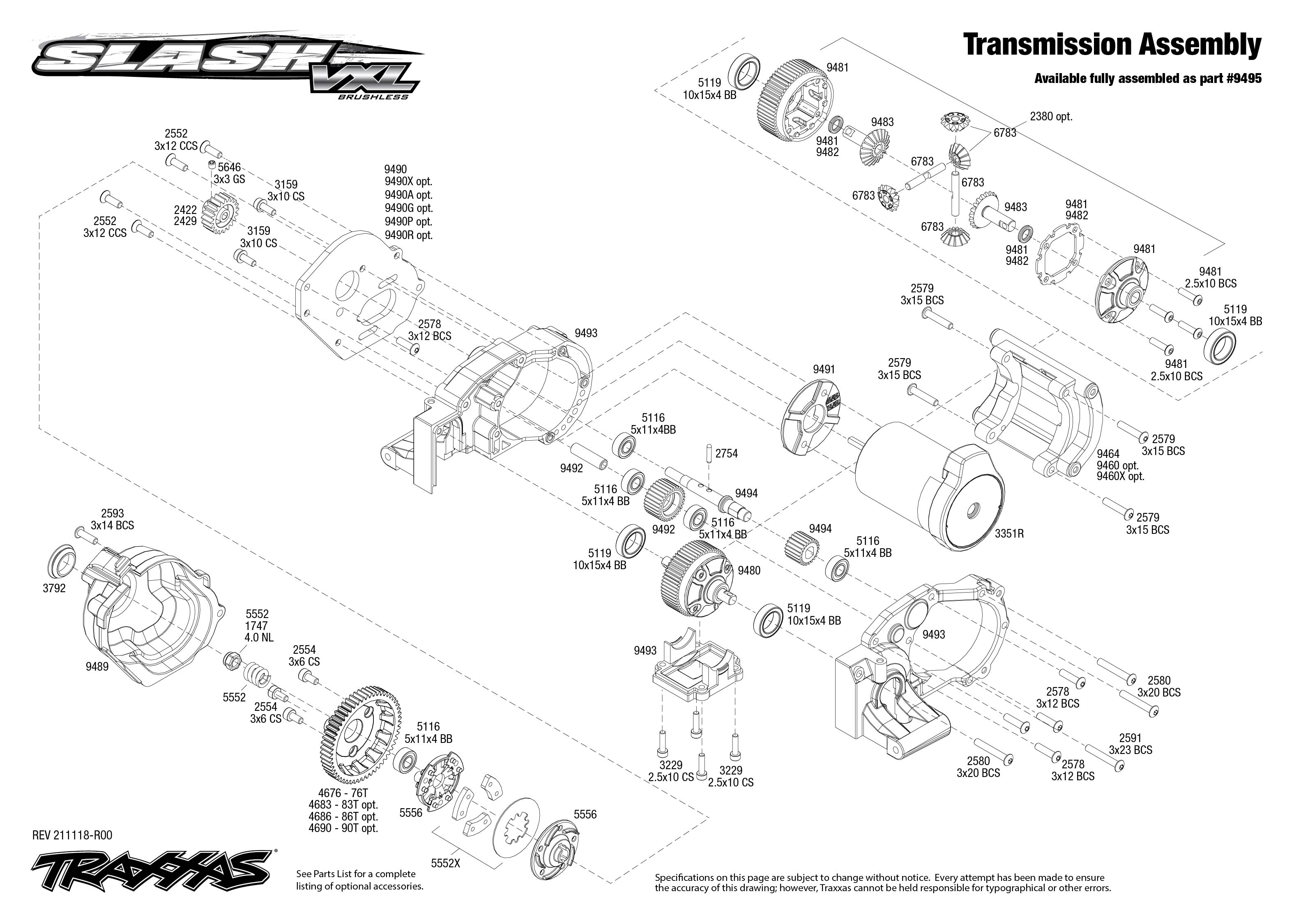

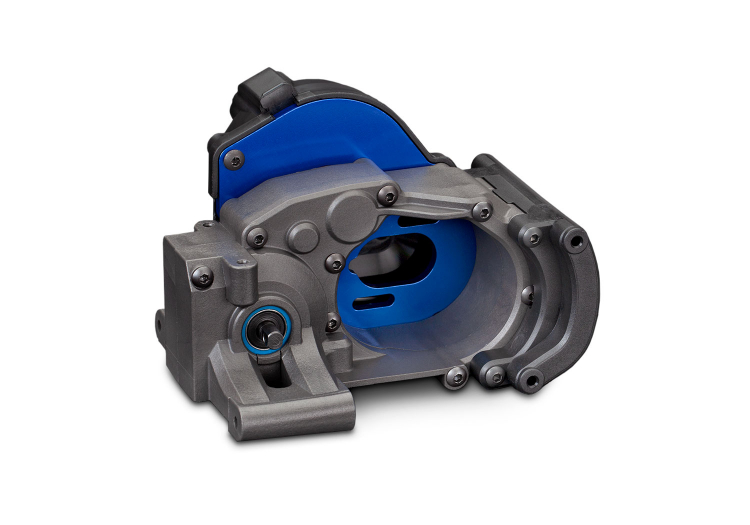

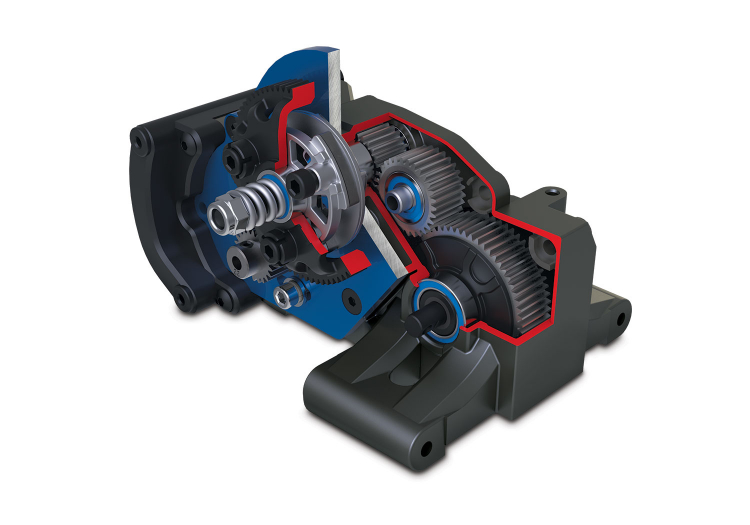

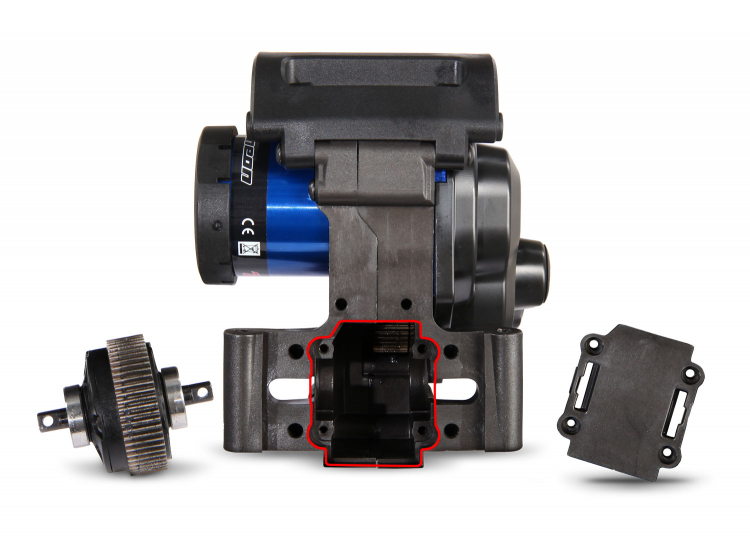

• ­NEW Magnum 272R transmission
• - Aluminum motor plate
• - All-metal internal gears
• - Sealed beveled-gear differential
• NEW ProGraphix® paint
• Velineon® brushless power system
• Traxxas Stability Management TSM®

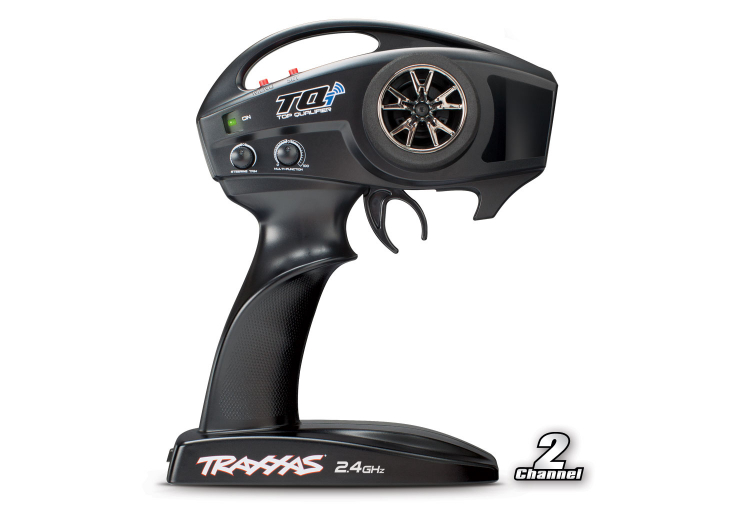

• TQi 2.4GHz transmitter and receiver
• Waterproof electronics

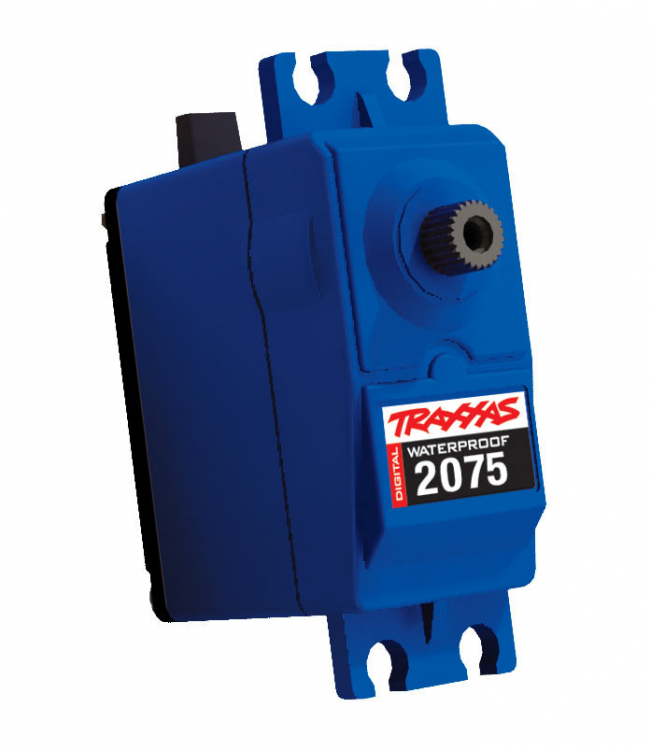

• Digital high-torque waterproof steering servo
• Precision steel turnbuckles with heavy-duty rod ends
• 100% Fully assembled and Ready-To-Race®
• Battery and charger sold separately

SLASH VXL (#58076-74) SPECS:

• Length: 568 mm
• Front Track:­ 296 mm
• Rear Track: 296 mm
• Weight: 2.56 kg
• Height (overall):­ 214 mm
• Wheelbase: 335 mm
• Front Shock Length:­ Long
• Rear Shock Length: XXLong

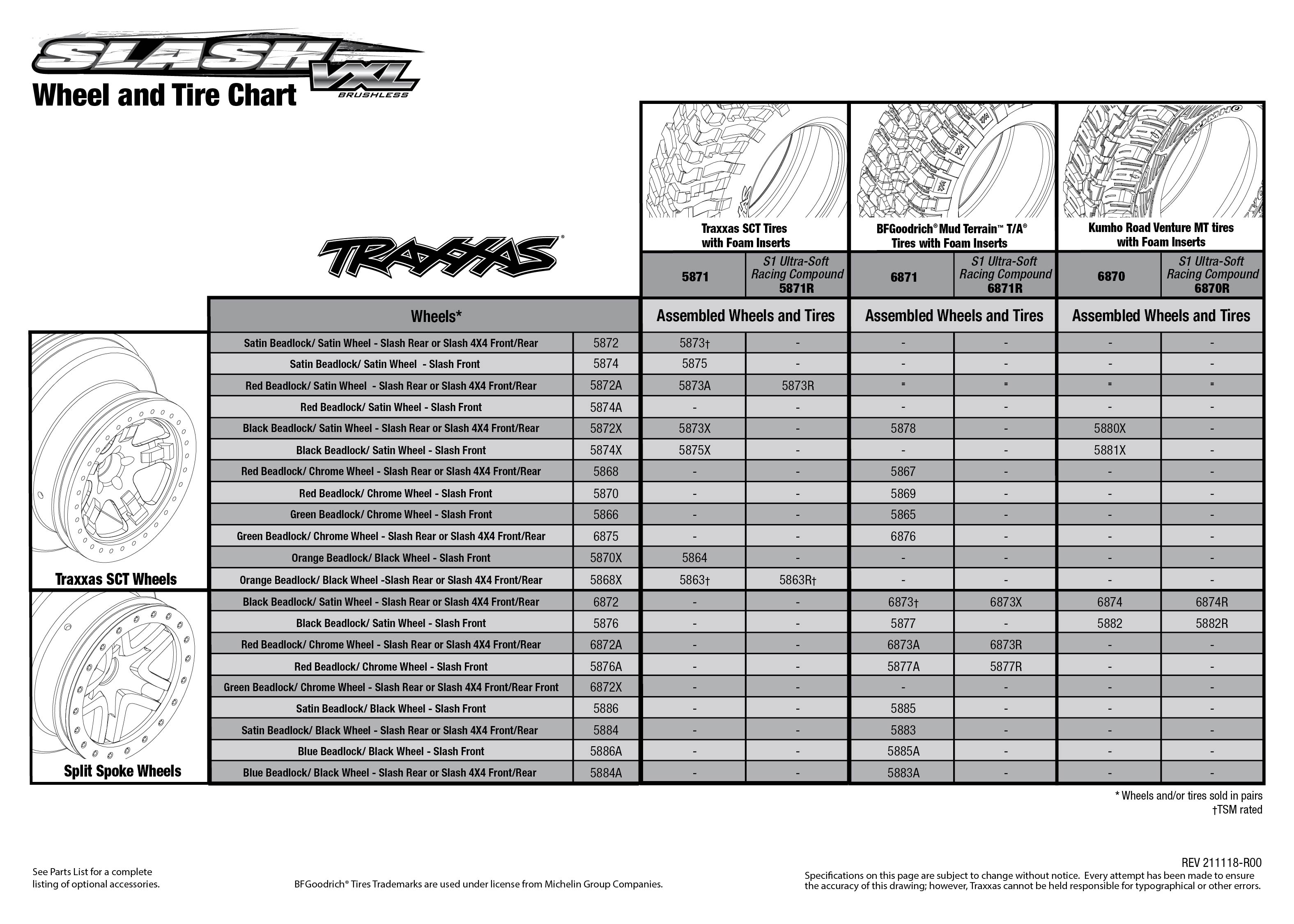

• Front Tires:­ Slash 2.2 (Pre-Glued with Inserts)
• Rear Tires:­ Slash 2.2 (Pre-Glued with Inserts)
• Front Wheels: 2.2" Satin or Chrome-Finish
• Rear Wheels: 2.2” Satin or Chrome-Finish
• Speed Control Type:­ VXL-3s™
• Motor (electric): Velineon® 3500 Brushless
• Gear Ratio (internal):­ 2.72 (final drive: 10.2)
• Differential Type: Sealed Beveled-Gear
• Gear Pitch: 48-Pitch
• Transmission:­ Metal Gear Magnum 272R™
• Steering: Bellcrank

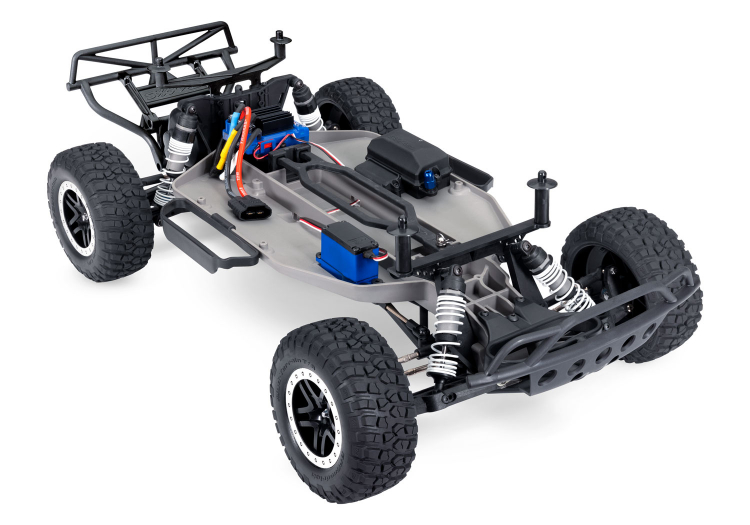

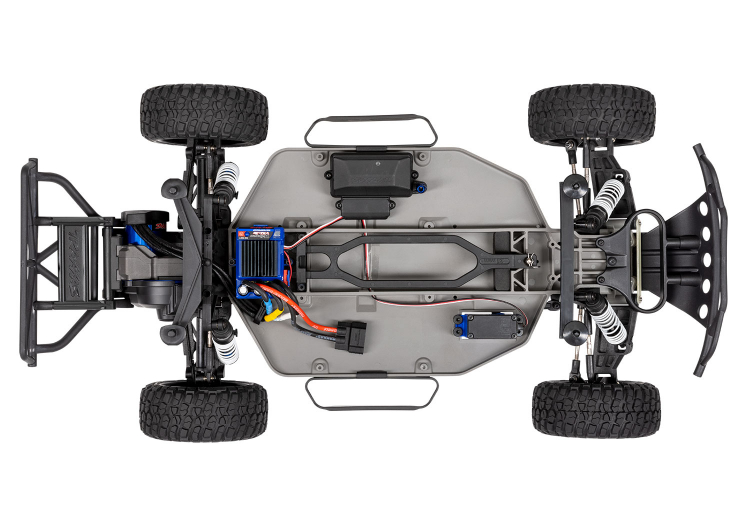

• Chassis Type: Long-wheelbase fiber-composite chassis
• Chassis Material: Composite Nylon
• Center Ground Clearance:­ 89 mm
• Top Speed: 96+kph*
• Skill Level: 1
• Radio System (transmitter): TQi™ 2.4GHz (2-channel)
• Radio System (receiver): Traxxas Stability Management® (#6533)
• **Battery Tray Dimensions: 165 x 49.5 x 23/25 mm
• Required: NiMH or LiPo Battery, Charger, 4 "AA" batteries (transmitter)

**Battery expansion kit is available (#5827X)

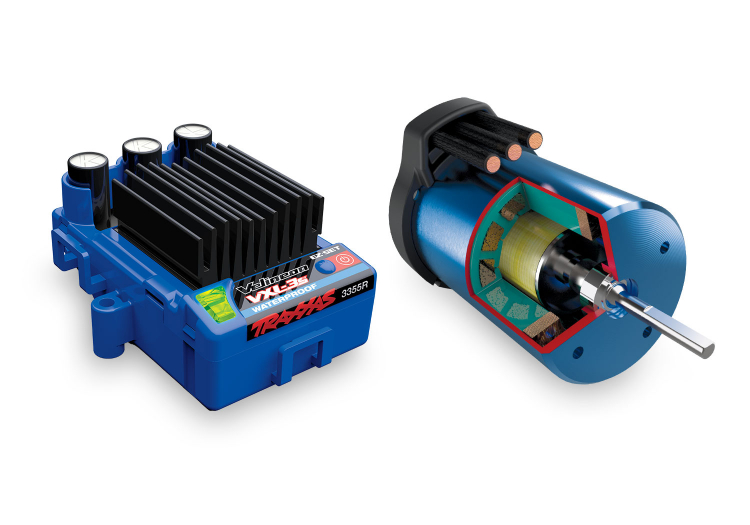

VXL-3s WATERPROOF ESC SPECIFICATIONS:

• Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
• Case Size: 39 x 55 x 33 mm
• Weight: 90 grams
• Motor Limit (Brushless): No motor limit
• BEC Voltage: 6.0 V
• BEC Current: 2.5A
• Power Wire: 12-Gauge Maxx® Cable
• Input Harness Wire: 26 Gauge
• Low Voltage Detection: 2-Stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown
• Single-Button Setup: Yes, Traxxas EZ-Set®

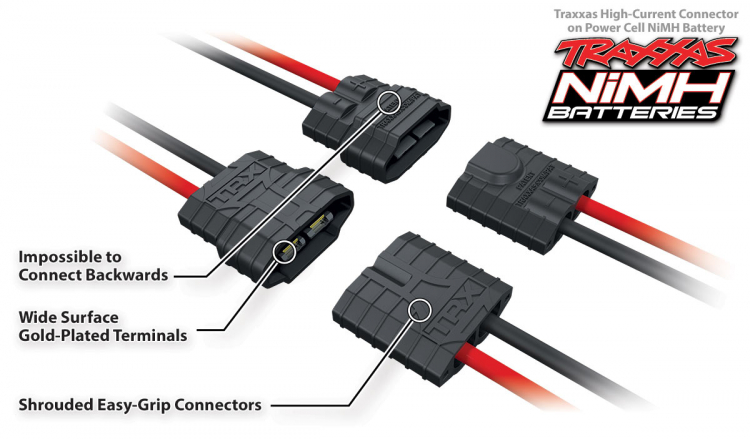

• Battery Input Connector: Traxxas High-Current Connector
• Motor Types: Brushless
• Ports: RX Input, auxiliary fan

Profile selection:

• Sport Mode: 100% FWD, 100% BRAKES, 100% REV
• Race Mode: 100% FWD, 100% BRAKES, NO REV
• Training Mode:* 50% FWD, 100% BRAKES, 50% REV

*Patented
