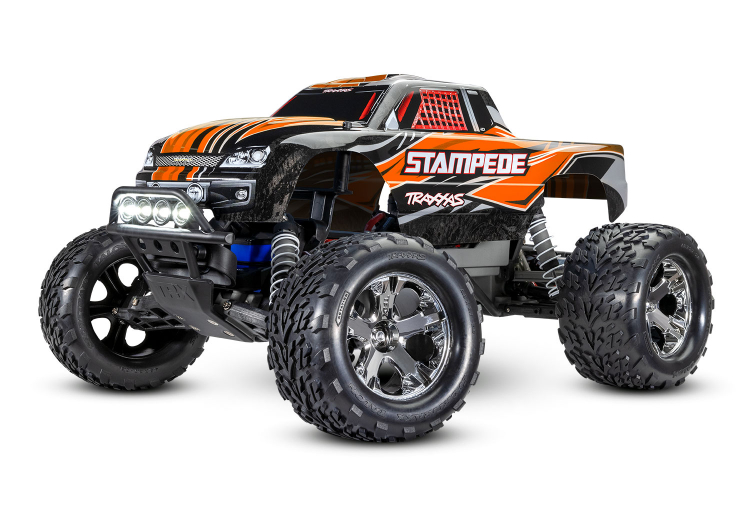

Stampede 2WD 1/10 RTR TQ Orange LED med Batt/Laddare

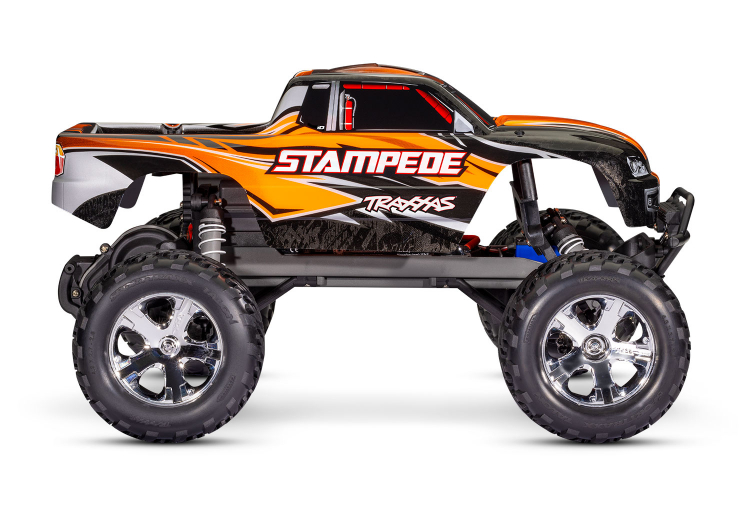

Traxxas Stampede XL-5® Rock-Crushing Torque, Now with LED’s - ORANGE

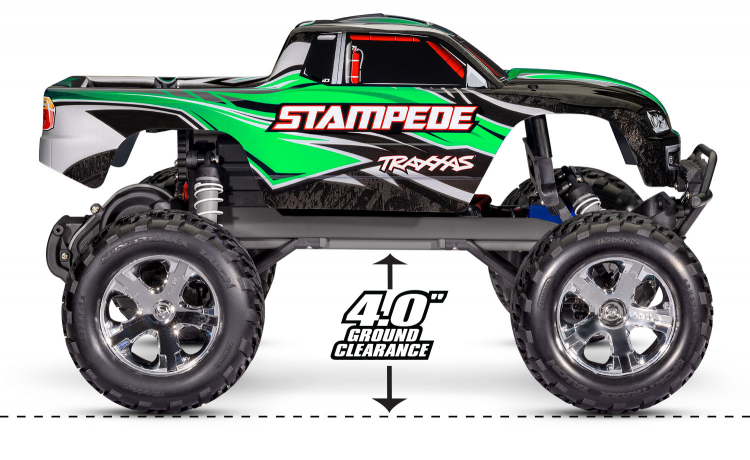

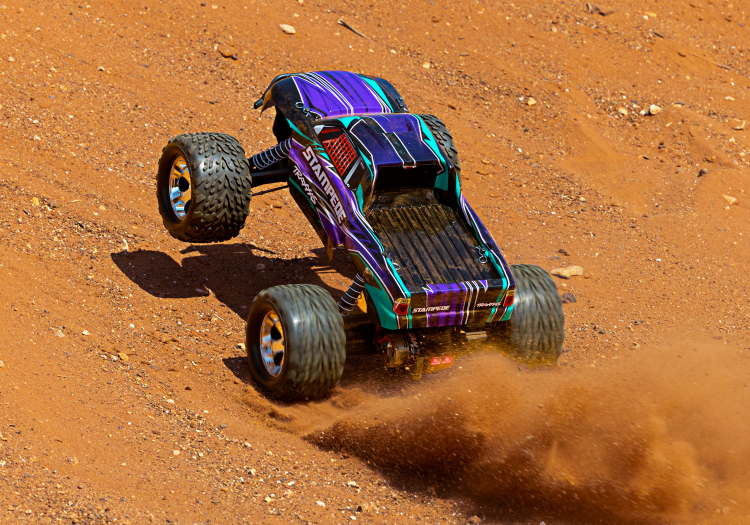

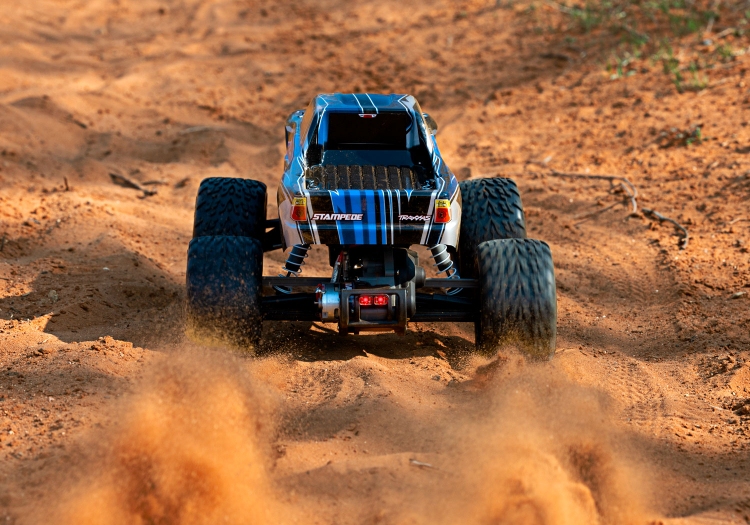

The Stampede’s legendary ruggedness has made its name synonymous with off-road fun. With a top speed of 48+ kph* and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle and the Titan® motor’s massive torque raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Mud, puddles, and snow don’t stand a chance against this high-octane monster truck thanks to Traxxas’ waterproof electronics. Add more excitement to your RC adventures with the quality and performance of the Traxxas Stampede.

QUICK FEATURES ON STAMPEDE (#37054-61):

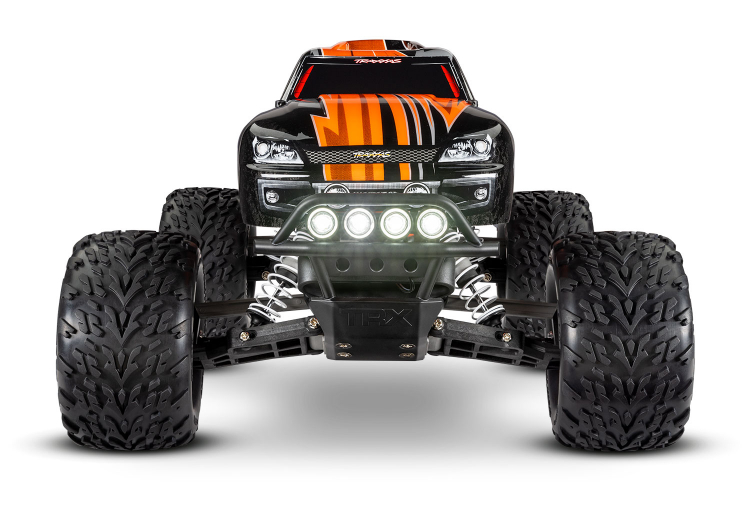

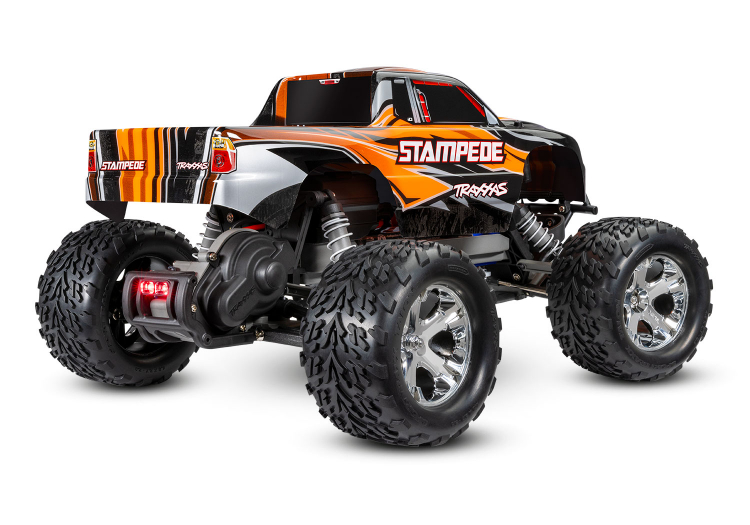

• NEW Factory-installed front and rear LED lighting
• NEW ProGraphix® paint
• Includes battery and charger
• 4-amp DC Peak Detecting Fast Charger
• Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD®
• TQ™ 2.4GHz radio system
• Waterproof electronics for all-weather driving
• 48+kph!*
• Titan® 12-turn 550 motor
• Powerful XL-5 waterproof electronic speed control
• Traxxas' exclusive patented Training Mode
• Brushless-Ready metal gear Magnum 272™ transmission
• 100% Fully assembled and Ready-To-Race®

STAMPEDE (#36054-61) SPECS:

• Length: 428 mm
• Front Track: 324 mm
• Rear Track: 324 mm
• Weight: 1.85 kg
• Height (overall): 241 mm
• Wheelbase: 270 mm
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires (pre-glued): Talon™ 2.8"
• Rear Tires (pre-glued): Talon™ 2.8"
• Front Wheels: 2.8" Mirror-Chrome (All-Star™)
• Rear Wheels: 2.8" Mirror-Chrome (All-Star™)
• Electronic Speed Control: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-Turn)
• Steering Servo: #2056 High Torque Waterproof
• Transmitter: TQ 2.4GHz Radio
• Receiver: #6519 3-Channel Micro
• Gear Ratio (internal): 2.72 (final drive: 12.34)
• Differential Type: Planetary
• Gear Pitch: 48-Pitch

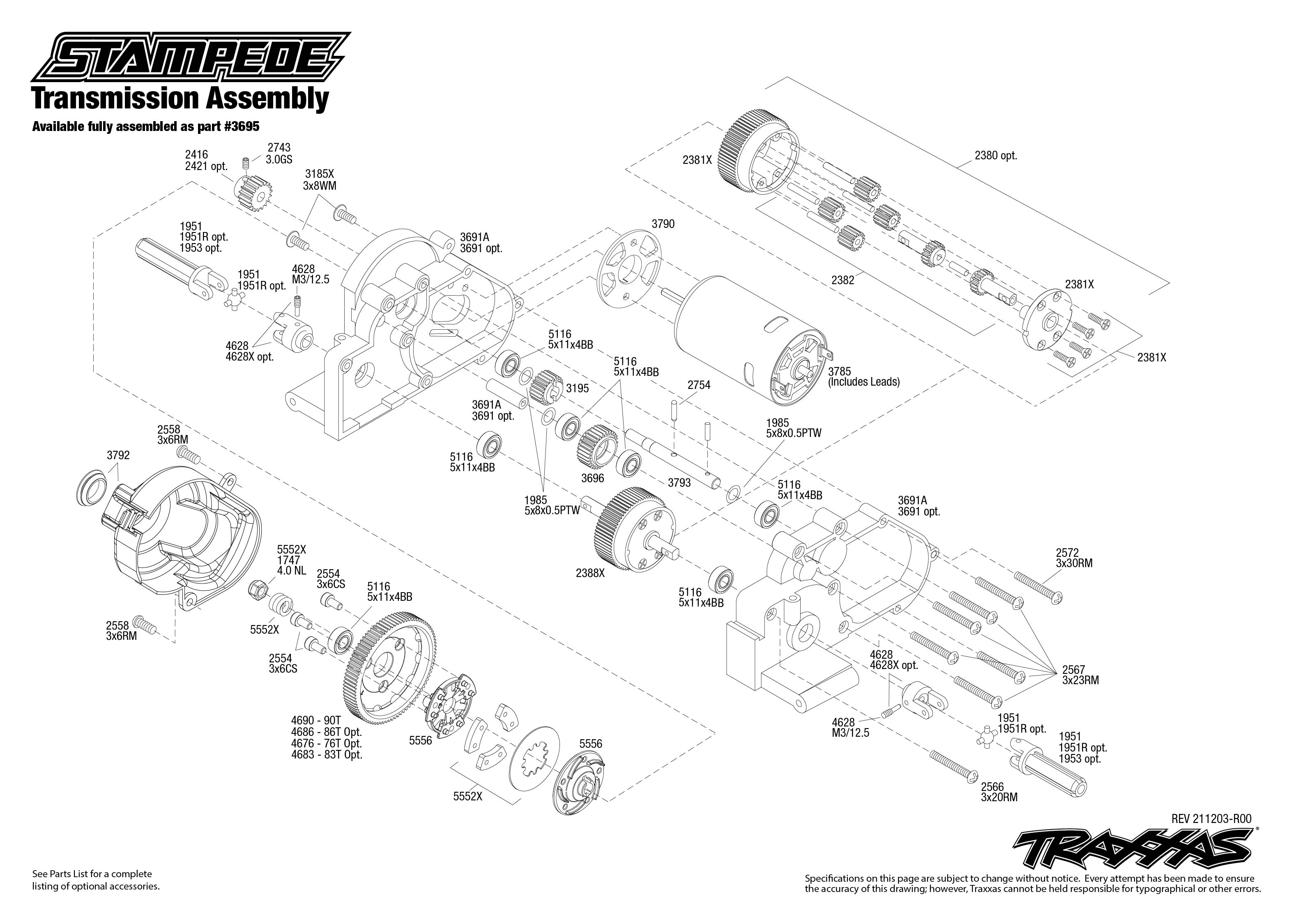

• Transmission: Magnum 272™
• Steering: Single Point
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Top Speed: 48+kph**
• Skill Level: 1
• Battery Tray Dimensions*: 164 x 46 x 26 mm
• Included Charger: 4-amp 12V DC Peak Detecting Fast Charger
• Included Batteries: Traxxas 7-cell NiMH battery with iD®
• Required Batteries: 4 "AA" (transmitter)

*Battery expansion kit is available (#3725X)
**With 7-cell battery and included optional 21-tooth pinion gear



XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 x 55 x 15.5 mm
• Motor Limit: 15-turns** (540 Size) / 12-turns** (550 Size)
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge
• Input Harness Wire: 26 Gauge
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode*: 50% FWD, 100% brakes, 50% REV

*Patented
**Properly Geared
