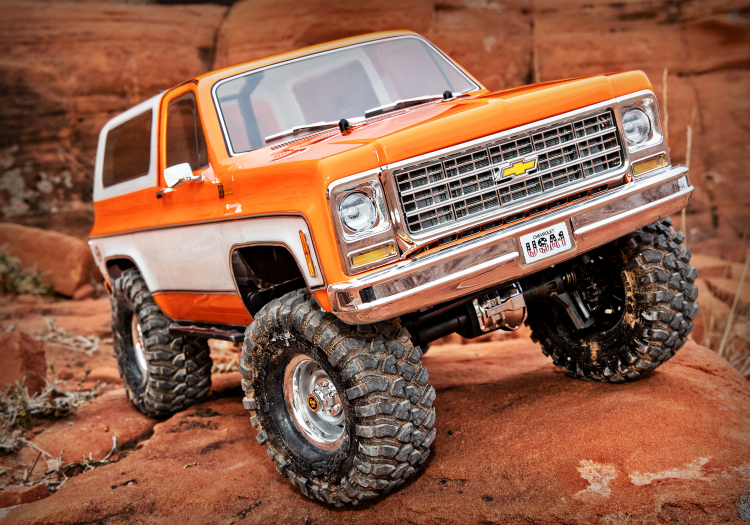

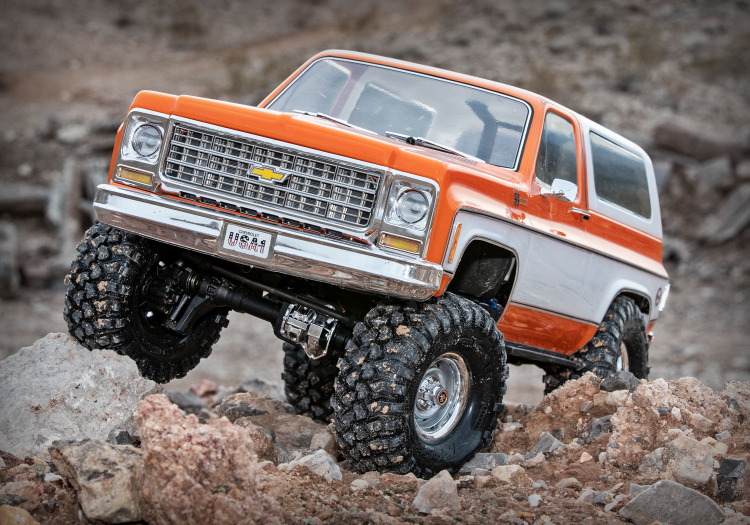

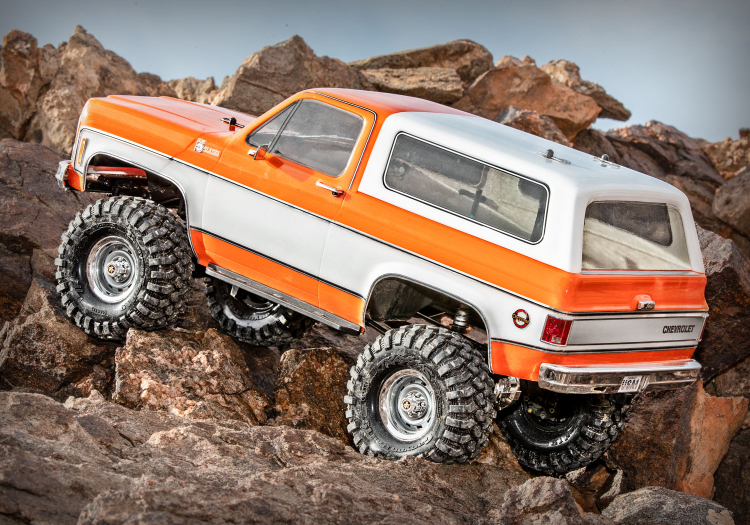

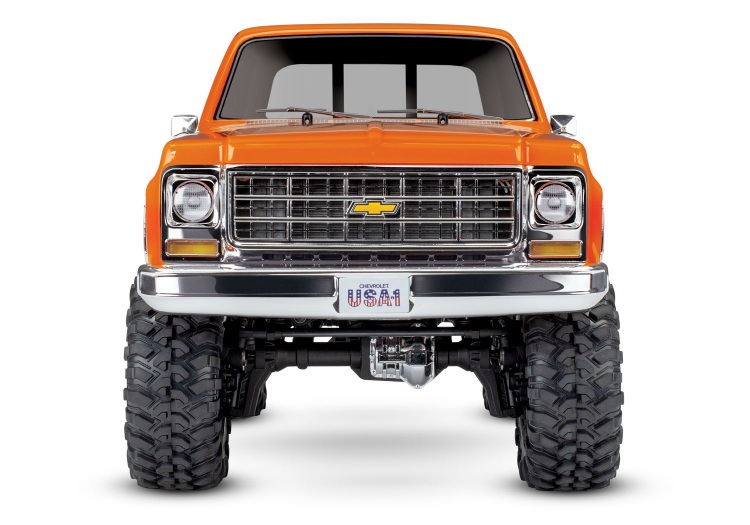

TRX-4 Chevy Blazer 1/10 Orange RTR *

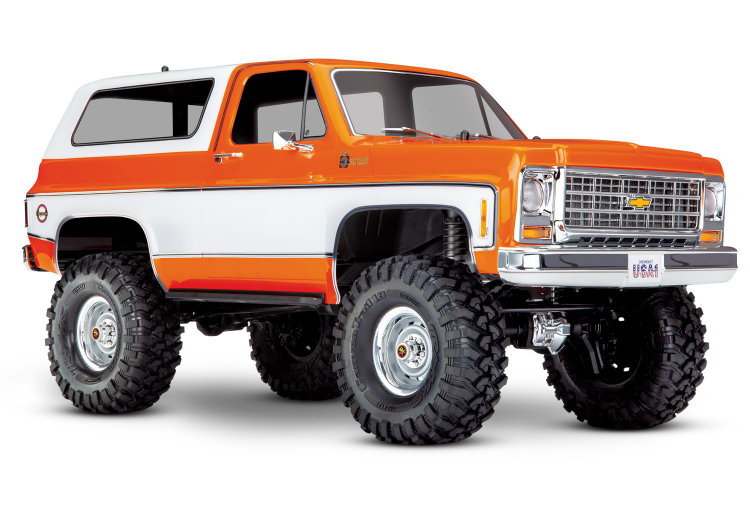

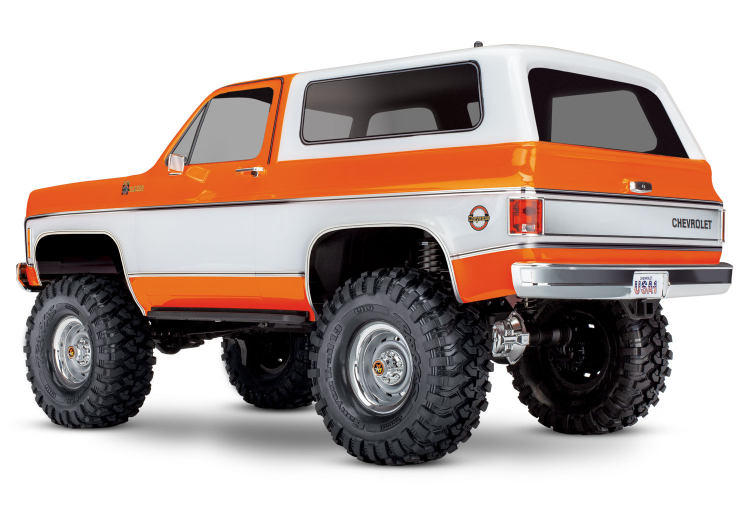

TRX-4 Chevy Blazer Scale & Trail Crawler - Orange

• Length: 524mm
• Width: 249mm
• Ground Clearance: 80mm
• Weight: 2.84kg
• Height (overall): 255mm

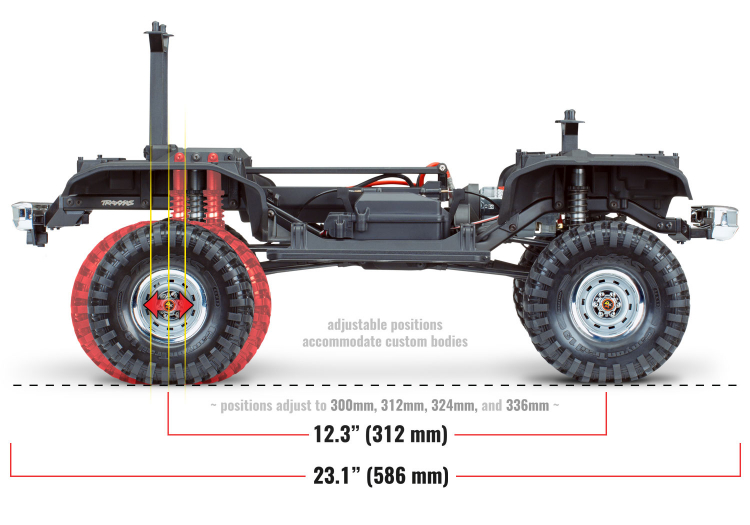

• Wheelbase: 312mm
• Approach Angle: 59°
• Departure Angle: 47°
• Breakover Angle: 59°

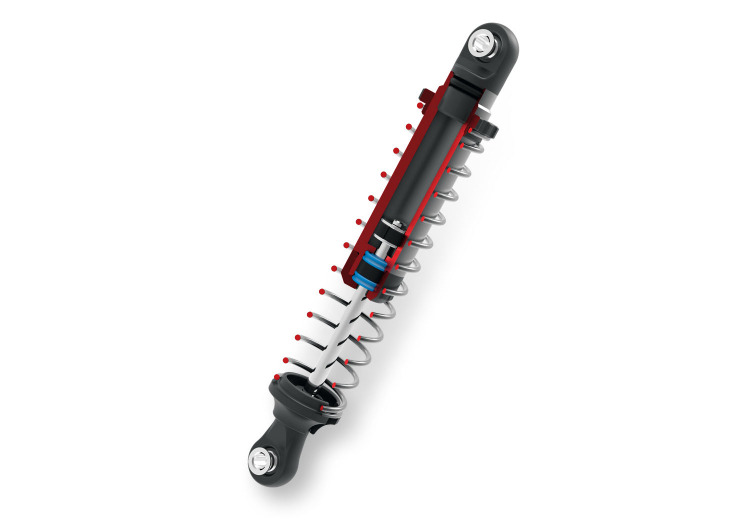

• Shock Length: 90mm
• Wheels: 1.9 x 1.02" (49 x 26mm)

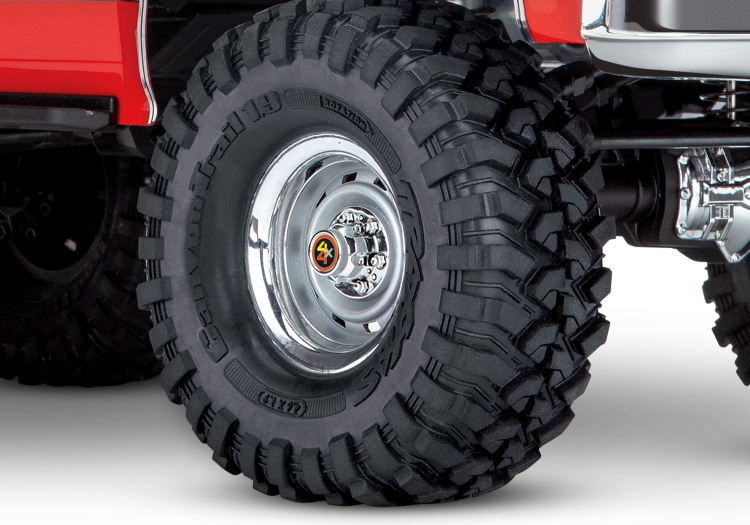

• Tires: 4.64 x 1.89" (118 x 48mm)
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation

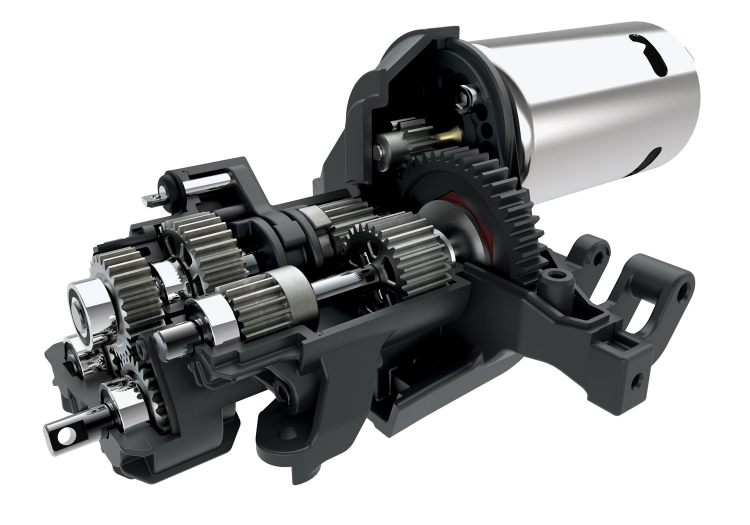

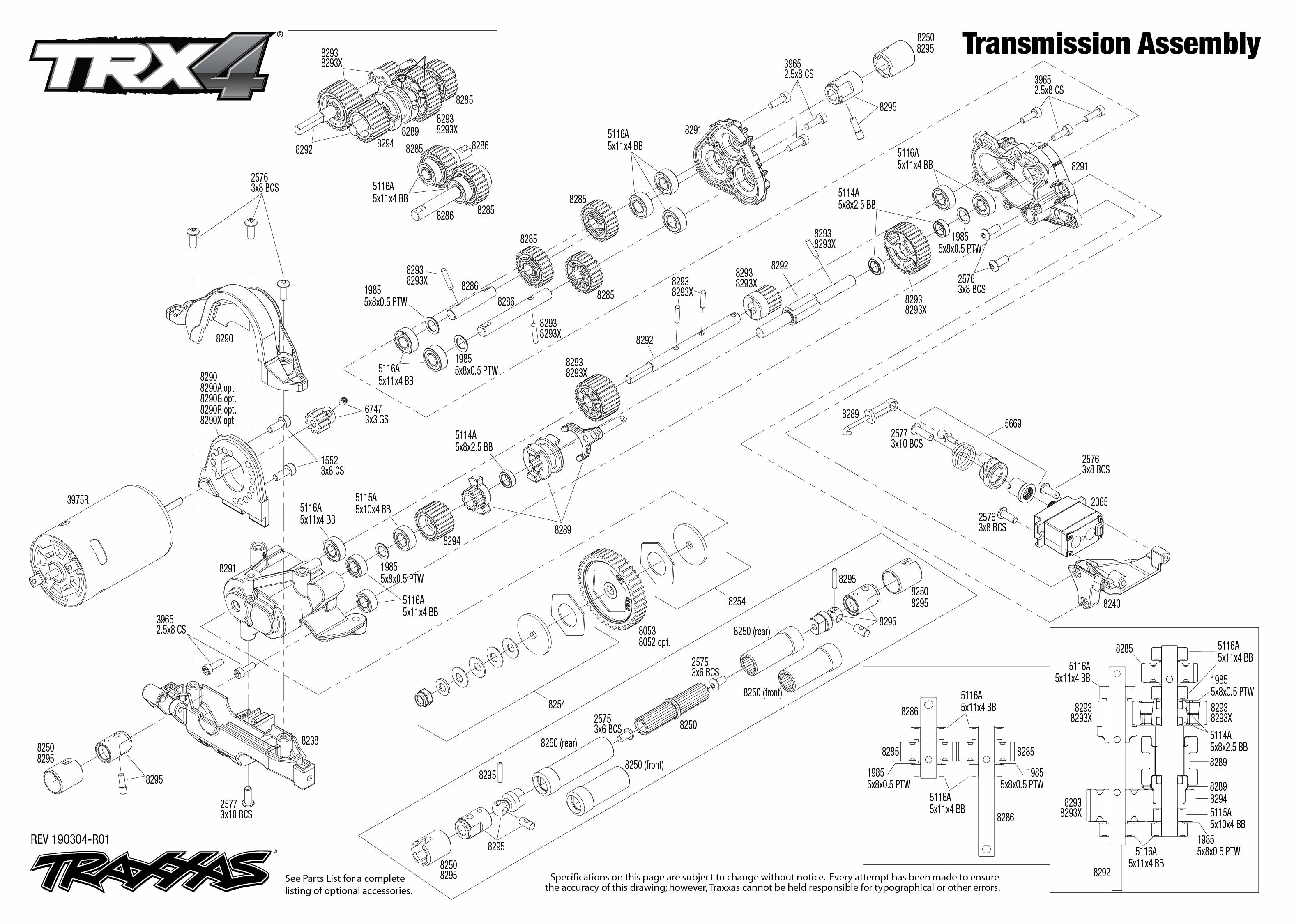

• Transmission: 2-speed Hi-Lo, Remote Shifting
• Gear Pitch: 32P

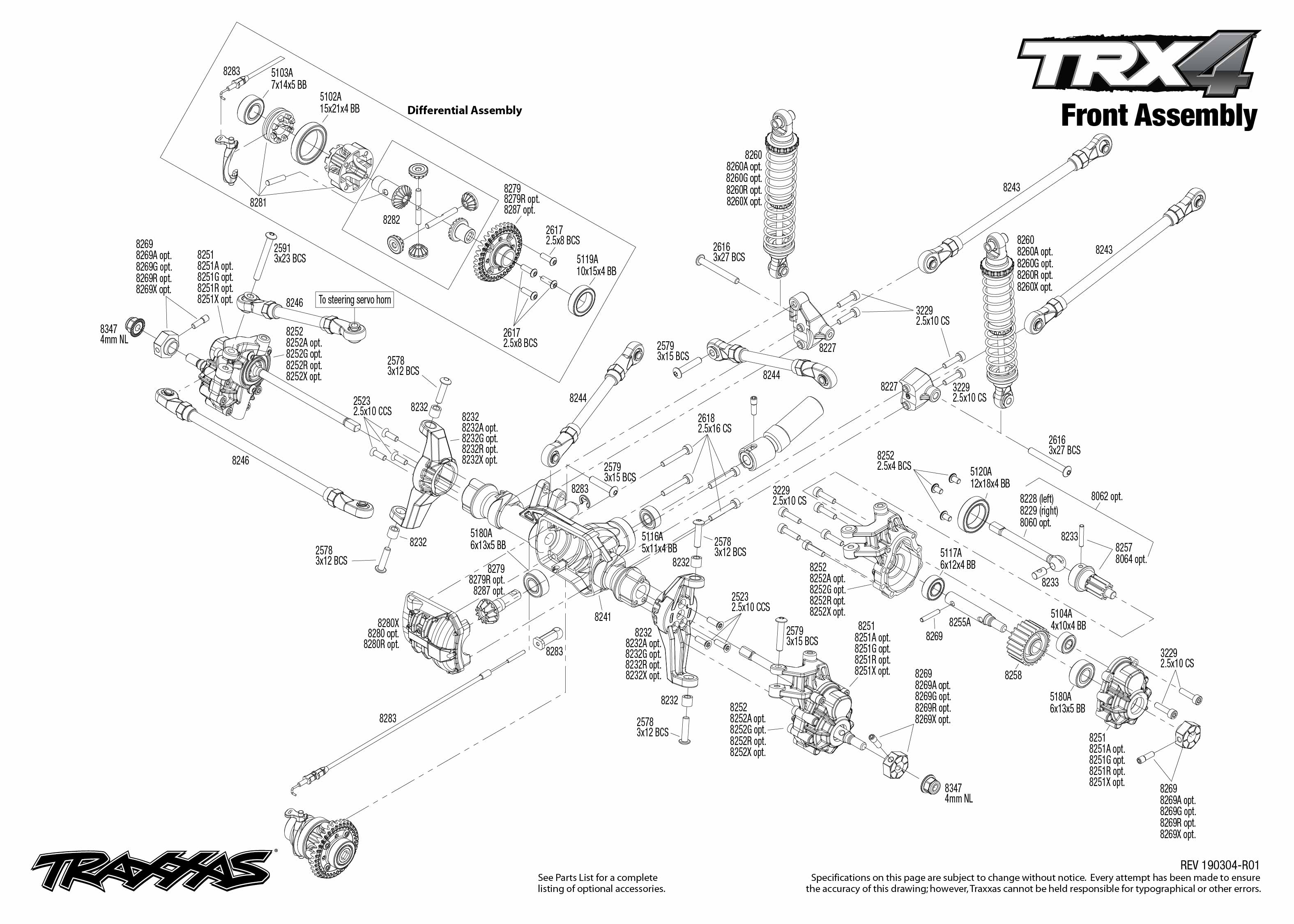

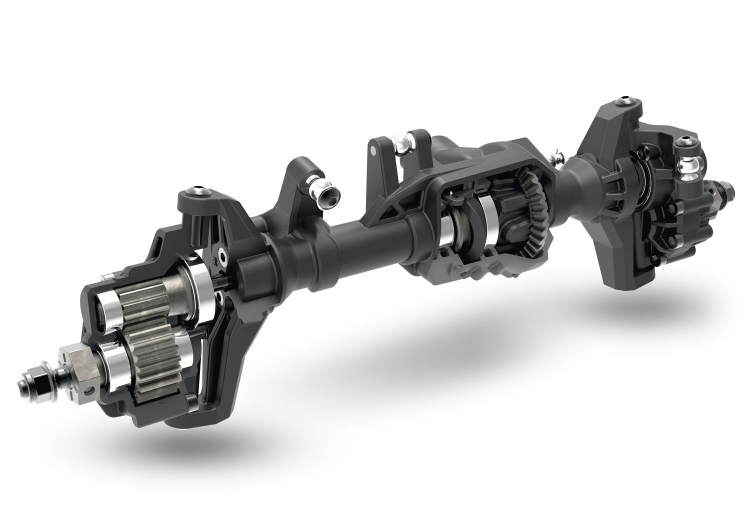

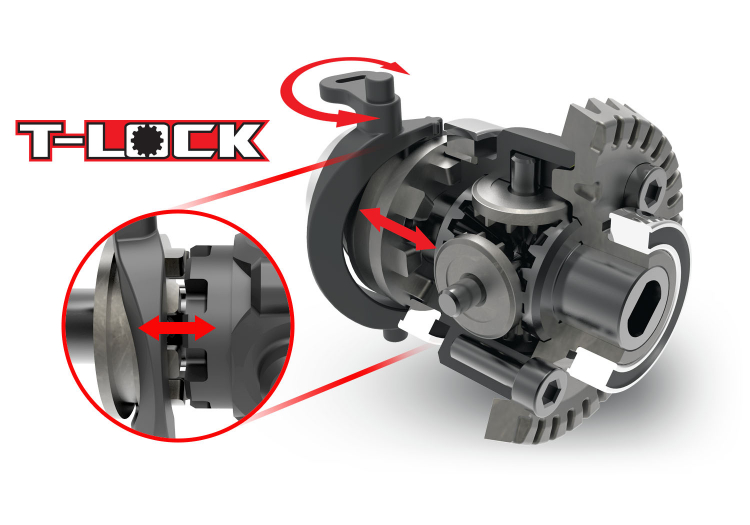

• Differential Type: 4 Gear, Remote Locking

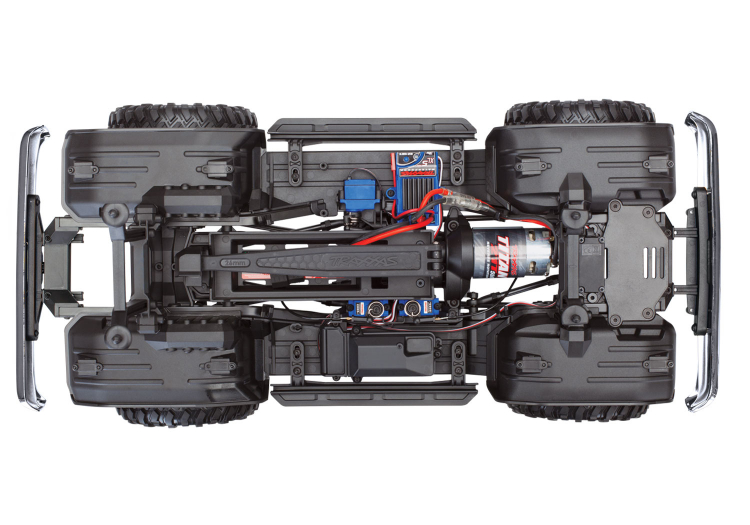

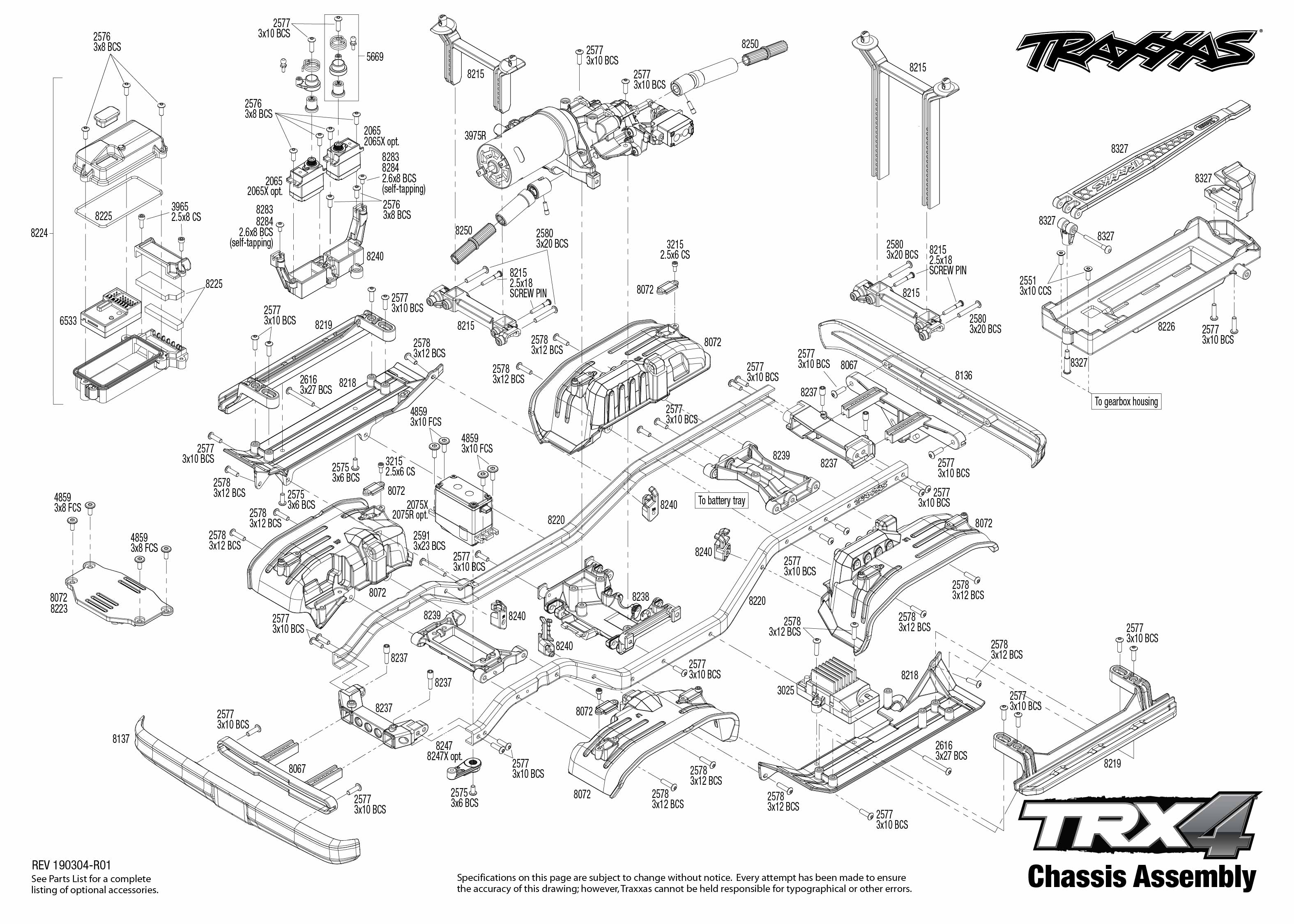

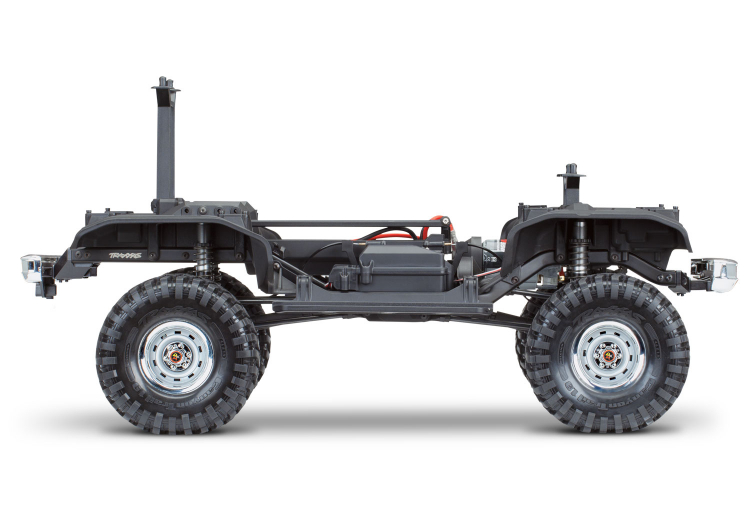

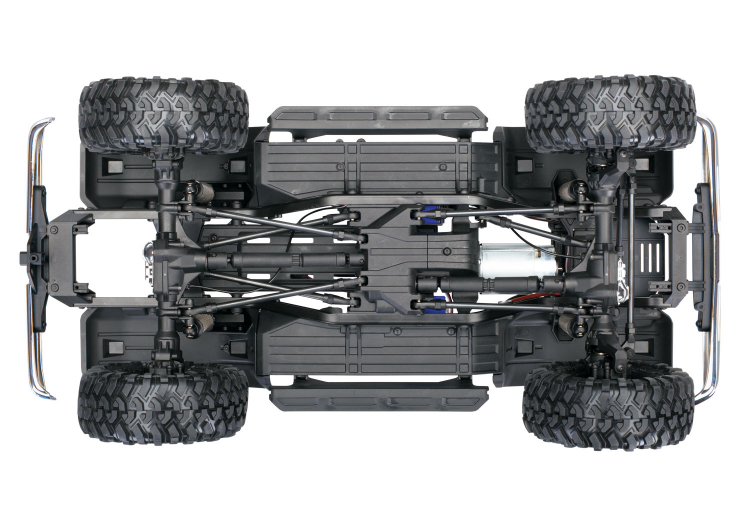

• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD

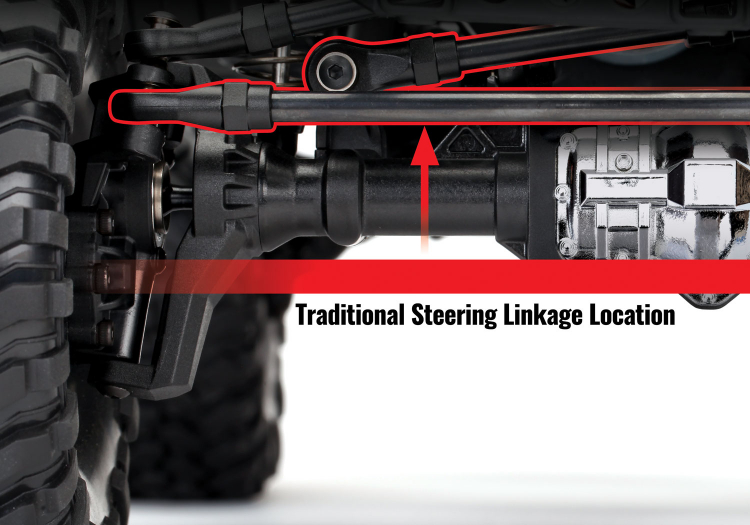

• Steering: Chassis Mounted Servo

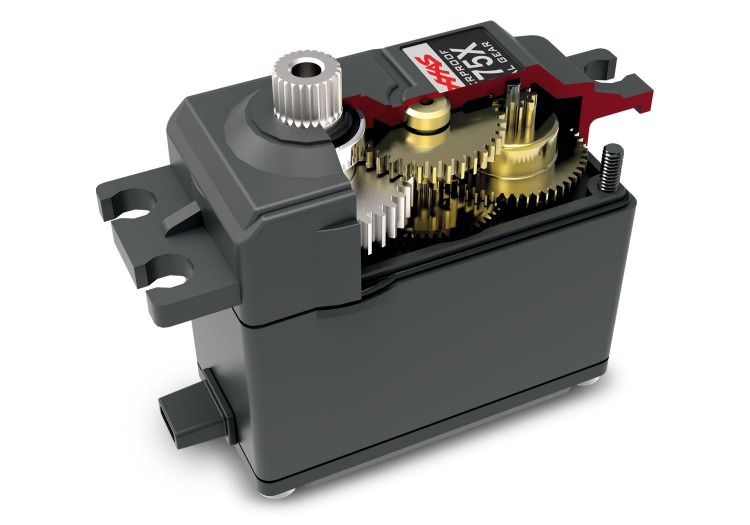

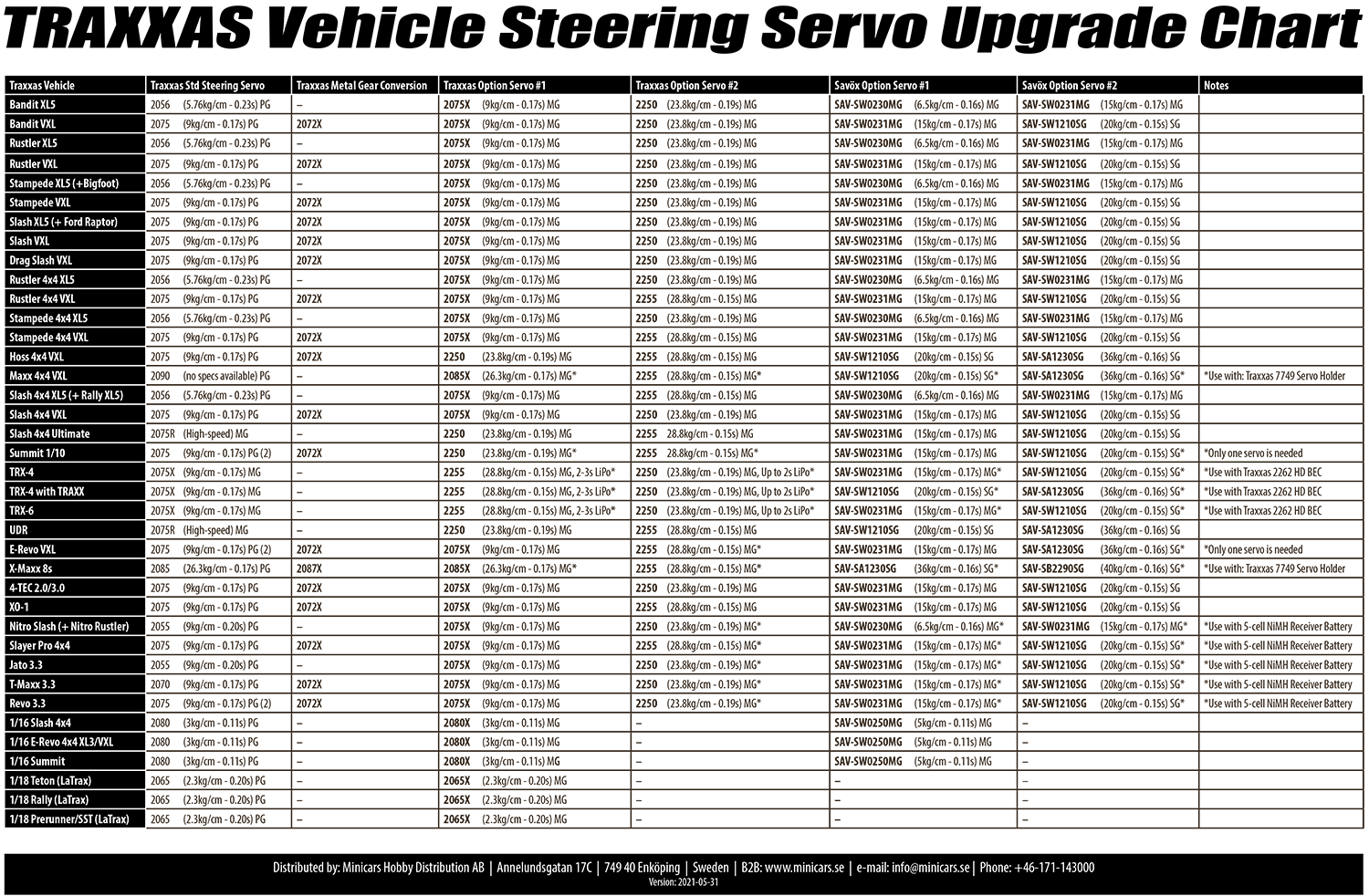

• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 2
• Battery Tray: L158.75 x W47 x H23/26mm

• Type: High-torque brushed motor
• Size: 550
• Weight: 390g
• Length: 78mm overall length, 57mm can length, 38.9mm diameter
• Turns: 21T reverse rotation
• Voltage: 16.8V

• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
• Motor Limit: 21-turns (550 size)
• Peak Current - Forward: 100A
• Peak Current - Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
