CASTLE CREATIONS

Hydra Cobra 5 HV 12S 50,4V ESC 20A Peak BEC

Average rating 0 out of 5 Number of ratings 0
Article nr: CC010-0183-00
Stock availability:
0 pcs
Delivery: Out of stock
Next delivery:
Retail price: 5413 kr
Product description

Hydra Cobra 5 HV 12S ESC (010-0183-00)

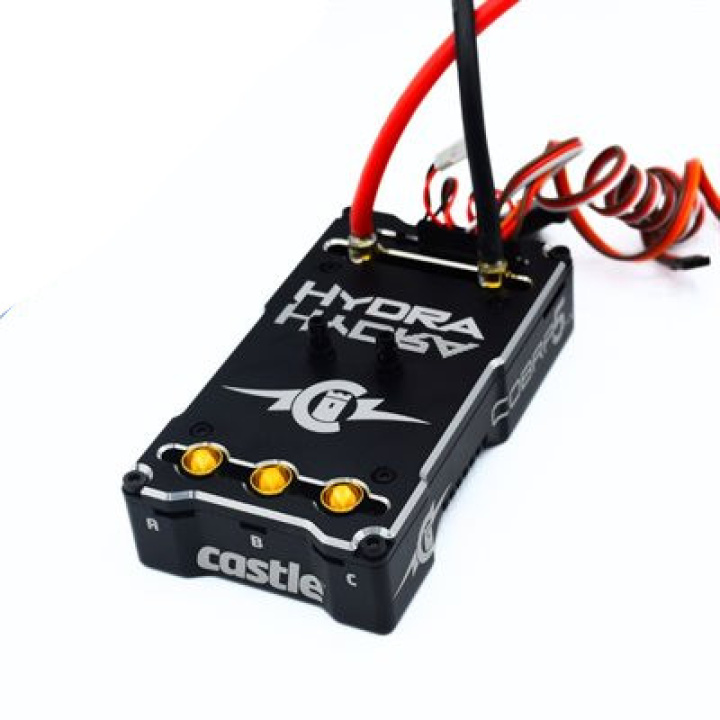

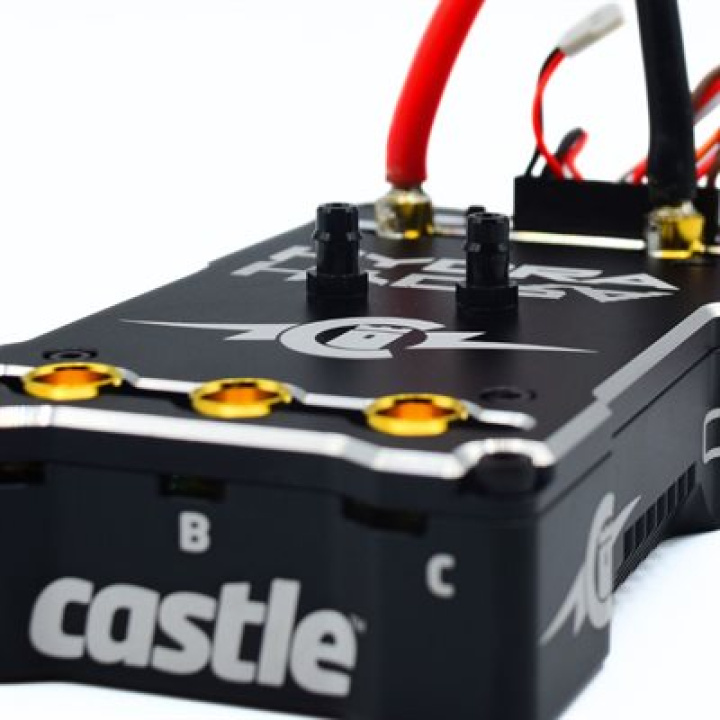

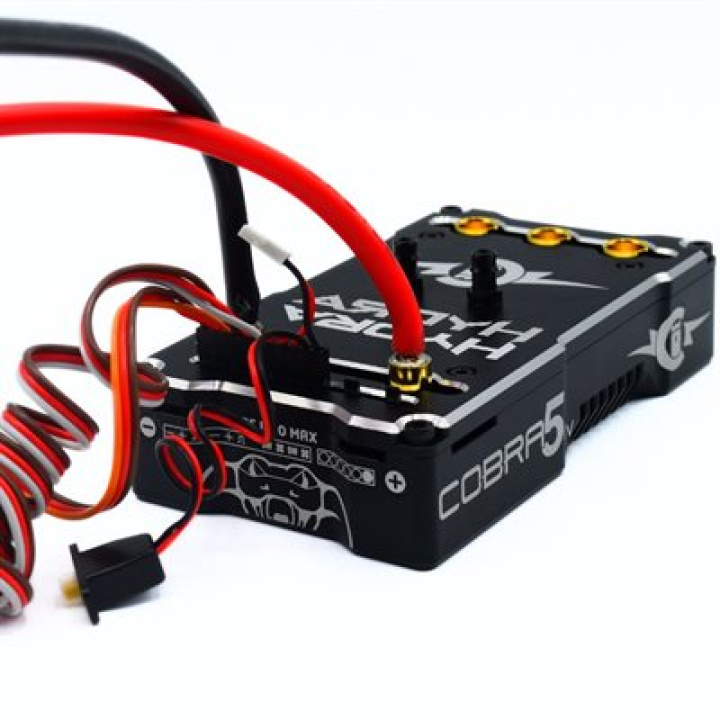

The Hydra Cobra 5 HV is a high-voltage marine electronic speed controller (ESC) tailored for 12S LiPo systems (50.4 V). It builds on the robust Cobra 5 HV architecture but adds water-cooling features and marine-grade protection, making it ideal for high-performance RC boats operating under extreme conditions.

Key Features

  • Compatible with up to 12S LiPo (50.4 V) input

  • 20A peak BEC with adjustable output (5.0–8.5 V in 0.1 V steps)

  • Advanced 32-bit processing for smoother motor control and fast responsiveness

  • Enhanced data logging: high sampling rate, long recording time, motor timing & acceleration data

  • Water-jacket cooling integration for efficient thermal management in aquatic environments

  • Rugged, waterproof build with CNC aluminum case and epoxy potting

  • CRYO-DRIVE™ technology to reduce heat buildup under partial throttle

  • On-the-fly tuning via auxiliary wire capability

  • Firmware upgradeable and fully tunable via Castle Link software

Technical Specifications

  • Dimensions: compact marine format (approximate to Hydra family)

  • Weight: designed to balance performance and durability

  • Motor connectors: high-current bullet interface

  • Cooling interface: water jacket connections typical for marine systems

  • Mounting: bottom-mounted holes

Applications & Usage

  • Ideal for large RC boats requiring sustained power at high voltage

  • Best matched with motors rated for high voltage (e.g. compatible with Hydra or Cobra series motors)

  • Use connectors rated for 150+ A to handle current demands

  • Rinse with fresh water after salt or dirty water exposure; remove fan or sensitive parts before full submersion

  • Monitor ECU and motor temperatures via logs to prevent thermal issues

Features
Country of origin: US
