QuicRun Combo WP 8BL150 G2 - 4274SL 2000kV G2 Sensorless

Average rating 0 out of 5 Number of ratings 0
Article nr: HW38030401
Stock availability:
9 pcs
Delivery: 1-2 working days
Next delivery:
Retail price: 1755 kr
Product description

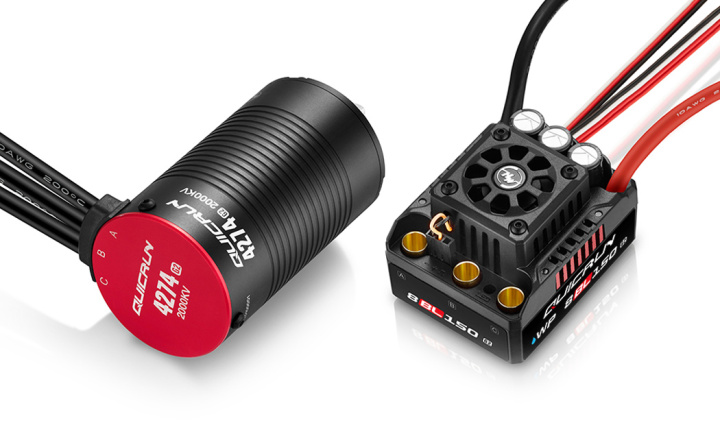

Hobbywing 38030401 - QuicRun Combo WP 8BL150 G2 - 4274SL 2000kV G2 Sensorless


QuicRun WP 8BL150 G2 3-6S ESC - HW30109003

Features
  • Waterproof/dustproof design for all-weather running
  • 3–6S LiPo support for 1/8 buggies, truggies and MTs
  • 150 A continuous output for strong acceleration and stable braking
  • High-current switch-mode BEC with HV-servo support (6.0/7.4 V selectable)
  • Adjustable punch, brake strength, drag brake, timing, and PWM/brake frequency
  • Protection suite: low-voltage cutoff, over-temperature, overload and signal loss
  • External on/off switch with protective cap; cooling fan included
  • Compatible with LED Program Card / Program Box for easy tuning

Specs:

  • Type: Brushless, sensorless, IP67 ESC
  • Cont./Peak Current: 150A/950A
  • Input Voltage: 3-6S LiPo
  • BEC Output: Switch Mode 6V/7.4V @ 6A
  • Input Wires: 10AWG-150MM
  • Output Connectors: 6.5mm Gold (female)
  • Input Connector: No
  • Size: 60x48x40.4mm
  • Weight: 169.5g
  • Firmware Upgrade: Not Supported
  • Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
  • Vehicles: 1/8 Trucks & Monster Trucks
  • KV Rating/T Count: With 4S Lipo: KV ≤ 3000 - With 6S Lipo: KV ≤ 2400 4274 size motor
QuicRun 4274SL 2000kV G2 Brushless Sensorless Motor - HW30404700

Specs:
  • Type: 1/8, brushless, sensorless ESC
  • Pole Count: 4
  • KV Rating: 2000
  • LiPo Cells: 3-6S
  • No-load Current(A): 5.9A
  • O.D.: 42mm
  • Length: 74.9mm
  • Shaft Diameter: 5mm
  • Connectors: 6.5mm Male
  • Wire: 10AWG-200MM
  • Weight: 477g
  • Front Bearing: D16xD5xT5mm
  • Rear Bearing: D13xD5xT4mm
Features
Country of origin: CN
