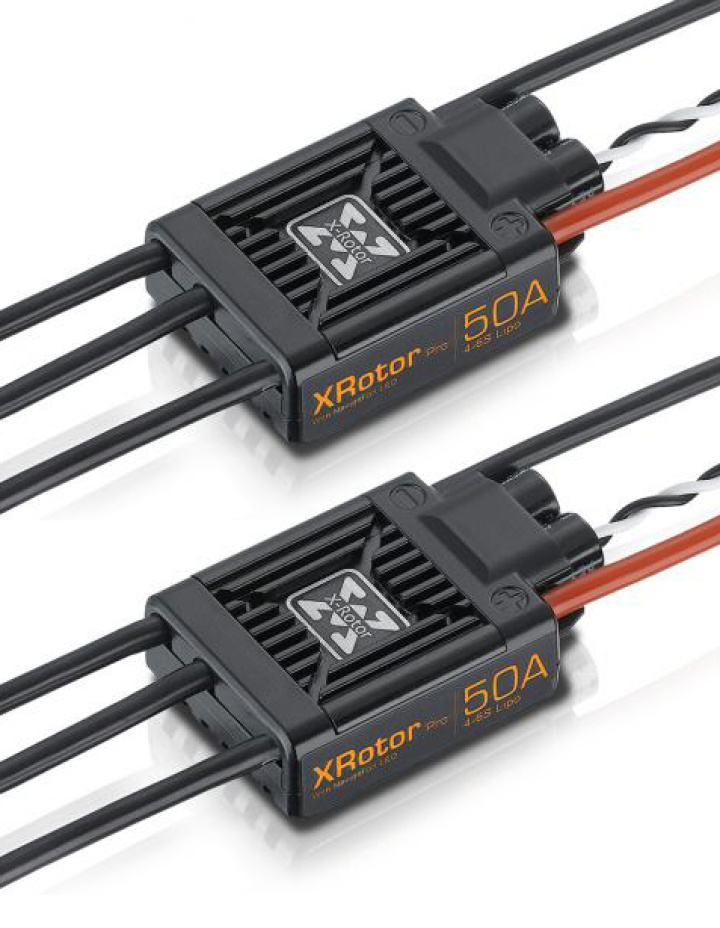

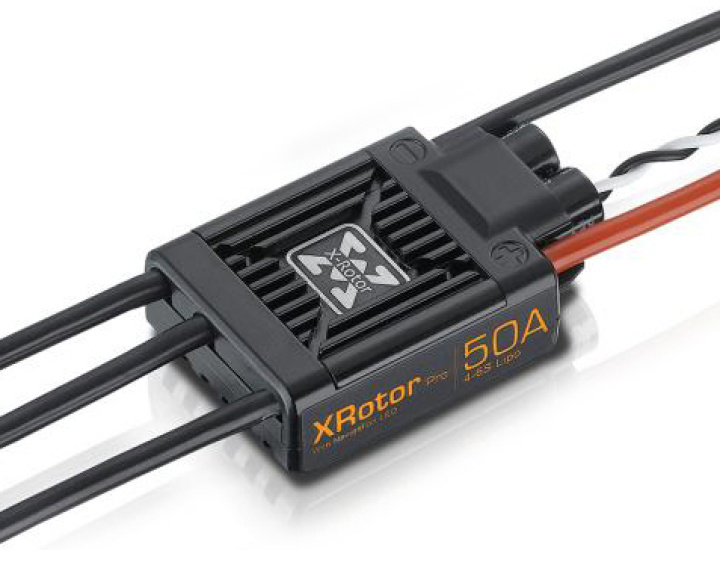

Hobbywing - HW30902052 XRotor Pro 50A ESC 4-6S 3.5mm Connectors Multirotor (2)
Rapid Throttle Response
The special core program adopted by this XRotor PRO 50A significantly improves ESC throttle response.
Easy to Use
Highly intelligent and adaptive default settings like auto-adjusting timing for ease of operation
Multiple Advantages (/DEO Technology)
The DEO (Driving Efficiency Optimization) technology implemented in the ESC has multiple advantages:
- Active braking. When reducing the throttle amount, the motor will decelerate very quickly. This feature enables pilots to more easily perform all maneuvers like sharp turns, altitude changes, and sudden braking.
- Higher driving efficiency, longer flight time.
- Lower ESC temperature and a more reliable operation.
Safer (Night) Flight
The two high-visibility Red/Green navigation LEDs position on the ESC save you the trouble of mounting any extra LEDs.
DIP-switch Design

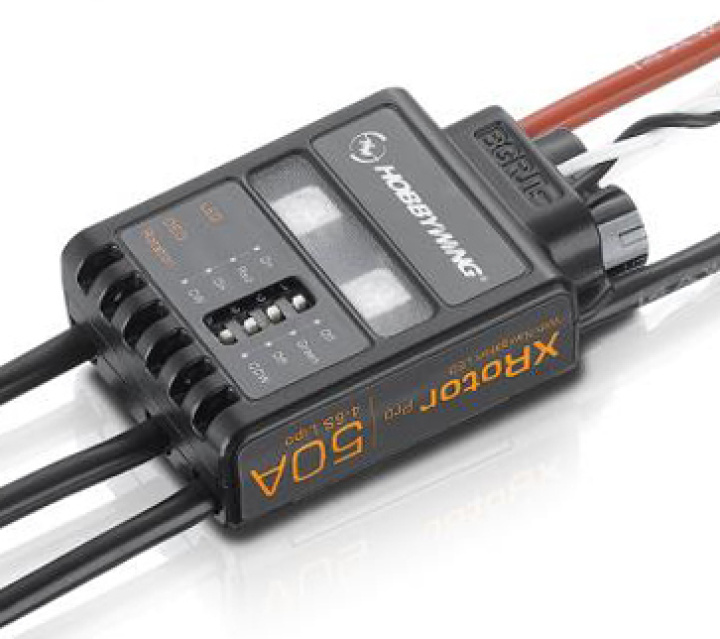

The DIP switches at the bottom of XRotor PRO 50A control the ON/OFF status and color (Red/Green) of LEDs, the ON/OFF status of DEO function and motor direction.
Specs:
- Cont./Peak Current: 50A/70A
- LiPo Cells: 4-6S
- BEC Output: No
- Input Wires: 14AWG-400mm
- Output Wires: 14AWG-75mm
- Input Connector: No
- Output Connectors: 3.5mm Gold Connectors (Female)
- Size: 48x30x15.5mm
- Weight: 56g
- Application: 650 Class Multirotors
- Throttle Range Calibration: Supported
- Stick Programming: Supported
- DEO: Supported
- OneShot Mode: Not Supported
- Timing: Supported
- Light Color: Supported
- Motor Rotation: Supported
