Product Info:

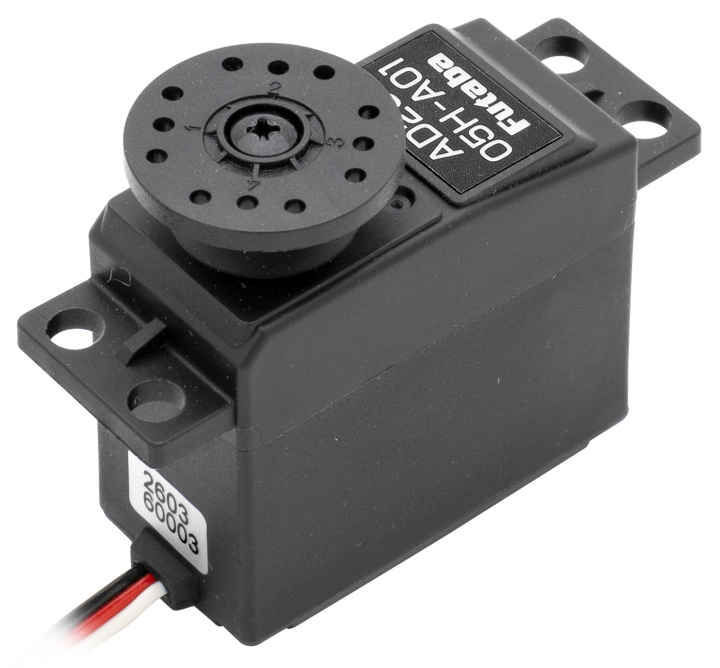

Futaba AD20-05H-A01 - Digital Servo
This is a general-purpose servo module compatible with Futaba's original S.BUS protocol. Using the CIU-3 (sold separately), you can change the default operating angle and set free and hold modes. It is recommended for applications requiring frequent replacement or for low-cost solutions.Specs:
- Model name: AD20-05H-A01
- Rated voltage: 6.0V
- Rated torque: 4.1kg/cm @6V
- Speed at 6.0V: 0.19s/60°
- Dustproof/waterproof structure: IP40
- Case material Upper: Resin
- Case material Middle: Resin
- Case material Bottom: Resin
- Gear material 1st: Resin
- Gear material 2nd: Resin
- Gear material 3rd: Resin
- Gear material Final: Resin
- Connection cable: Fixed unshielded cable
- Cable lengt: 300mm
- Connector part: 3-pin connector
- Dimensions (W×L×H: 40.5 × 20.0 × 36.1mm
- Control and communication standards: PWM / S.BUS / S.BUS2
- Operating temperature: -20 to +60°C
- Weight: 36g
Control and Communication Standards
- Designed for connection to Futaba RC receivers and various other controllers, this product supports the following standards:
- PWM: PWM signal used in conventional hobby RC servos
- S.BUS: Futaba's proprietary serial communication protocol for hobby RC servos
- Each communication format cannot be used simultaneously.
