CASTLE 15XX SERIES SENSORED MOTOR ENDBELL REPLACEMENT KIT

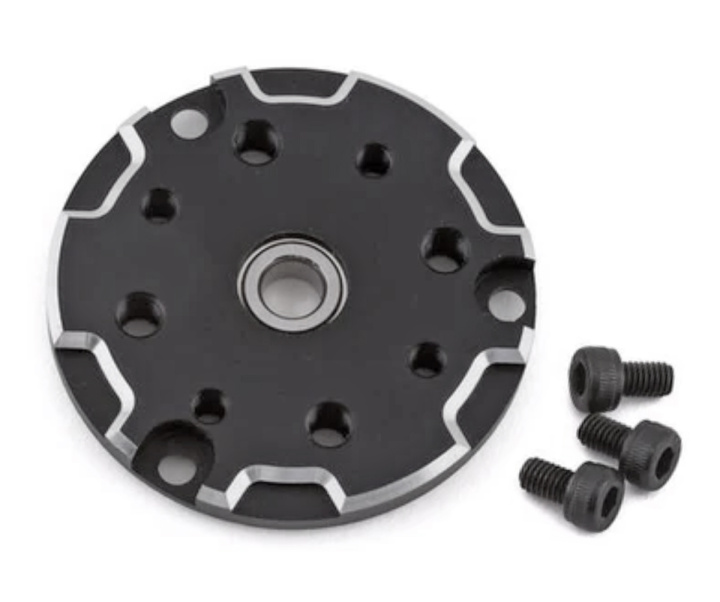

PACKAGE CONTAINS:
- Front Endbell with Ball Bearing
- Endbell Screws M3 x 5mm (Qty. 3)
- Remove front endbell screws using a 2.5mm hex key.
- Pull damaged endbell away, keeping shaft and endbell concentric. Rotating endbell may help break it free.
- Replace with the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must force the rotor back to the center.
- Apply removable threadlocker to threads of the new screws and torque until snug.
