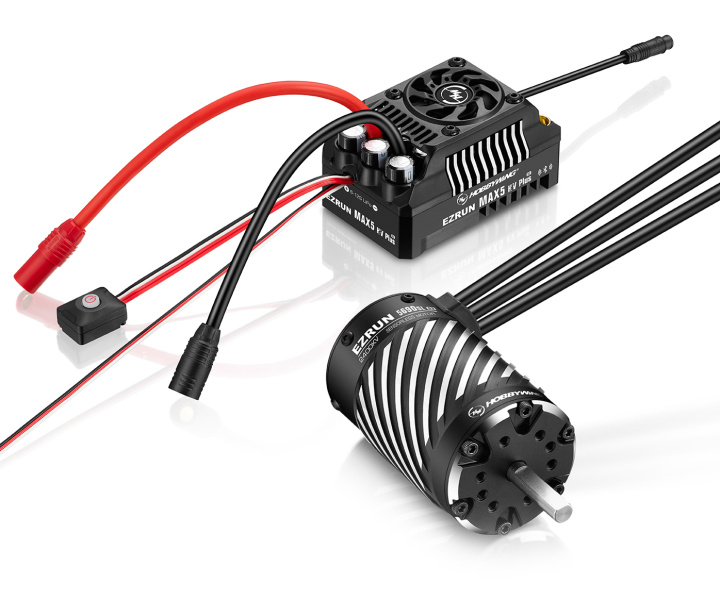

Hobbywing EZRUN MAX5 HV G2 Plus - Brushless ESC & 5690SL 2400KV Motor Combo - 6-8S LiPo
Intelligent Freewheeling, Low Temperature Rise and High Reliability
The advanced freewheeling technology increases driving efficiency and reduces operating temperatures. The high-power design also enhances the ESC's stability and reliability.
Built-in Bluetooth for Direct Connectivity to the Mobile APP
The ESC comes with a built-in Bluetooth module. It allows users to connect directly to a mobile app to adjust settings, check data, and update firmware with ease.
Built-in Data Logging Function, Obtain Operation Status with Ease
The ESC has a built-in data recording module that stores up to 10 minutes of recent data. With the mobile app, you can view curve graphs and historical records to easily monitor and understand your ESC and motor performance.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!
Applicable to All Weather Conditions
The ESC has an IP67 protection rating, offering excellent waterproof and dustproof performance to handle different weather conditions and tough environments with ease.
Note: The IP67 protection level indicates the ESC is splashproof, water-resistant, and dustproof under normal use. It has been tested under controlled laboratory conditions in accordance with GB/T 4208-2017 (China) and IEC 60529 (International) standards. However, these protective features are not permanent and may diminish over time due to aging. Avoid prolonged submersion in water, as it may damage the product.
ESC Specs:
- Type: 1/5, 1/7 & b1/8 - Brushless, Sensorless/Sensored, WP ESC
- Cont./Peak Current: 330A/2000A
- Input Voltage: 6-12S LiPo (6-8S in this combo)
- BEC Output: 6V/7.4V/8.4V adjustable, continuous current 8A (Switch-mode)
- Input Wires: 8AWG-200mm
- Input Connectors: No
- Input Connectors: AS150-F Plug
- Output Connectors: 8mm Gold Female
- Firmware Upgrade: Supported
- Size: 94.5x59.4x51.6mm
- Weight: 450g (Included input wires)
ESC Applications:
- Motors: EZRUN 5690/56118 size motors
- Vehicles: 1/8 & 1/7 models for high-speed runs & 1/5 trucks
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- OTA Programmer: Supported
- Program Port: Independent programming port
Data Recording:
- Extreme value: Supported
- Real-time Data: Supported
- Built-in Historical Data (Graph): Supported
- External OTA Historical Data (Graph): Not Supported
Motor Specs:
- Type: Brushless, Sensorless Motor
- Poles: 4
- KV Rating: 2400KV
- LiPo Cells: 6-8S LiPo
- No-load Current: 16A
- O.D.: 56mm
- Length: 90.5mm
- Shaft Diameter: 8mm
- Weight: 885g
- Front Bearing: OD22 x ID8 x T7mm
- Rear Bearing: OD19 x ID8 x T6mm
- ESC: EZRUN MAX5 HV Plus G2
- Vehicles: 1/8 & 1/7 high speed run
