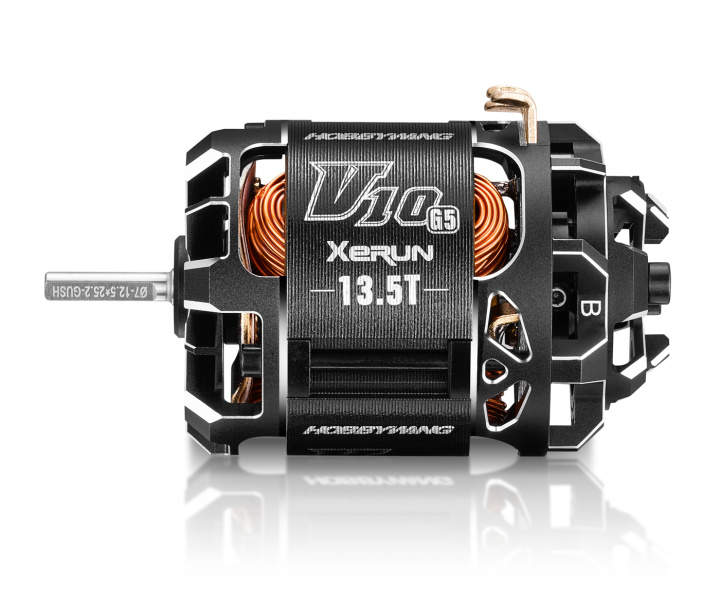

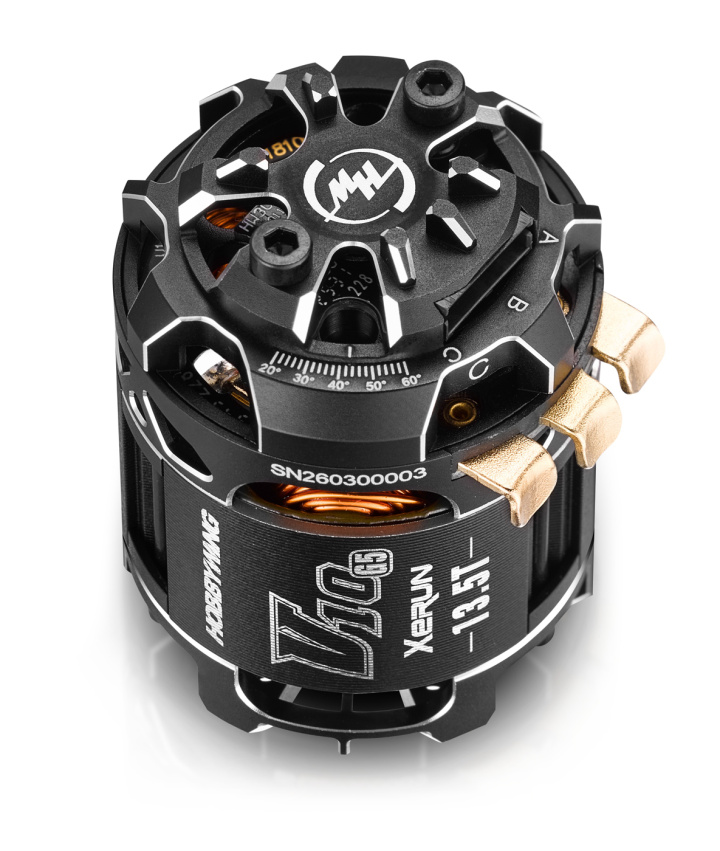

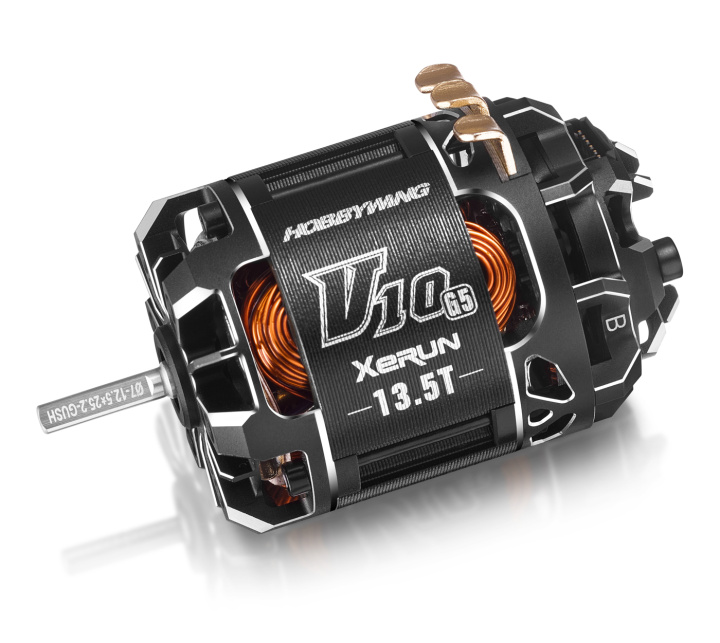

XeRun V10 G5 13.5T Sensored Brushless RC Racing Motor
Built to be More than Just Fast
Built from the ground up, the XeRun V10 G5 motor delivers more power and greater efficiency. It delivers a 3.9% boost in maximum output power and over 4% improvement in efficiency versus the V10 G4R 13.5T.
Maximum Output Power Maximum Output Power
Compared to the V10 G4R 13.5T motor, the maximum output power is improved by 3.9%.
Efficiency
Compared to the V10 G4R 13.5T motor, the heavy-load efficiency is improved by more than 4%.

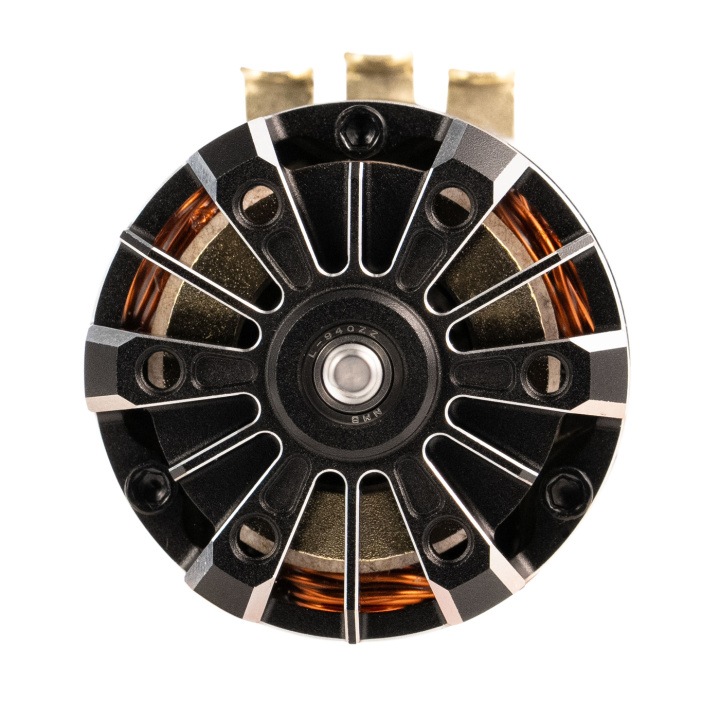

Excellent Heat Dissipation
Thermal efficiency has been improved to reduce overall temperatures and provided better consistency.
- New endbell design exposes more of the winding to allow better heat dissipation.
Optimized Weight and Center of Gravity
- Redesigned inside and out, the new-generation G5 motor is 13g lighter than the G4R.
- The G5 has been designed to move the weight towards the centerline of the vehicle.
One Layer Next-Level Performance

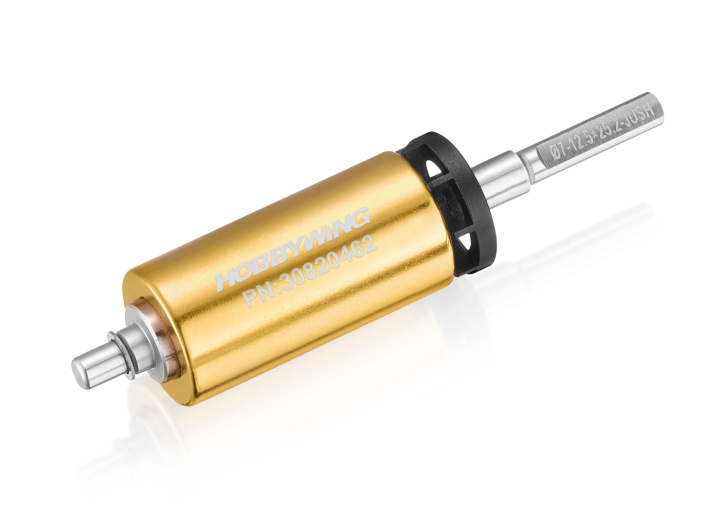

A special coating on the rotor surface delivers both corrosion protection and improved magnetic performance, enabling higher load capability and greater power output of the motor.

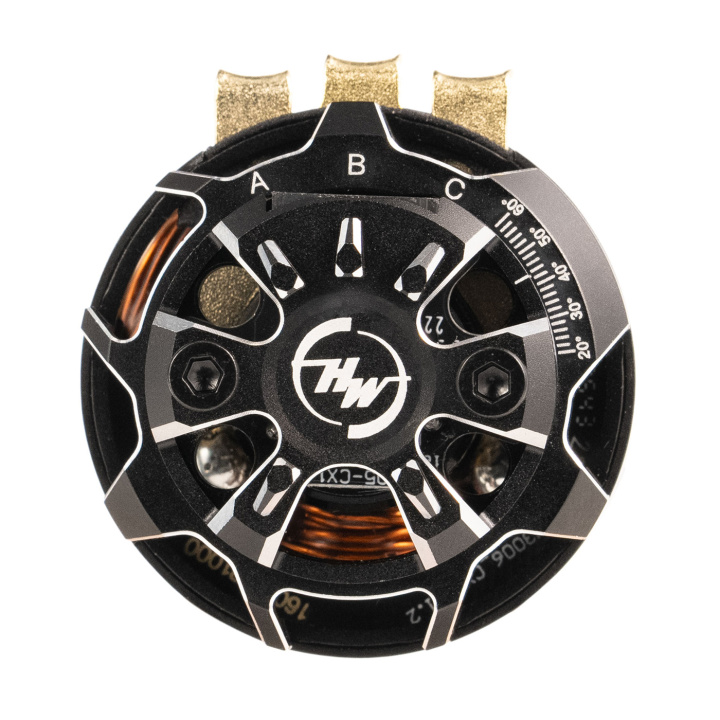

Adjustable Hall Timing Accuracy
The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustments means your motor will run smoother and be more efficient.
Note: The timing tolerance are based on results displayed by the HOBBYWING Tunalyzer.
Adjustable Hall Sensing Distance
Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.
Warning: Ensure proper clearance between the Hall sensor and rotor ring during adjustment to prevent component damage.

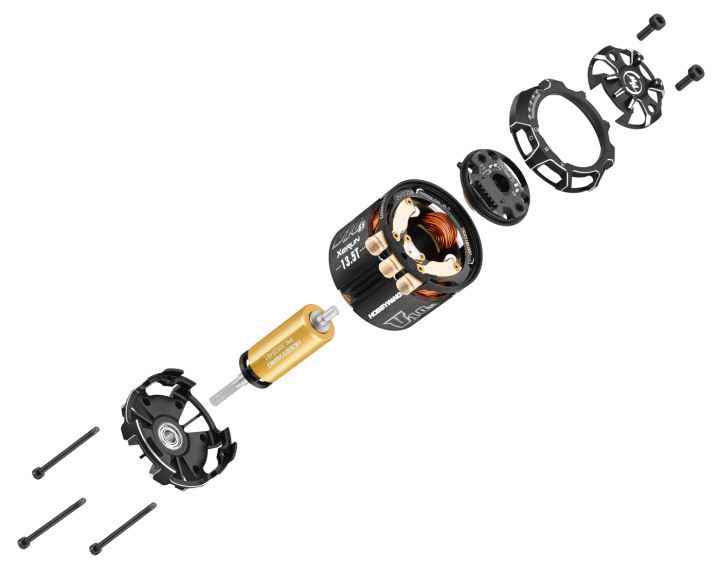

Designed for Easy Maintainence
Modular design allows for quick and simple motor cleaning to allow racers to keep their motors performing at their best.
Built with Superior Materials
The V10 G5 motor is built to excel in the harshest race conditions.
- High-performance Premium Stator Core
- 180°C High-temperature–rated Reinforced Rotor Design
- Top-tier Ball Bearings
Specs:
- KV Rating: 4050
- Battery: 1-3S
- Resistance: 0.0208Ω
- No load Current: 5.4A
- Poles: 2
- Diameter: 35.8mm
- Length: 51.5mm
- Shaft Dia: 3.175mm
- Shaft Length: 15mm
- Weight: 138g
- Stock Rotor: 7-12.5x25.2mm GUS
- Front Ball Bearing: D9xd4xT4mm
- Rear Ball Bearing: D8xd3xT4mm
- Applications: STOCK racing 1/10 & 1/12
