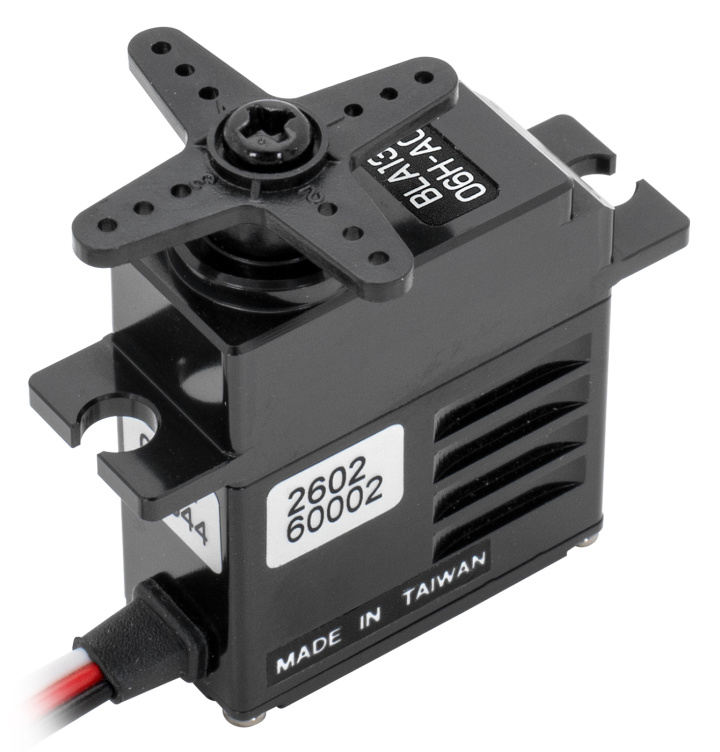

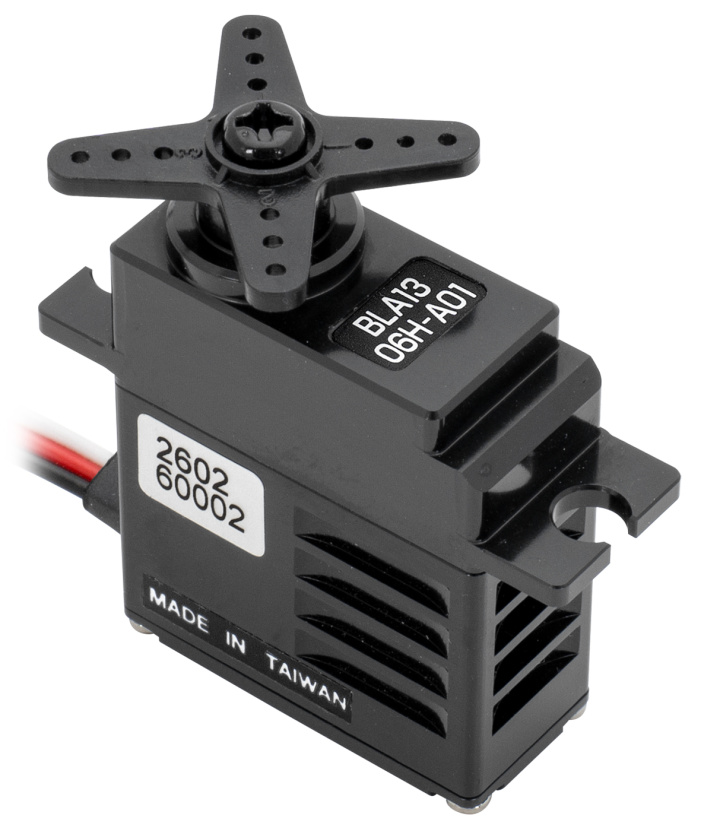

Futaba BLA13-06H-A01 - Industrial Brushless Miniservo
This product, featuring a full metal casing for improved heat dissipation, long lifespan, and high durability (non-contact potentiometer and brushless motor), is a compact actuator (servo module) intended for use in ailerons of unmanned aerial vehicles and robots. It is also compatible with Futaba's proprietary S.BUS/S.BUS2 system.
Specs:
- Model Name: BLA13-06H-A01
- Rated Voltage: 6-7.4V
- Operational Voltage: 4-8.4V
- Rated Torque: 0.16Nm / 1.7kg/cm @ 7.4V
- Maximum Torque (instantaneous): 0.80Nm / 8.3kg/cm @ 7.4V
- No-load rotational speed: 0.13s/60° @ 7.4V
- Case Material Upper: Aluminum
- Case Material Middle: Aluminum
- Case Material Bottom: Aluminum
- Gear Material 1st: Metal
- Gear Material 2nd: Metal
- Gear Material 3rd: Metal
- Gear Material Final: Metal
- Connection Cable: Fixed (unshielded)
- Cable Length: 150mm
- Connector: 3-pin connector
- Dimensions (W×L×H): 28.6 × 13.0 × 32.6mm
- Control and Communication Standards: PWM / S.BUS / S.BUS2
- Operating temperature: -30 to +70℃
- Weight: 35g
Control and Communication Standards
Designed for connection to Futaba RC receivers and various other controllers, this product supports the following standards:
- PWM: PWM signal used in conventional hobby RC servos
- S.BUS: Futaba's proprietary serial communication protocol for hobby RC servos
