FUTABA

DLPH-3 Dual RX Link Power Hub

Average rating 0 out of 5 Number of ratings 0
Article nr: FP05102759-3
Stock availability:
0 pcs
Delivery: Out of stock
Next delivery: 2025-12-19
Retail price: 1968 kr
Product description

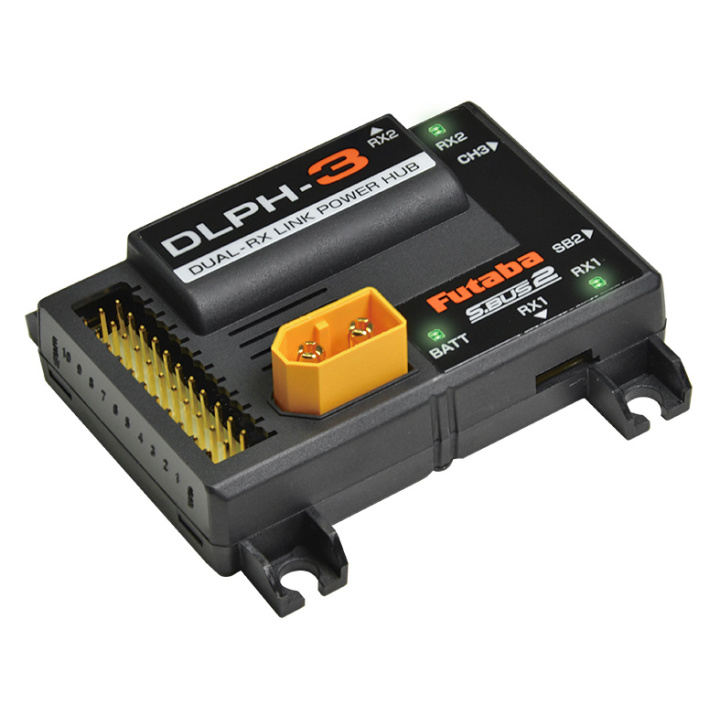

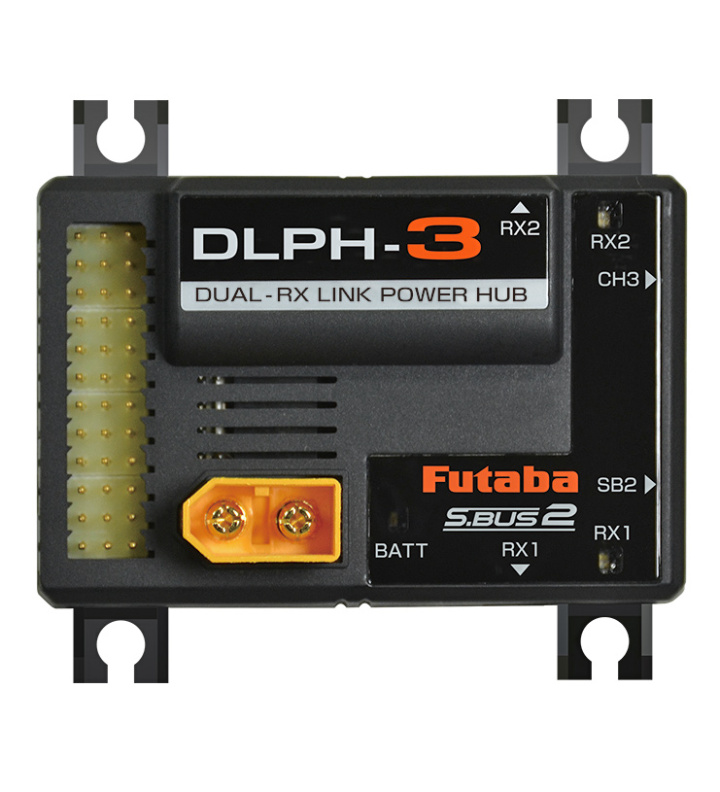

Futaba 05102759-3 - DLPH-3 Dual RX Link Power Hub

MAX60A! 10-Channel Dual RX Link Power Hub
Perfect for large aircraft with multiple servos! Supports single receiver mode, gyro mode, and FASSTest 26-channel support! The DLPH-3's compact design makes it easy to install in 50-70cc aircraft. Even in larger aircraft, using two units allows for split power supply, providing additional safety redundancy.

Product Features:
  • Connects to two receivers and batteries.
  • Electronic switch (current controlled by FET circuit).
  • Telemetry function displays power supply voltage.
  • Compatible with three battery types and includes protection when connecting different types of batteries.
  • Includes protection when the battery is low.

DLPH-3 Specifications:
  • Application: Dual-Receiver Switching Device (Dual Rx Link System)
  • FET (Rating): Continuous 60A
  • Dimensions: 43.6 x 66.0 x 19.3 mm
  • Weight: 34.6 g
  • Operating Voltage: 6.4 to 13.0 V (XT60 Connector)

Included accessories:
  • Switch, Receiver connection cables (3), Flange Damper, Eyelets & Wood Screws
Features
Country of origin: TW
Parts
Popular Accessories
Files/Downloads
File name Language Published
DLPH-3_Manual_EN.pdf EN 2025-09-29
