Black Horse Model
L-60 Brigadýr
Czech STOL classic with a powerful 2.67 m wingspan
Sport/ScaleARFPetrolElectricExperienced

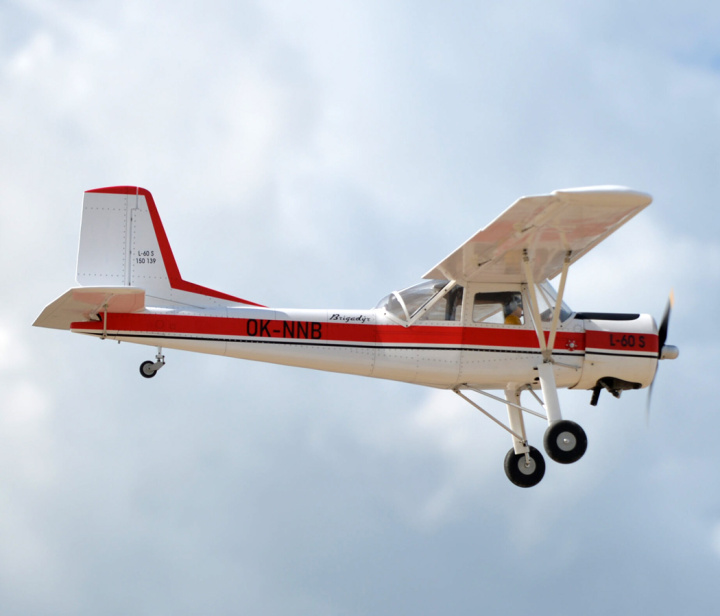

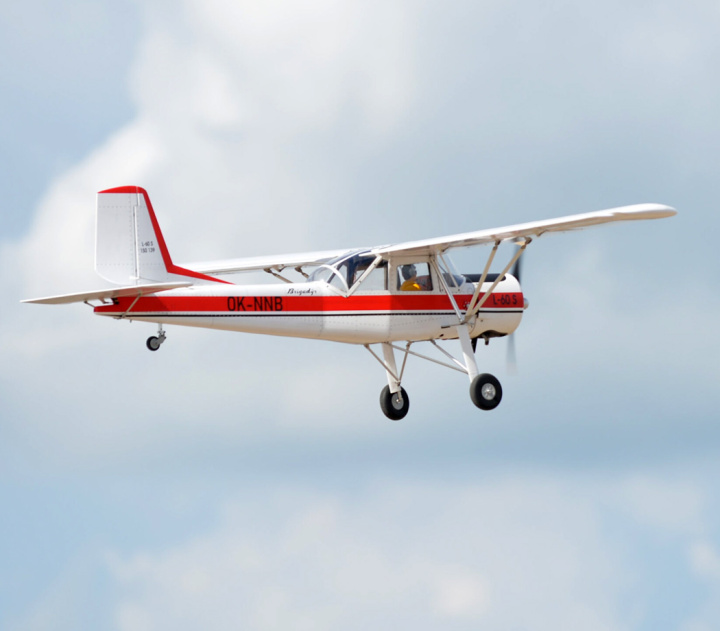

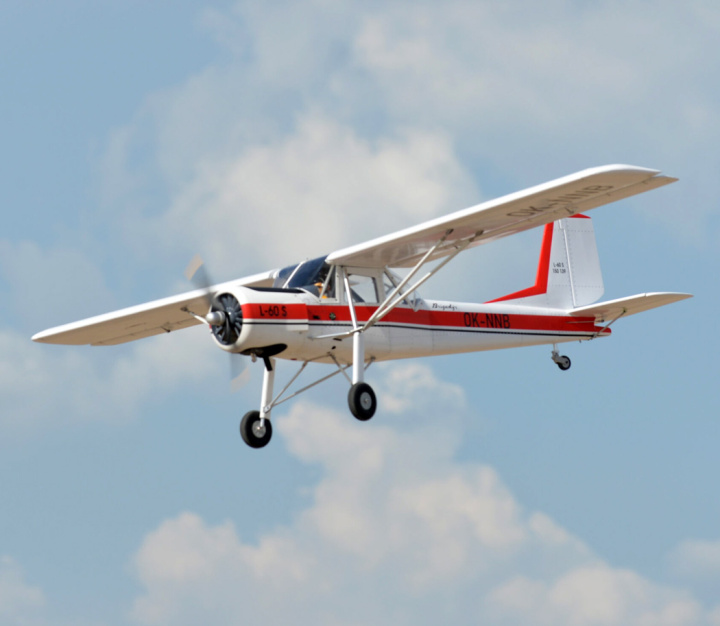

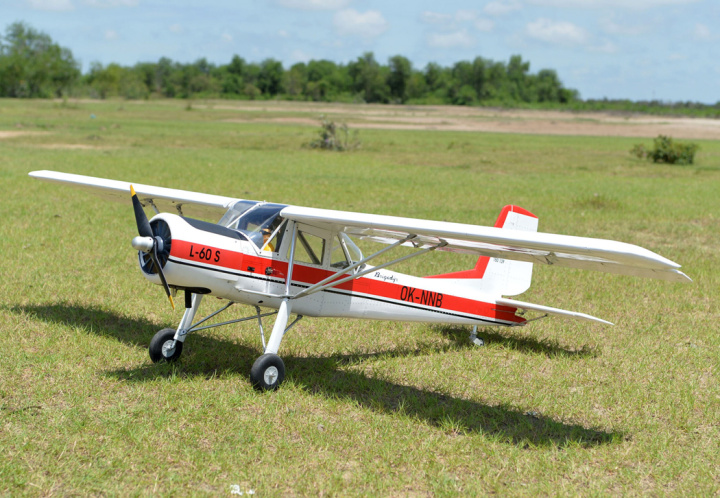

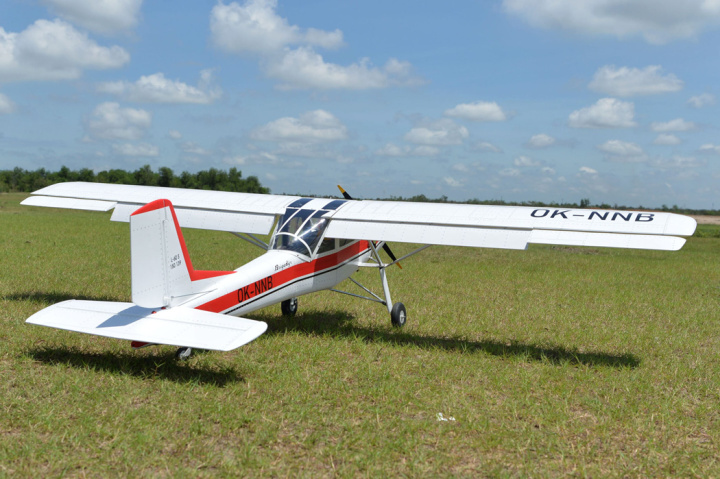

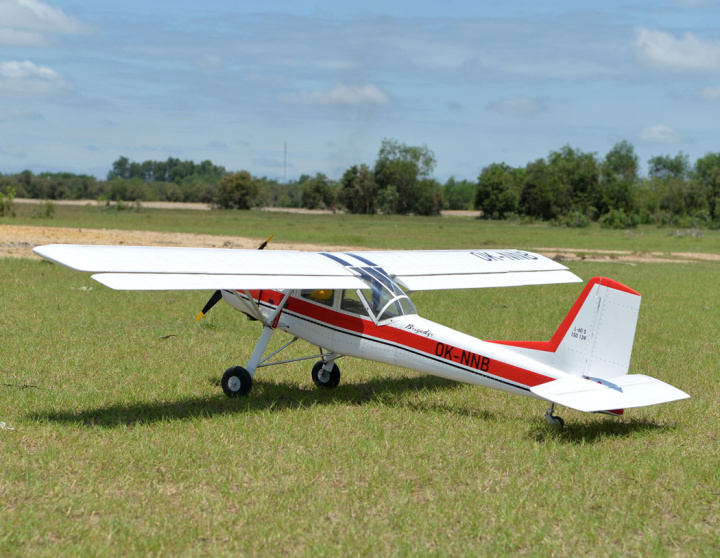

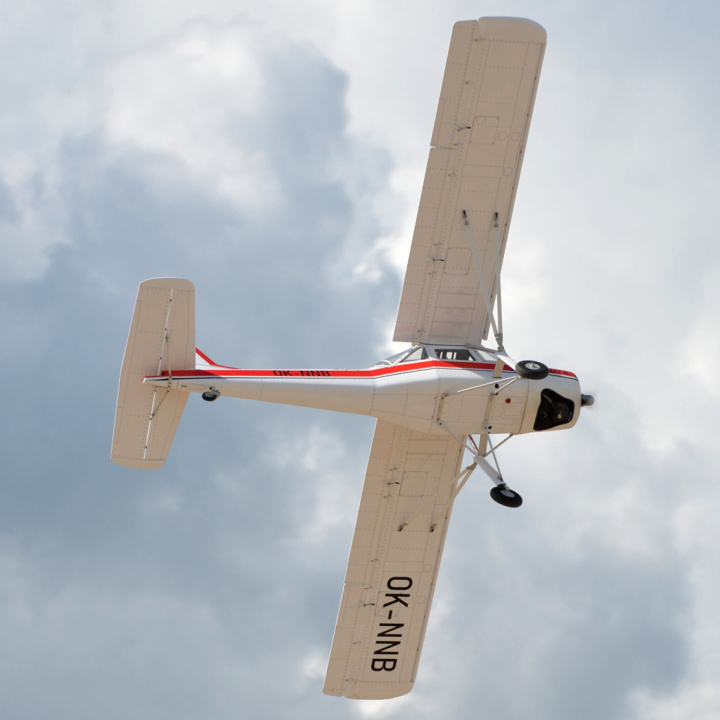

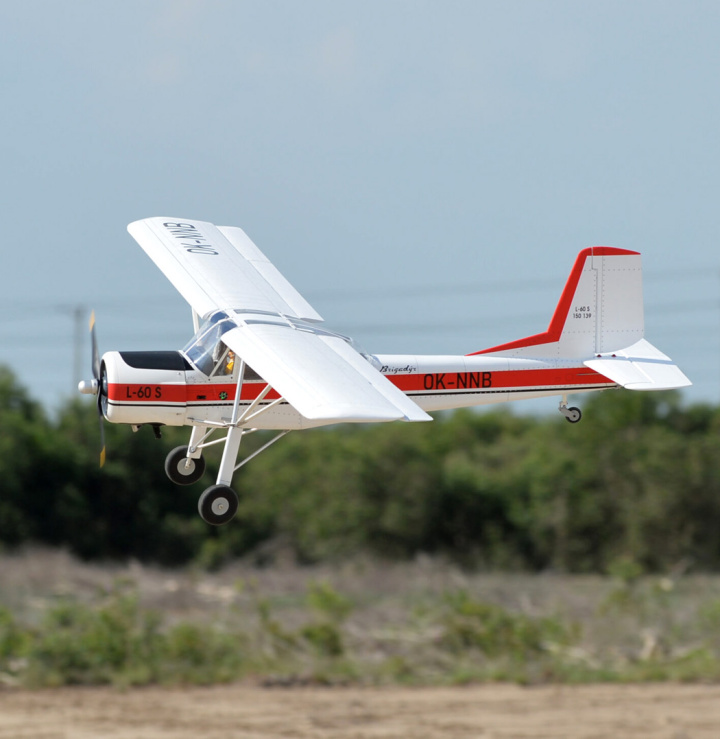

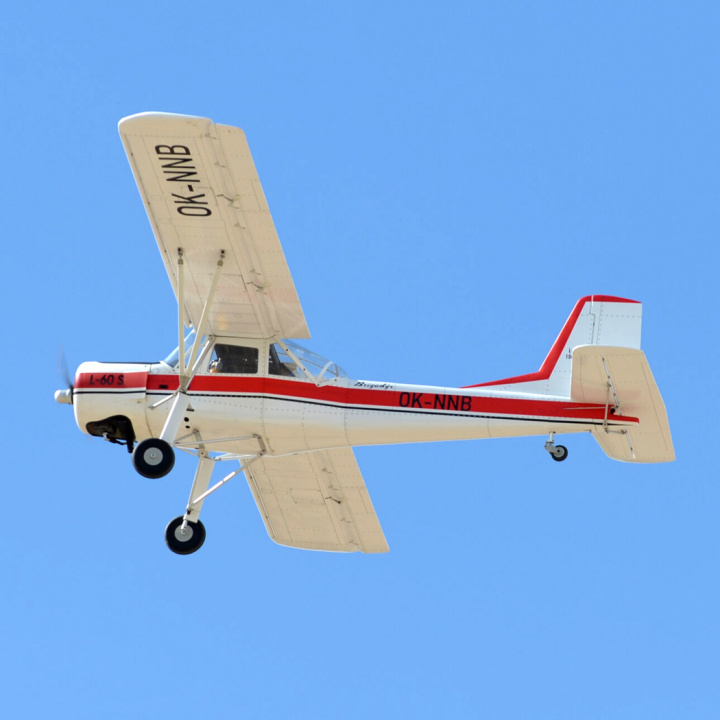

The Aero L-60 Brigadýr is a Czech high-wing workhorse famous for short take-off and landing. Black Horse captures the silhouette in a 2668 mm span, built entirely from balsa and plywood and factory-covered in printed heat-shrink film.
With low wing loading and a large wing, it flies calmly and forgivingly – a rewarding scale model with real presence. Supplied around 90% pre-built (ARF) with oleo struts and an aluminium spinner.
Highlights
- All laser-cut balsa and plywood
- Factory-covered in printed heat-shrink film
- Oleo struts front and rear (included)

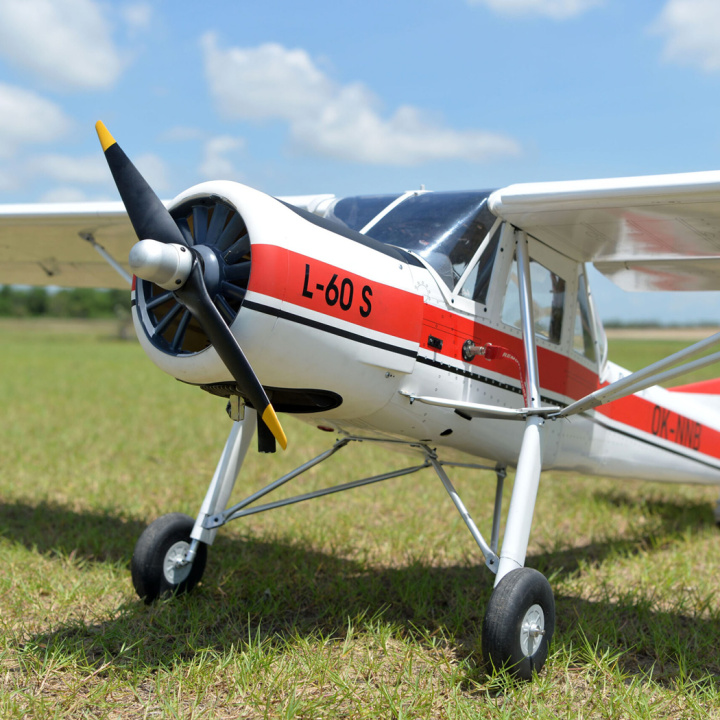

- 44 mm aluminium spinner (included)
- Build as petrol or electric
Specifications
| Wingspan | 2668 mm |
| Length | 1672 mm |
| Weight | 8 kg |
| Wing area | 90.58 dm² |
| Wing loading | 88.31 g/dm² |
| Wing profile | NACA |
| Spinner | 44 mm aluminium (included) |
| Landing gear | Oleo struts, main & tail (incl.) |
| Covering | Printed heat-shrink film |
What you need (not included)
| Radio | 6+ channels |
| Servos | 7x high-torque |
| Combustion engine | 30–35cc |
| Propeller | to suit engine |
Electric conversion – guideline
| Motor | Brushless outrunner, 2500–3200 W, ~245 KV |
| Speed controller (ESC) | 80–100 A |
| Battery (LiPo) | 6–10S 4000–5500 mAh |
| Receiver battery | 6–7.4 V 1200–2000 mAh |
Specifications according to the manufacturer. Motor, radio, servos and battery are not included unless otherwise stated.
