CASTLE CREATIONS

Motor Sensor 2535 680KV 3-12S 1/4-1/5

Average rating 0 out of 5 Number of ratings 0
Article nr: CC060-0120-00
Stock availability:
0 pcs
Delivery: Out of stock
Next delivery: 2025-10-08
Retail price: 5940 kr
Product description

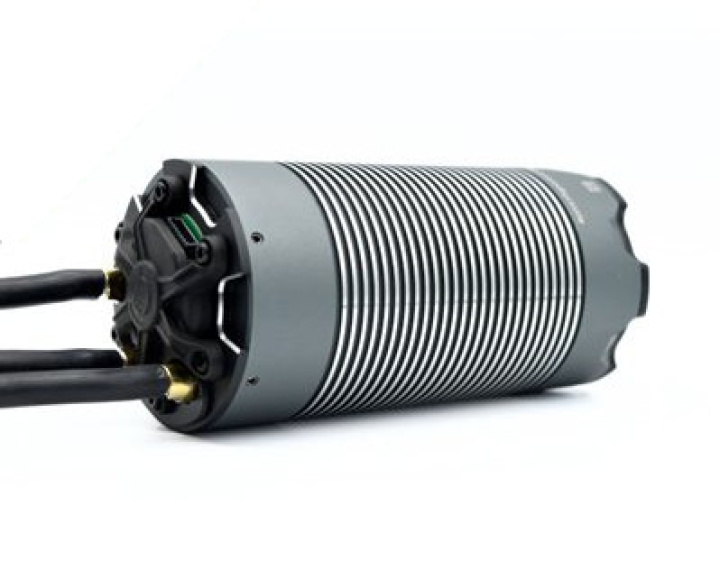

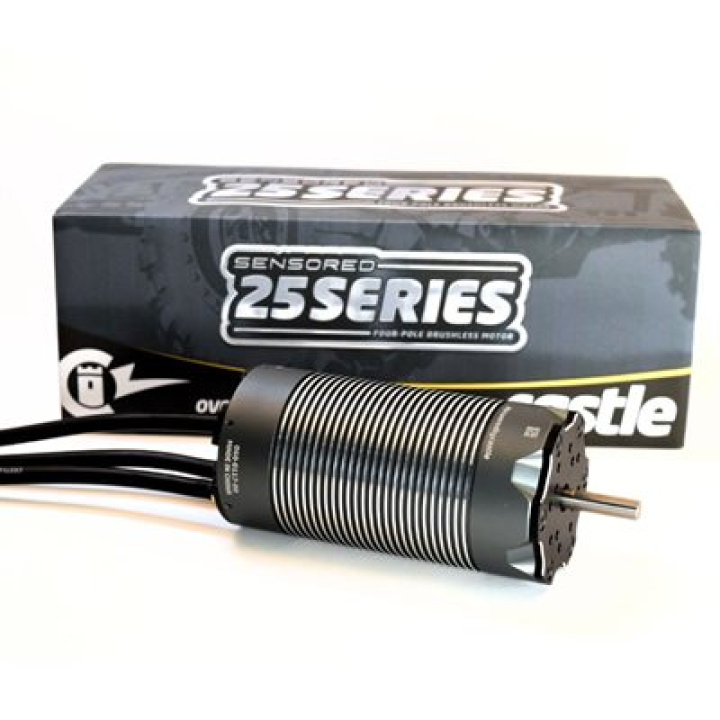

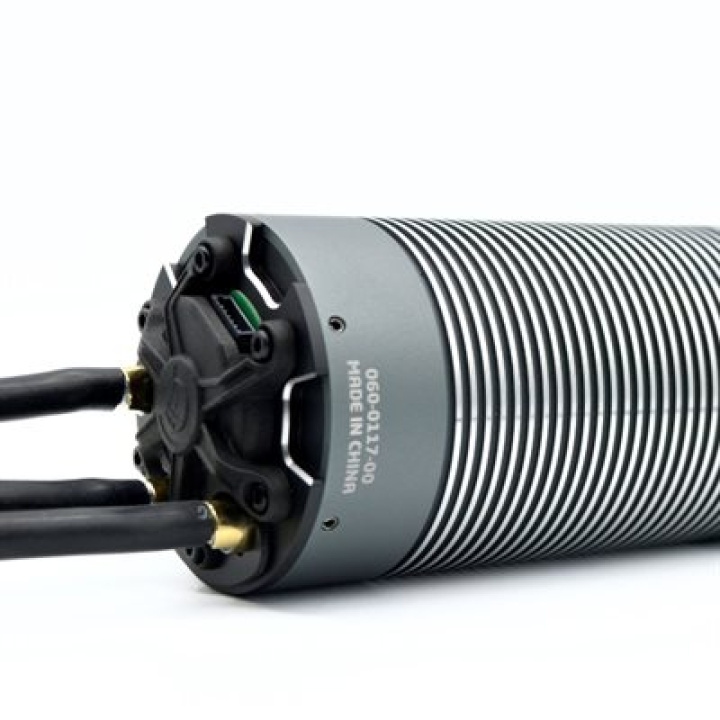

Castle 2535 Sensored Motor – 680KV (060-0120-00)

The Castle 2535 680KV sensored brushless motor is the largest and most powerful motor from Castle Creations. Designed for 1/4 and 1/5 scale RC vehicles, it delivers extreme torque and efficiency, making it suitable for heavy-duty electric conversions.

Key Features

  • Operates up to 12S LiPo

  • 680KV rating for high torque and controlled power delivery

  • Sensored and sensorless operation modes

  • Low resistance windings for cooler, more efficient performance

  • Stainless steel sleeve reinforcing powerful neodymium magnets

  • Oversized NMB bearings for durability

  • Water-resistant construction with conformal coated sensor board

  • Direct bullet connections for reduced electrical losses


Technical Specifications

  • KV: 680

  • Maximum RPM: ~38,000 at 12S

  • Dimensions: 147.5 mm length × 68.7 mm diameter

  • Weight (with wiring): ~2.4 kg (84.8 oz)

  • Shaft: 30 mm length, 8 mm diameter

  • Mounting Holes: 4 mm holes on 30 mm and 40 mm spacing

  • Connectors: 8.0 mm male bullets

Usage Notes

  • Recommended for vehicles up to 50 lb (22.7 kg)

  • Best paired with high-voltage ESCs such as the Cobra 5 HV

  • Monitor motor temperature to stay within safe limits (below ~82 °C / 180 °F)

  • Use mounting screws no longer than 5 mm on the front side to avoid damage

  • Motor is water-resistant but sensor leads are not waterproof; dielectric grease is recommended for protection

Features
Country of origin: US
EP Motor Application: Car
Type of motor: Brushless
kV-Value: 680 kV
Motor diameter: 68,7 mm
Motor length: 147,5 mm
Shaft length: 30 mm
Motor Weight: 2400 gram
Shaft Diameter: 8 mm
Max Rev.: 38000 RPM
