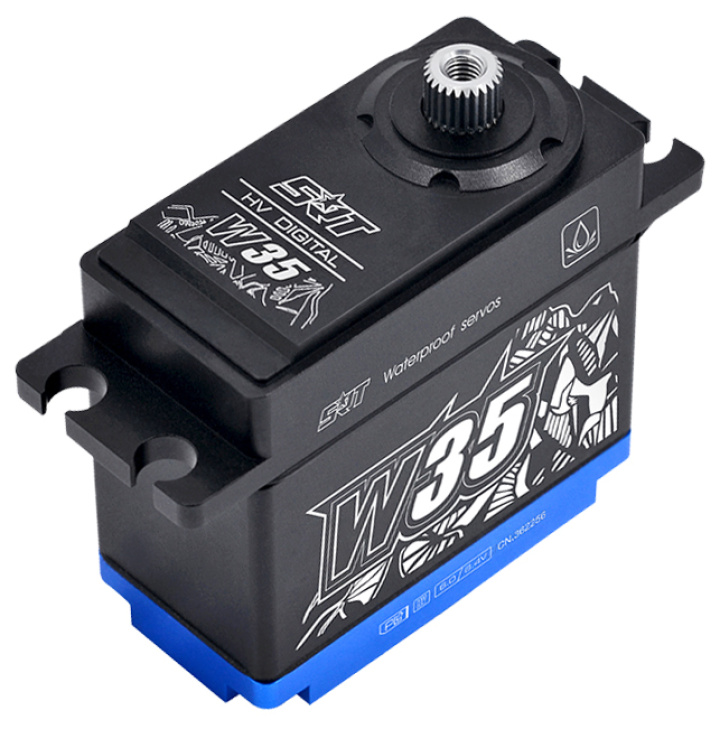

SRT W35 - HV Coreless Waterproof Servo 0.12 s/60° / 30.0 kg/cm @ 7.4 V
The SRT W35 is a waterproof HV coreless servo for 1/10 Crawler and 1/8 Electric Buggy. It measures 40.7 x 20.5 x 38.6 mm and weighs 82.5 g. At 7.4 V it delivers 30.0 kg/cm of torque and 0.12 s/60°.The coreless motor gives fast response and low current draw. The gear train is titanium and steel and the output shaft runs in two ball bearings. As an HV servo it can be powered directly from a 2S LiPo pack, and at 8.4 V it delivers 35.0 kg/cm.
Features:
- Coreless motor with low power consumption
- Dual NMB ball bearings
- Titanium and steel gear train
- Waterproof function
- 25T output shaft
Applications:
- 1/10 Crawler
- 1/8 Electric Buggy
Technical details:
- Type: Digital
- Motor type: Coreless
- Bearings: 2 NMB ball bearings
- Gear type: Metal
- Gear material: Titanium & steel
- Control system: Pulse width control (PWM)
- Working frequency: 1520 µs / 330 Hz
- Operating voltage: DC 6.0-8.4 V
- Operating temperature: -10 to +60 °C
- Speed @ 6.0 V: 0.15 s/60° (no load)
- Speed @ 7.4 V: 0.12 s/60° (no load)
- Speed @ 8.4 V: 0.10 s/60° (no load)
- Torque @ 6.0 V: 25.0 kg/cm (347.2 oz/in)
- Torque @ 7.4 V: 30.0 kg/cm (416.6 oz/in)
- Torque @ 8.4 V: 35.0 kg/cm (486.1 oz/in)
- Potentiometer drive: Direct drive
- Dimensions (LxWxH): 40.7 x 20.5 x 38.6 mm
- Weight: 82.5 g
- Connector / cable length: JR, 360 mm
