SAVÖX

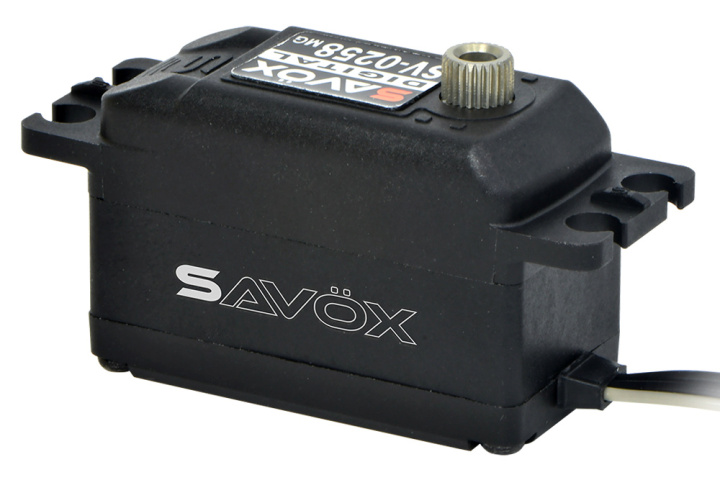

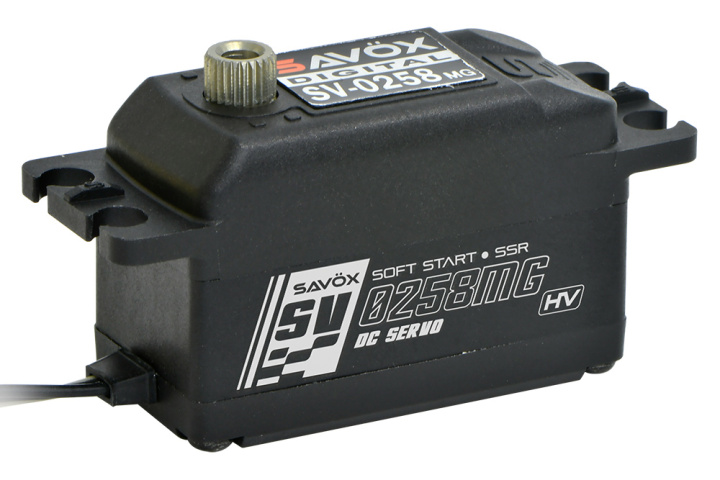

SV-0258MG Servo 8Kg 0,11s HV Metal Gear Low Profile

Average rating 0 out of 5 Number of ratings 0
Article nr: SAV-SV0258MG
Stock availability:
0 pcs
Delivery: Out of stock
Next delivery: 2025-10-24
Retail price: 348 kr
Product description

SAVÖX SAV-SV0258MG - SV-0258MG Low Profile Servo 8Kg 0.11s HV Hybrid Gears

Protection and Precision for Entry-Level RC
The SV-0258MG is engineered to work seamlessly with entry-level ESCs in RTR kits, limiting current draw to just 1.5A to prevent shutdowns and ensure uninterrupted driving. Its low-profile composite case saves space, while hybrid gears and digital electronics provide consistent, precise steering control.

It's ideal for RTR and 1/10 touring cars where both protection and performance matter.

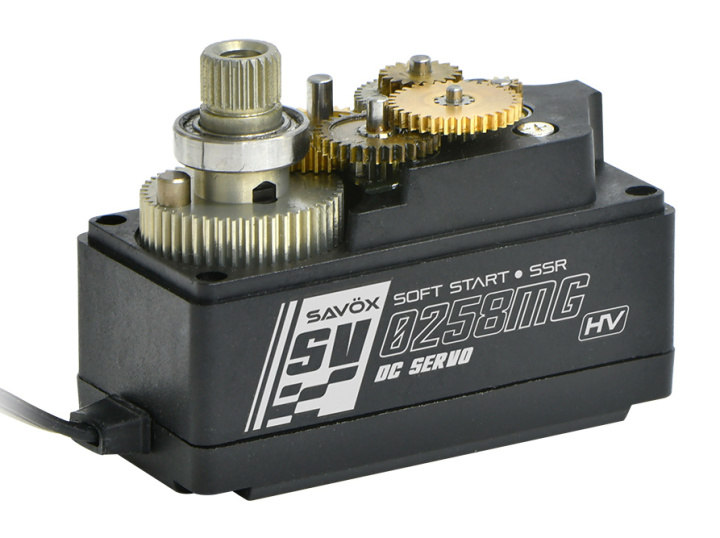

Hybrid Metal/Composite Gears
Provides a balance of durability and weight savings for everyday and beginner use.

Low-Profile Compact Size

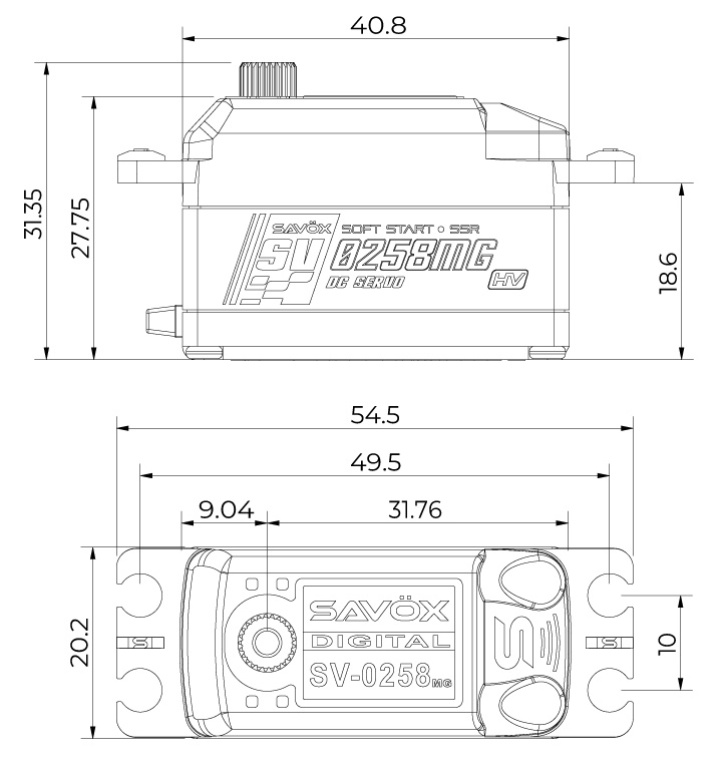

Measures only 40.8×20.2×27.75mm, making it a perfect fit for 1/10 touring cars and other compact builds.

Digital Precision Control
Equipped with a 10-bit digital PCB and VR potentiometer for smooth, accurate steering response.

Specs:
  • Line: BLACK EDITION
  • Application: CAR
  • Servo Size: Low Profile
  • Operating Voltage: 6V-7.4V
  • Speed @6.0V: 0.13s/60°
  • Torque @6.0V: 6.5kg/cm
  • Speed @7.4V: 0.11s/60°
  • Torque @7.4V: 8.0kg/cm
  • Amplifier Type: Digital Controller
  • Motor Type: DC
  • Case Type: Composite
  • Protection: Dust Resistant
  • Dimensions: L40.8xW20.2xH27.7 mm
  • Weight: 36g
  • Gear Type: Hybrid (Metal/Composite)
  • Compatibility: Sanwa SSR
  • PCB Board: 10-bit
  • Horn Gear Spline: 25T (Φ6)
  • Rotating Direction: Clockwise (when 1000→2000μsec)
  • Max Travel: ~140° (when 800→2200μsec)
  • Operating Travel: 90° (when 1000→2000μsec)
  • Neutral Position: 1500μsec
  • Bearing: 2x Ball Bearings
  • Potentiometer: VR
  • Cable Diameter: 26AWG
  • Cable Length: 250±5mm
  • Connector: JR
  • Stall Current @6.0V: 1500mA
  • Operating Current @6.0V: 150mA
  • Stall Current @7.4V: 1800mA
  • Operating Current @7.4V: 180mA
  • Idle Current: 6mA
  • Dead Band Width: 3-5μsec
  • Frequency Range: 50-360Hz
  • Control System: Pulse Width Modification
  • Operating Temperature: -10°C to 50°C
Features
Country of origin: TW
Servo Length: 40,8 mm
Servo Height: 27,7 mm
Servo width: 20,2 mm
Servo weight: 36 g
Servo type: Low profile
Max Voltage: 7,4 V
Speed at 6,0V: 0,13 sec/60°
Speed at 7,2/7,4V: 0,11 sec/60°
Torque at 6,0V: 6,5 kg/cm
Torque at 7,2/7,4V: 8 kg/cm
Features: Dual Ball Bearing , HV , Soft Start , SSR
Delivered With: Horns , Mounting Hardware
Parts
Popular Accessories
Files/Downloads
File name Language Published
SV-0258MG_3D_STEP.zip EN 2025-09-24
SV-0258MG_Spec-Sheet.pdf EN 2025-09-24
