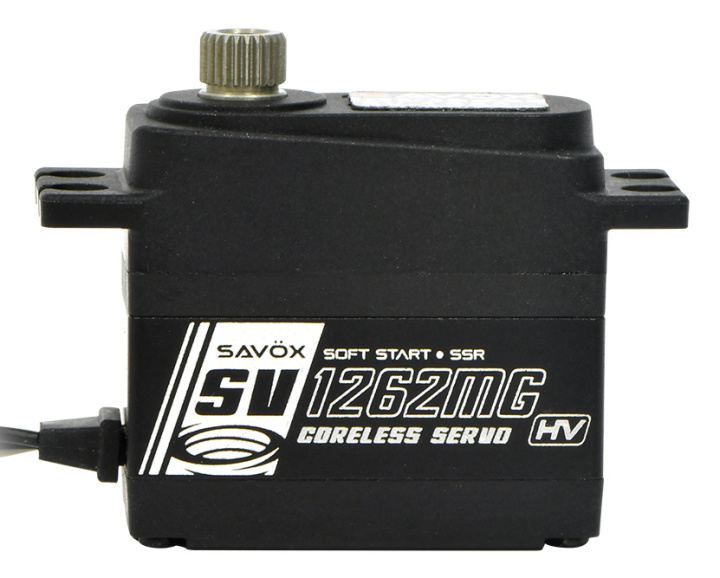

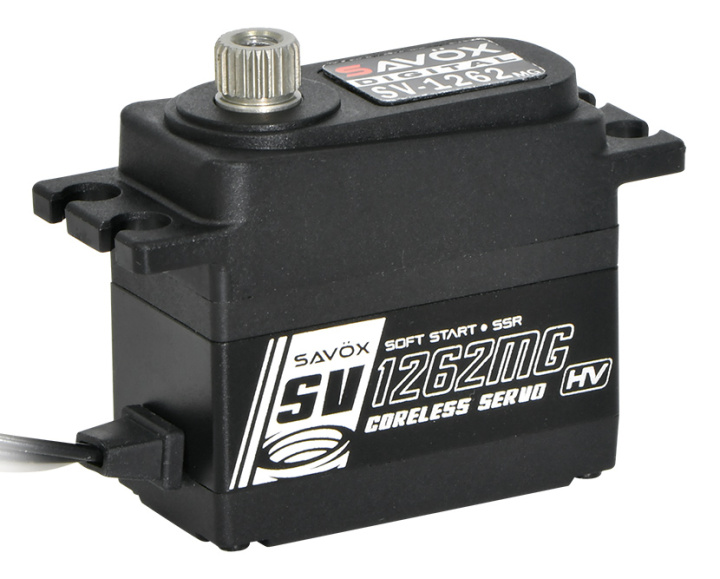

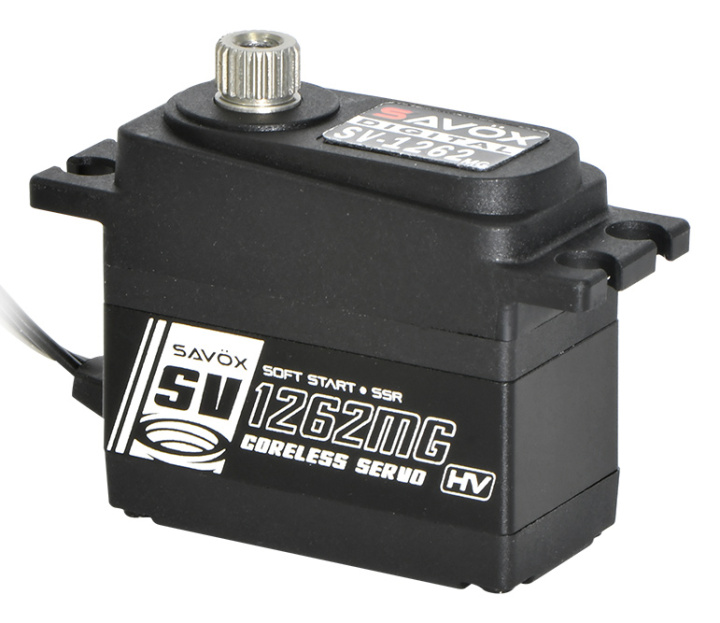

High-End Mini Servo with Pro features. Smaller footprint (32.4 × 16.8 × 29.8 mm) with full-size performance.
Lightweight Power
Only 30g, yet capable of delivering the torque and speed needed for RC aircraft and 1/12 scale vehicles.
Features:
- Coreless motor
- Equipped with a 32-bit PCB board
- New generation design for improved performance
- Compact size
- 32mm in length (compared to 35mm on SV-1250MG)
- Ideal for tight installation spaces
- Similar specs to SV-1250MG
- Tested for 1/12 on-road cars
Compact + Strong
Hybrid Aluminum/Composite case with metal/composite gears for reliable durability. Only 32.4 × 16.8 × 29.8 mm — perfect for tight builds. The SV-1262MG proves that mini servos don’t need to compromise. Its hybrid case construction and coreless motor deliver exceptional performance in a space-saving package, making it ideal for competitive 1/12 racers and precision-focused aircraft.
Coreless Precision
Smooth, consistent response powered by a high-efficiency coreless motor.
Specifications:
- Line: BLACK EDITION
- Applications: CAR, HELI, AIRPLANE & BOATS
- Servo Size: Mini
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.11 s/60°
- Torque @ 6.0V: 4.6 kg/cm
- Speed @ 7.4V: 0.095 s/60°
- Torque @ 7.4V: 7.0 kg/cm
- Speed @ 8.4V: 0.09 s/60°
- Torque @ 8.4V: 9.0 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Water Resistant

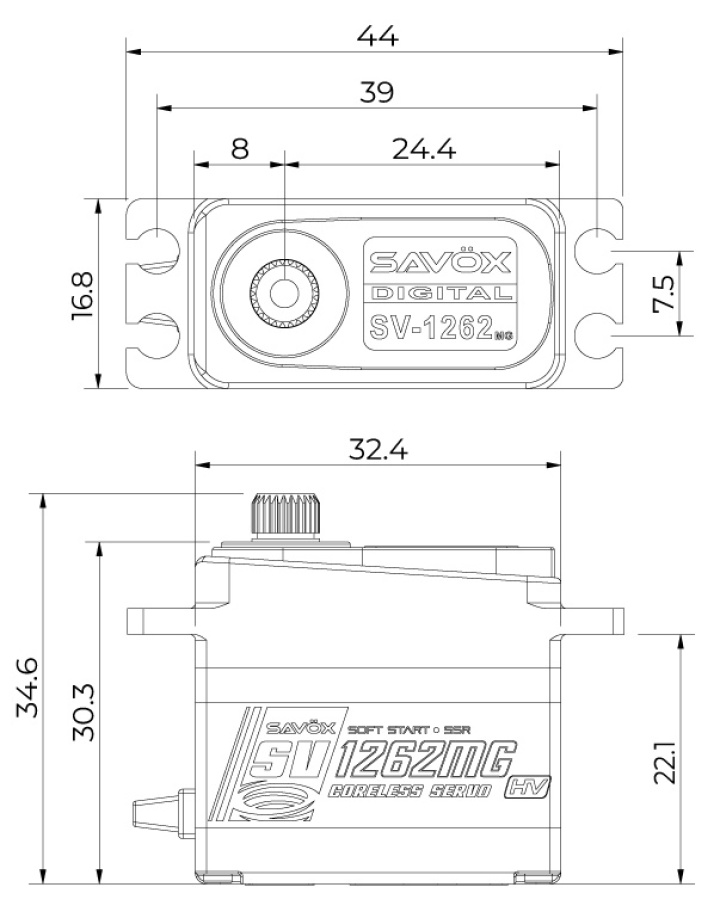

- Dimensions (L x W x H): 32.4 x 16.8 x 30.3 mm
- Weight: 30 g

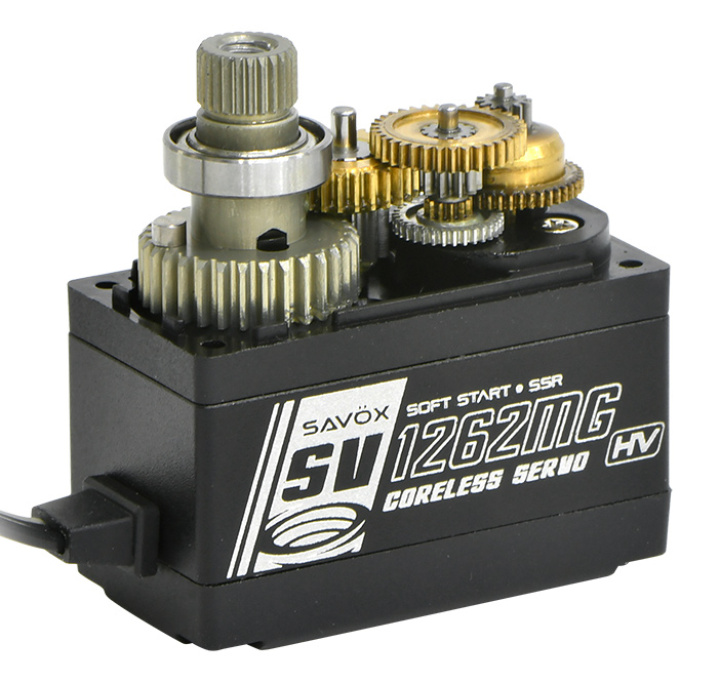

- Gear Type: Hybrid (Metal/Composite)
- Compability: Sanwa SUR, SSR & Futaba UR, SR
- PCB Board: 32-bit
- Horn Gear Splines: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~154° (when 800→2200 μsec)
- Operating Travel: 110° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearings: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26 AWG
- Cable Length: 250 ±5 mm
- Connector: JR
- Stall Current @ 6.0V: 1700 mA
- Operating Current @ 6.0V: 100 mA
- Stall Current @ 7.4V: 2000 mA
- Operating Current @ 7.4V: 120 mA
- Stall Current @ 8.4V: 2200 mA
- Operating Current @ 8.4V: 150 mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
