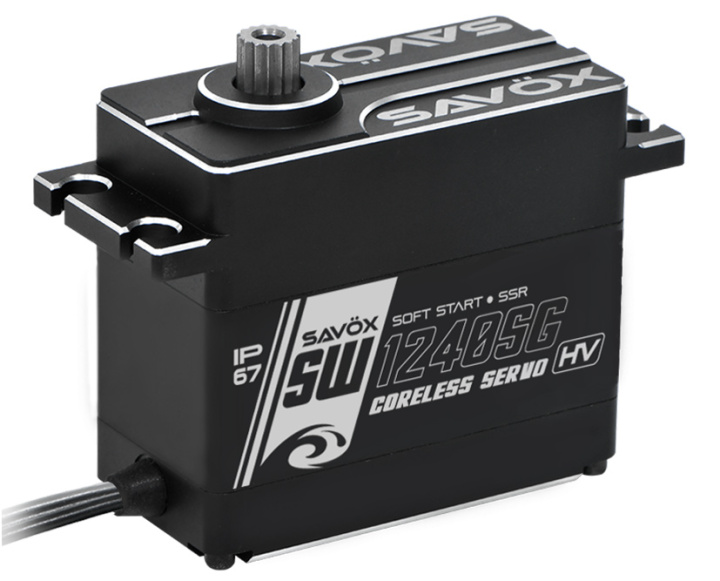

Savöx SW-1240SG - Large Scale IP67 Coreless HV Monster Servo 0.17s 65kg/cm
Built for 1/5 performance
The new SW-1240SG combines Rhino-size fitment, IP67 protection, and next-gen coreless power to dominate large-scale competition.
Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.
IP67 Waterproof Design
Fully sealed for use in wet, muddy, or dusty 1/5-scale racing environments.
Coreless Power
New-generation high-efficiency coreless motor provides strong torque and smooth response.
Rhino-Size Format
Fully sealed for use in wet, muddy, or dusty 1/5-scale racing environments.

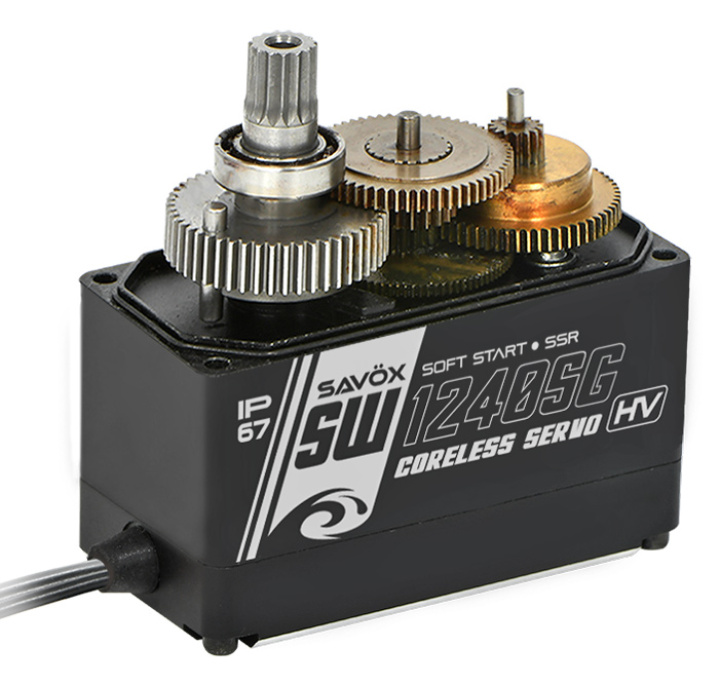

Specialized Steel Gears
Delivers long-term durability and reliability under extreme load.
Specs:
- Line: BLUE LINE
- Application: Car/Boat
- Servo Size: Large
- Operating Voltage: 6.0-8.4V
- Speed @ 6.0V: 0.2s/60°
- Torque @ 6.0V: 50kg/cm
- Speed @ 7.4V: 0.17s/60°
- Torque @ 7.4V: 65kg/cm
- Speed @ 8.4V: 0.15s/60°
- Torque @ 8.4V: 75kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Aluminium
- Protection: Waterproof (IP67)

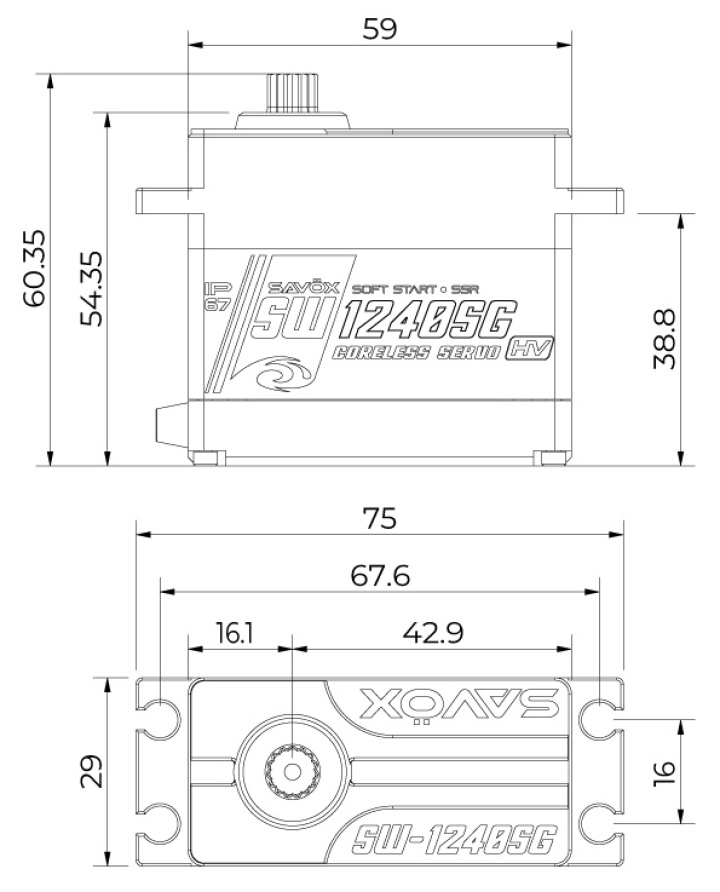

- Dimensions (L x W x H): 59x54.35x29mm
- Weight: 196g
- Gear Type: Specialized Steel
- Compatibility: Sanwa SSR
- PCB Board: 32-bit
- Horn Gear Spline: 15T (Φ7.8mm)
- Rotating Direction: Counterclockwise (when 1000→2000μsec)
- Max Travel: ~130° (when 800→2200μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearings: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 450 ±5mm
- Connector: JR Connector
- Stall Current @ 6.0V: 5000mA
- Operating Current @ 6.0V: 150mA
- Stall Current @ 7.4V: 6000mA
- Operating Current @ 7.4V: 180mA
- Stall Current @ 8.4V: 7000mA
- Operating Current @ 8.4V: 200mA
- Idle Current: 6mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
