Traxxas 110056-4-RED – TRX-4 Nissan Pathfinder 1/10 Crawler RTR – Red
1/10 scale 4WD scale and trail crawler with licensed clipless Nissan® Pathfinder® body, portal axles, remote-locking differentials, 2-speed transmission and TQi™ 4-channel radio. Battery and charger sold separately.

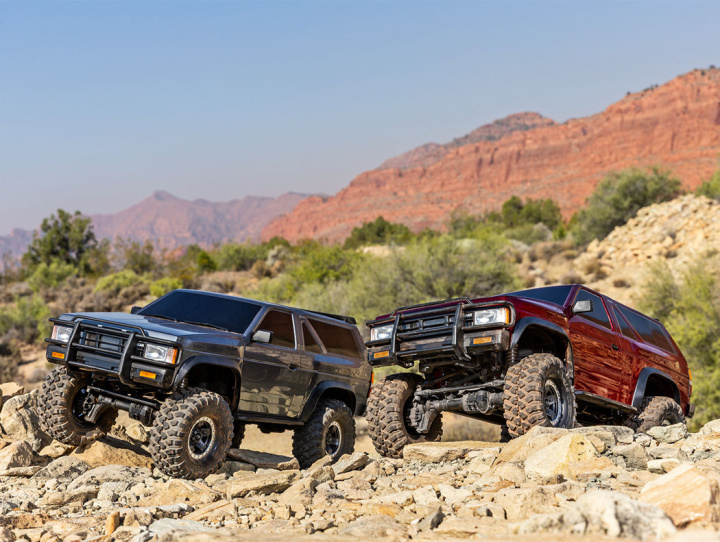

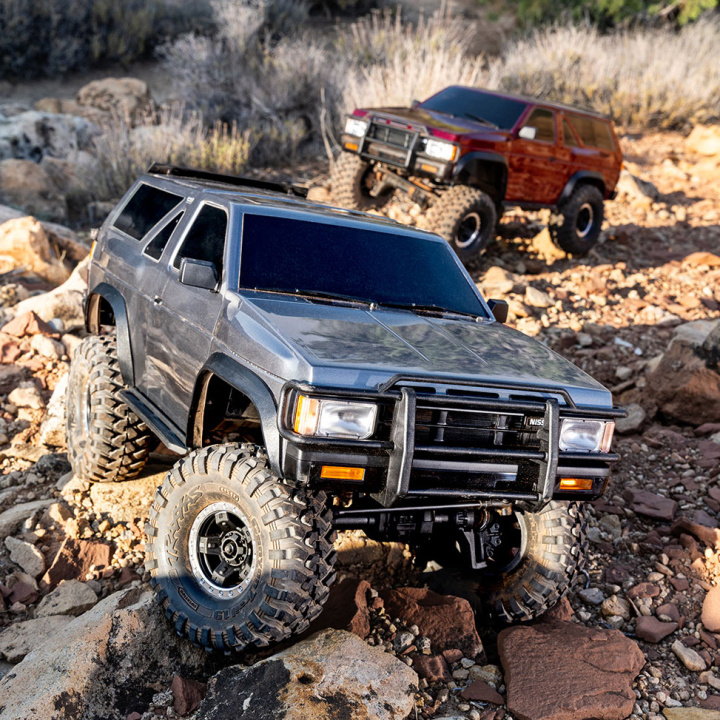

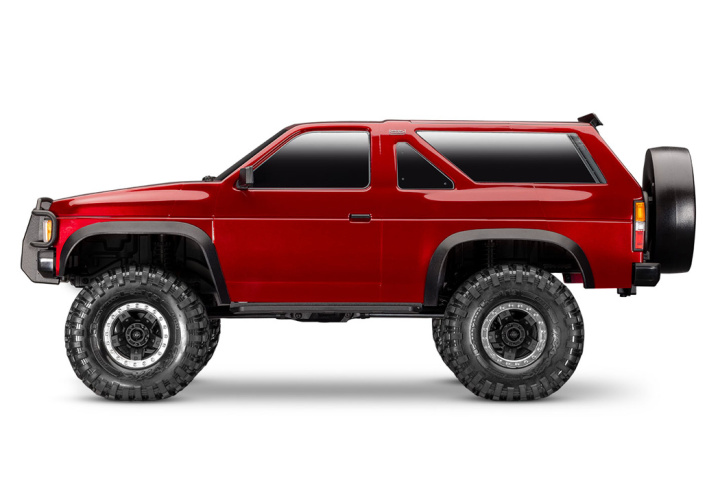

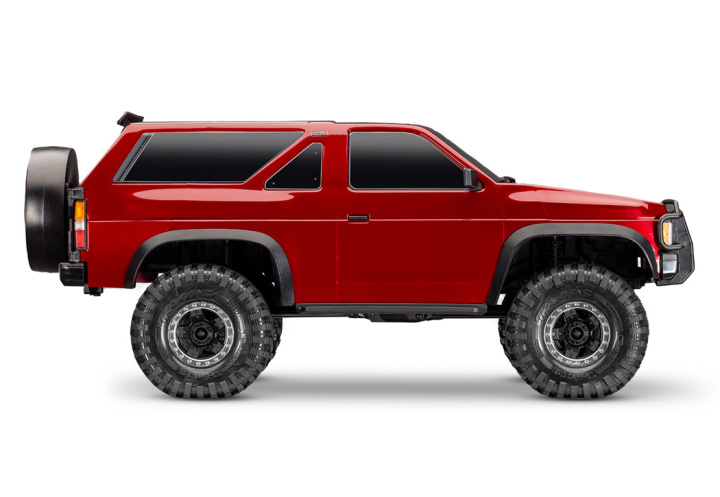

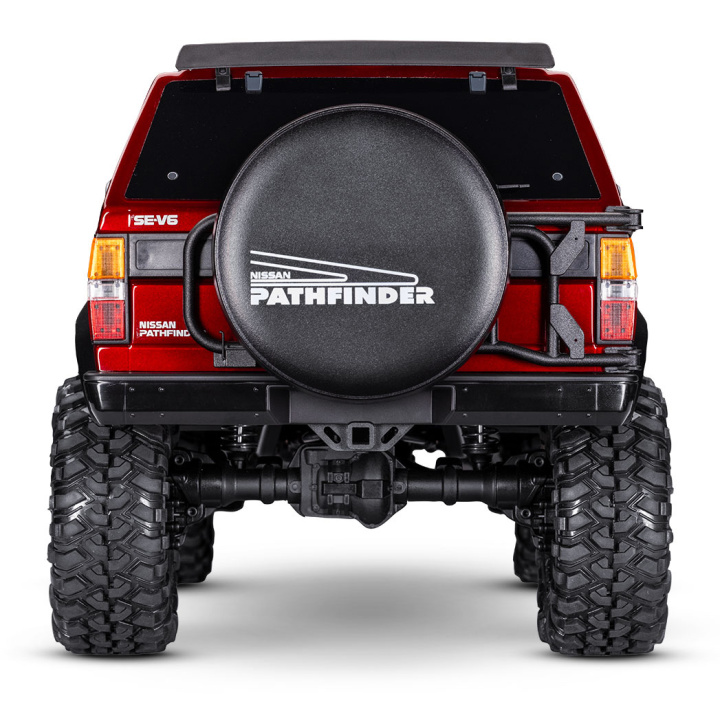

TRX-4® Nissan® Pathfinder® pays tribute to the first 2-door Pathfinder from 1987 with a detailed reproduction body on the proven TRX-4 chassis. Portal axles give 80 mm of ground clearance and remove torque twist, and the remote-locking differentials and the 2-speed high/low transmission are controlled from the transmitter. The clipless body has smooth lines without visible clips, holds tight on the trail and releases in seconds. This version comes in Red.
TRX-4 Pathfinder is rated skill level 1 and no previous RC experience is required. Battery and charger are not included. The truck takes 6–7 cell NiMH or 2S–3S LiPo batteries, and Traxxas recommends the EZ-Peak® charger 2970.
Features

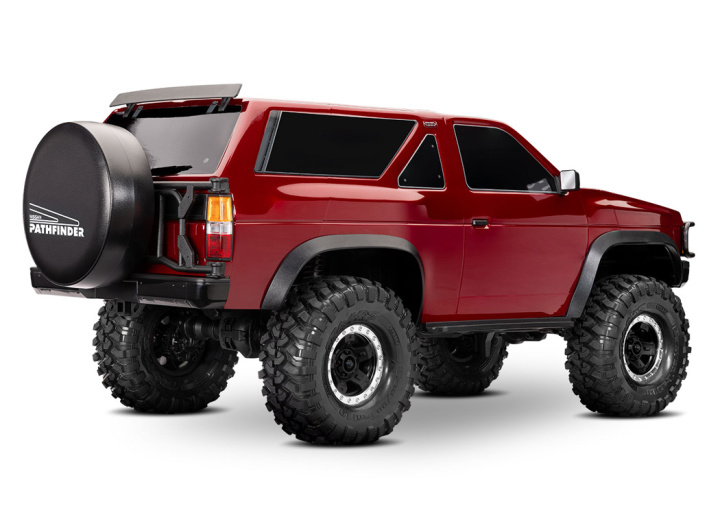

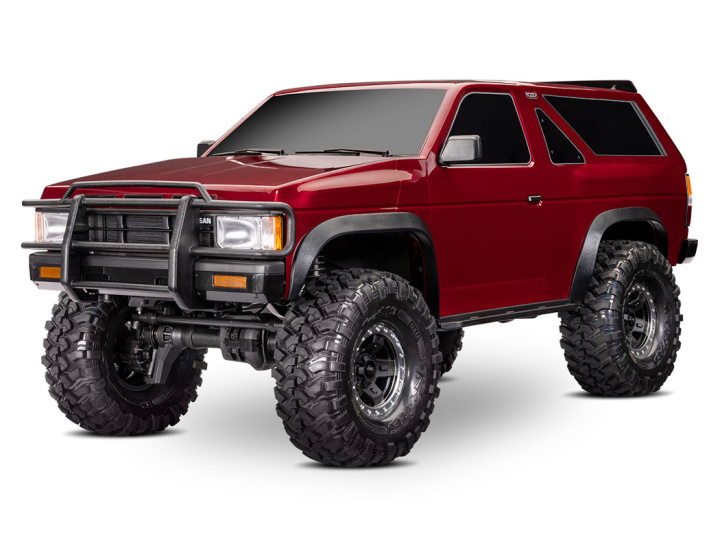

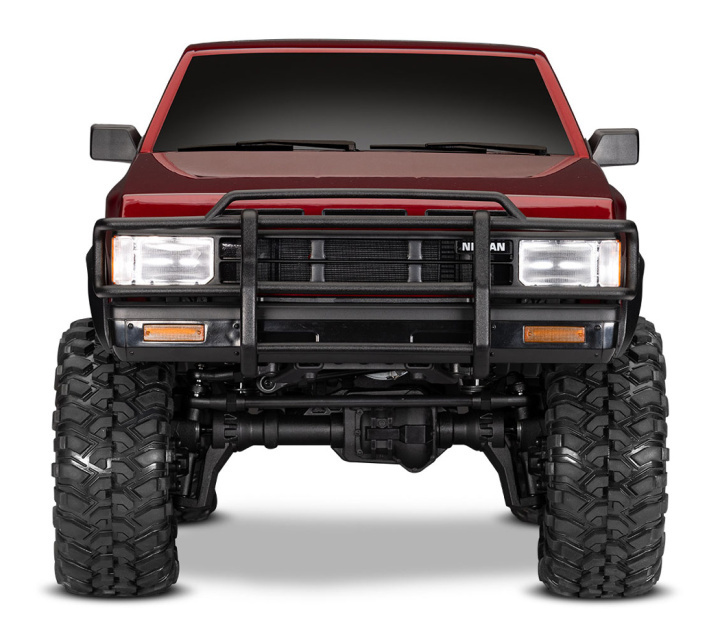

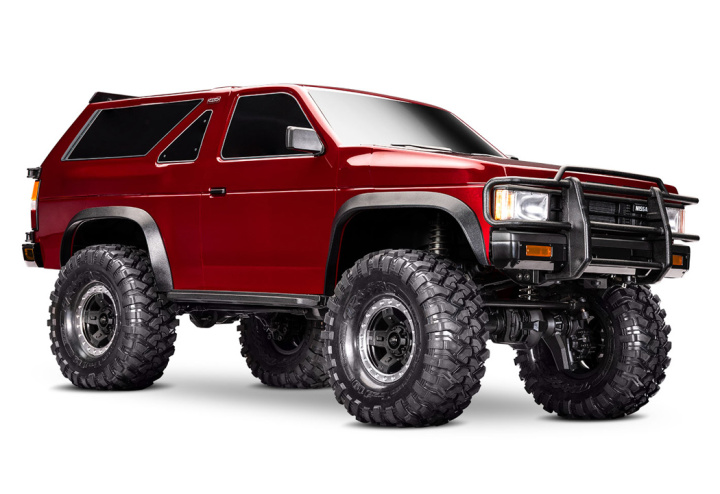

- Licensed clipless Nissan® Pathfinder® body with composite wheel wells and floor pans
- Waterproof XL-5™ HV ESC with five drive profiles: Sport, Race, Training, Trail (with drag brake in neutral) and Crawl (instant reverse with 100 % hill-holding brake)
- Traxxas EZ-Set® one-button setup, 6–7 cell NiMH or 2S–3S LiPo and two-stage low-voltage protection
- Titan® 21T 550 reverse rotation motor with internal cooling fan and preset gear mesh adjustments
- TQi™ 2.4 GHz 4-channel transmitter with cruise control, Traxxas Link™ enabled, and 5-channel receiver (6533) with telemetry ports in a waterproof receiver box
- Portal axles with steel gears for more ground clearance and no torque twist
- Remote-locking steel-gear differentials front and rear, operated from the transmitter
- 2-speed high/low transmission with remote shifting and twin friction plate slipper clutch
- Full-time shaft-driven 4WD with steel front CV driveshafts, hardened steel rear axle shafts and steel transfer case gears

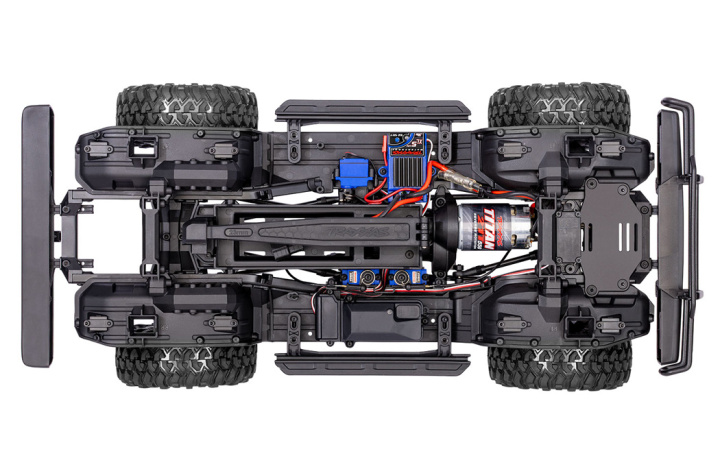

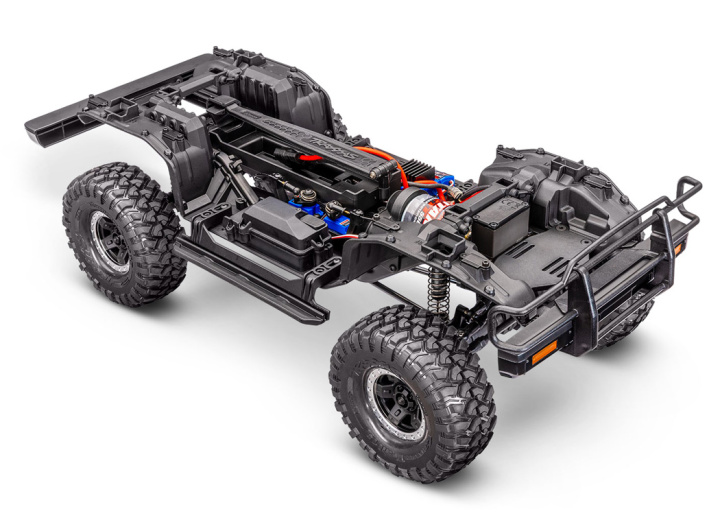

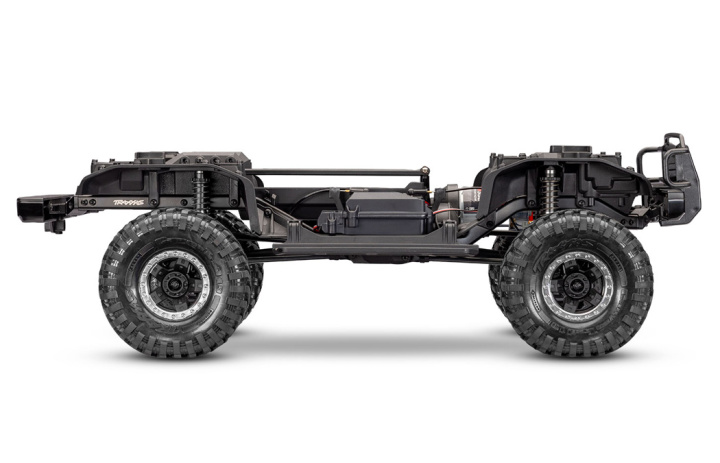

- 1.5 mm steel frame rails with four wheelbase positions (300, 312, 324 and 336 mm), adjustable rear shock towers and rock rails
- Hinged battery strap for full-size long battery packs, plus a secondary front tray for smaller batteries
- Chassis-mounted 2075X metal-gear digital servo, direct steering with 45° steering angle

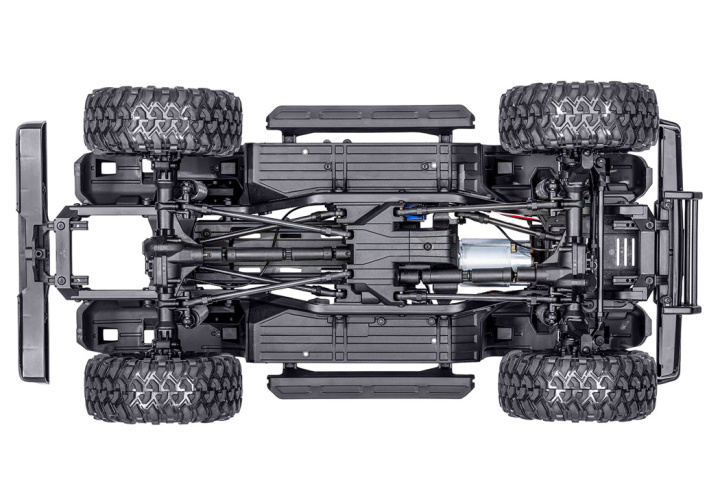

- Front 3-link with panhard and rear triangulated 4-link suspension with steel link rods
- Oil-filled aluminum GTS coilover shocks with threaded bodies for ride height adjustment
- Pre-mounted 1.9-inch Canyon Trail™ tires with trail-tuned foam inserts on black wheels with chrome beadlock trim
Included
- TRX-4 Nissan Pathfinder with XL-5 HV ESC and Titan® 21T motor
- TQi™ 2.4 GHz 4-channel radio system with cruise control
- Maintenance tools
Required (not included)
- 6–7 cell NiMH or 2S–3S LiPo battery
- Charger, for example Traxxas EZ-Peak® 2970
- 4 x AA alkaline batteries for the transmitter
Specifications
- Scale: 1/10
- Type: Trail truck / crawler, 4WD
- Skill level: 1
- Length: 577 mm
- Width / track: 249 mm
- Height: 241 mm
- Wheelbase: 312 mm (adjustable 300–336 mm)
- Ground clearance: 80 mm
- Weight: 3.08 kg
- Driveline: Shaft-driven 4WD with portal axles
- Transmission: 2-speed high/low, remote shifting
- Differentials: Remote locking, steel gears
- Gear pitch: 32 pitch
- Steering servo: 2075X, metal gears, digital, waterproof
- Motor: Titan® 21T 550, brushed, reverse rotation
- ESC: XL-5™ HV, waterproof, 6–7 cell NiMH or 2S–3S LiPo
- Battery: Not included
- Battery compartment: 159 x 47 x 23–26 mm
- Radio system: TQi™ 2.4 GHz, 4 channels
