TRAXXAS

X-Monster Chassis 8S 4WD Brushless TQi TSM (w/o Body)

Average rating 0 out of 5 Number of ratings 0
Article nr: TRX77036-4-WB
Supplier's article no.: 77036-4-WB
Stock availability:
65 pcs
Delivery: 1-2 working days
Next delivery:
Retail price: 13821 kr
020334074232
Product description

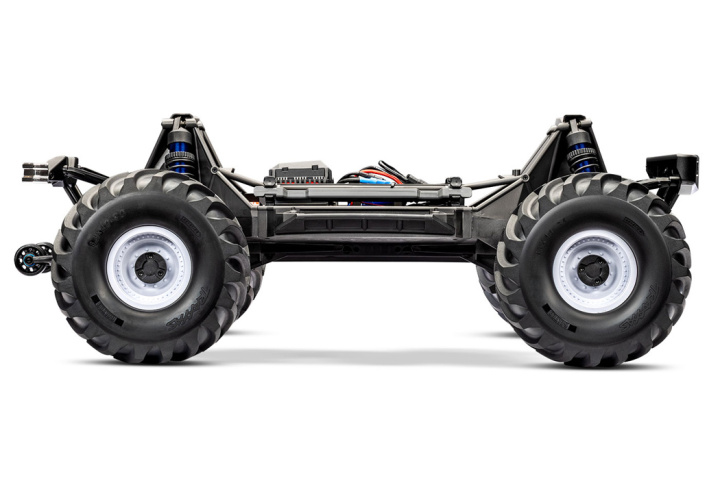

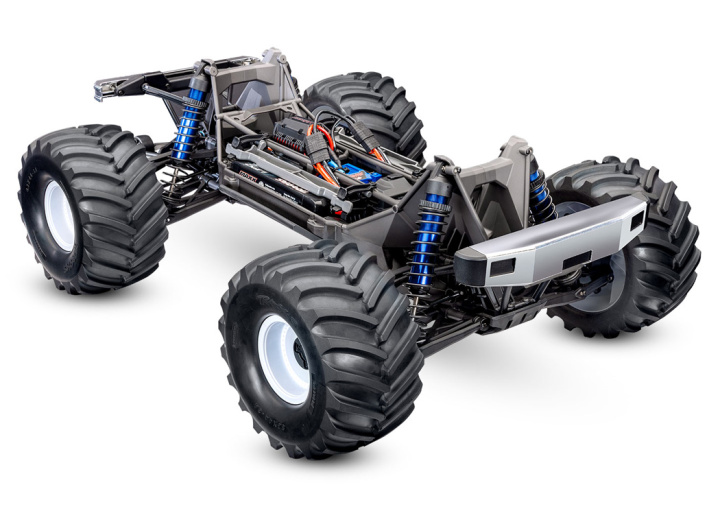

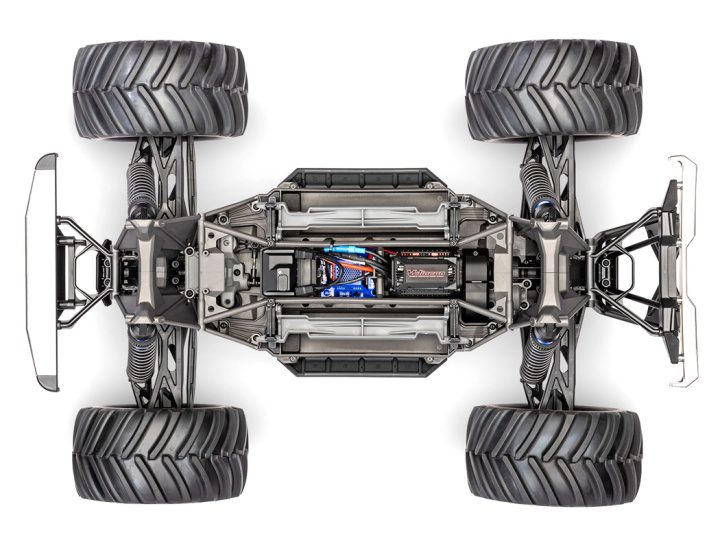

Traxxas 77036-4-WB – X-Monster 8S 4WD Brushless Chassis RTR – Without Body

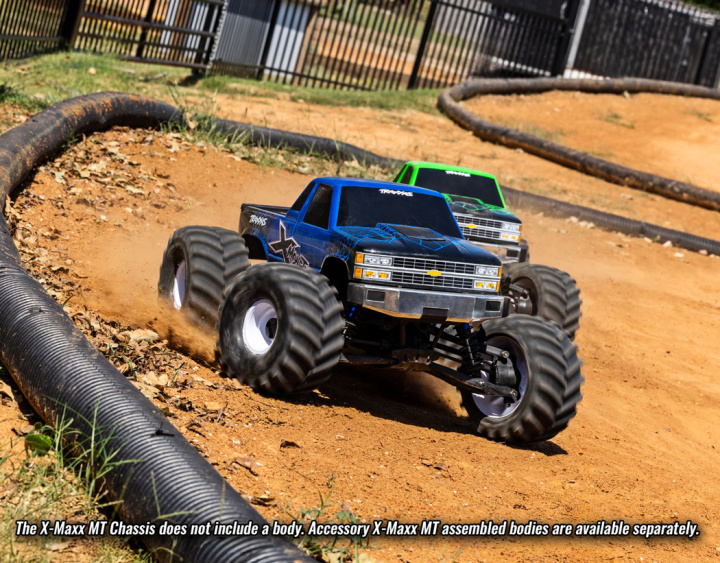

X-Maxx® size 4WD brushless monster truck chassis with Velineon® VXL-8s power system, TQi™ 2.4 GHz radio and Traxxas Stability Management (TSM®). Body, batteries and charger sold separately.

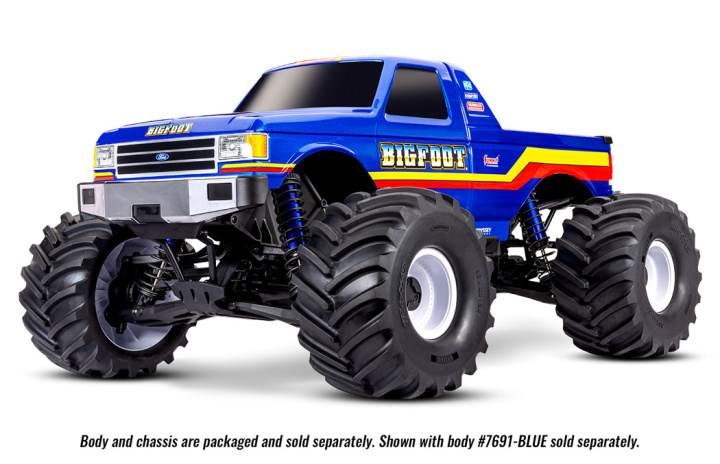

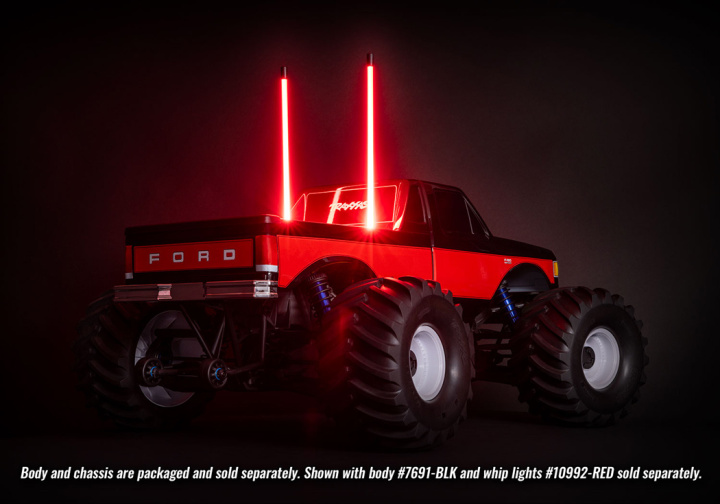

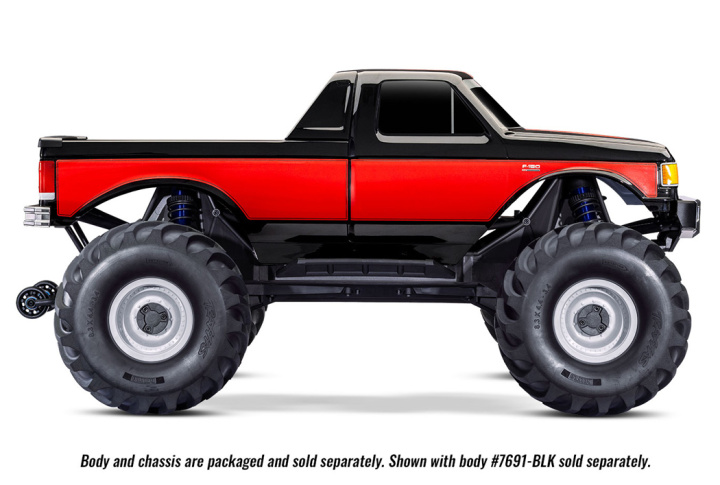

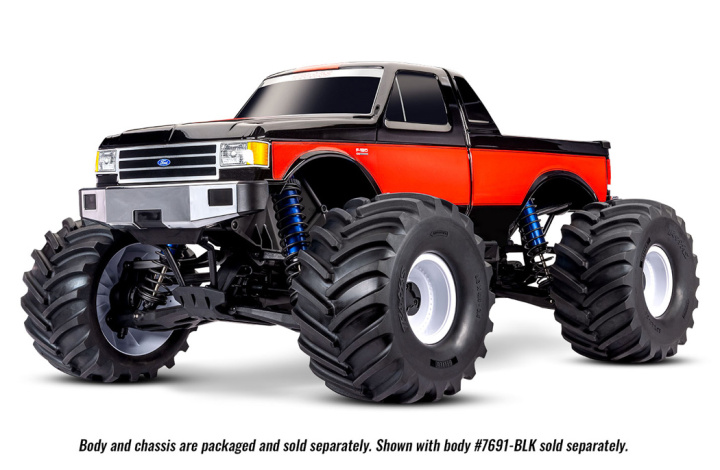

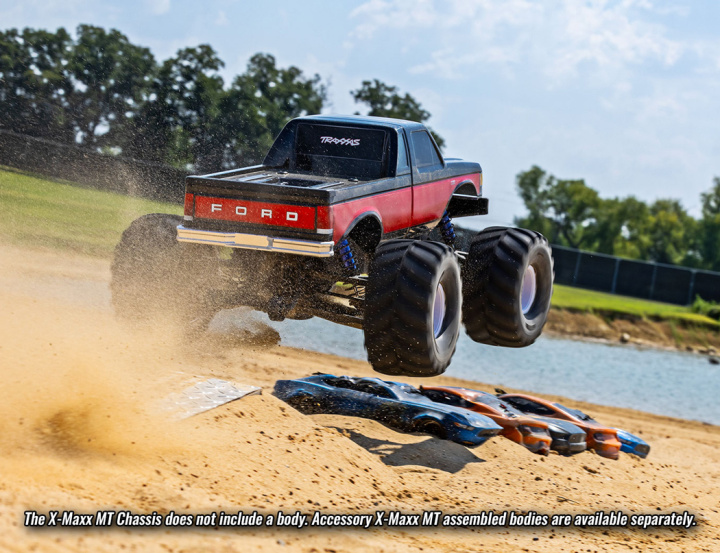

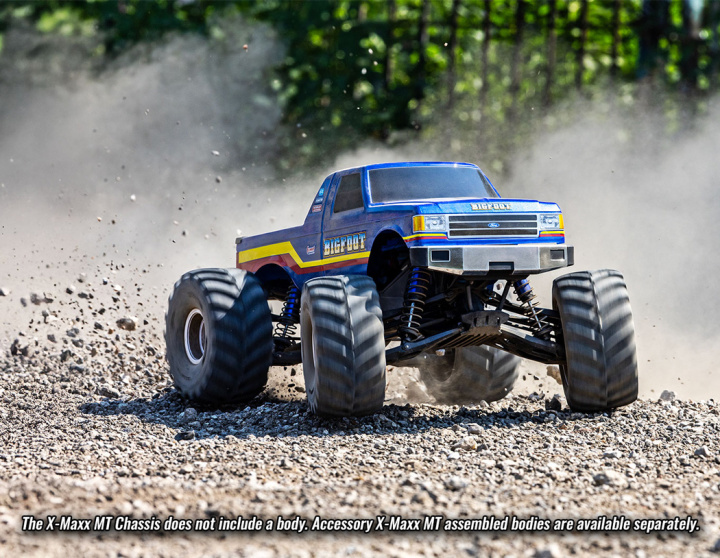

The X-Monster chassis builds on the power and durability of X-Maxx® with an even stronger platform made for replica monster truck bodies. The Velineon® 1200XL brushless motor and VXL-8s ESC run on two 4S LiPo batteries for 50+ mph (80+ km/h) with the included optional pinion gear, and belted chevron-pattern monster truck tires put the power down with an authentic look. Choose a clipless Ford or Chevy X-Monster body to complete the truck. This version is supplied without a body.

X-Monster is rated skill level 6 and is intended for experienced drivers. Body, batteries and charger are not included. Traxxas recommends two 4-cell 6700 mAh Power Cell LiPo batteries 2890X or the Dual 4s Completer Pack 2997, together with the EZ-Peak® Live Dual charger 2973.

Features

  • Clipless body mount with pivoting rear latch for quick one-hand installation, for several X-Monster bodies (sold separately)
  • Velineon® 1200XL brushless motor, 4-pole 1275 Kv, with aluminum heat sink and dual cooling fans
  • Waterproof VXL-8s™ ESC for 8S LiPo with cooling fan, machined heat sinks, 10-gauge wire and LED status lights
  • TQi™ 2.4 GHz radio, Traxxas Link™ enabled, with multi-function knob and 5-channel receiver (6533) with telemetry ports
  • BEC voltage and motor temperature sensors installed
  • Traxxas Stability Management® (TSM), adjustable from off to 100 % from the transmitter
  • 8S driveline with steel pinion and spur gear, Torque-Biasing Center Drive™ and splined aluminum center driveshaft
  • Heavy-duty steel CV driveshafts, strengthened steel differential output cups, machined aluminum stub axles and 24 mm splined wheel hexes
  • Sealed, silicone-filled differentials with large ring and pinion gears
  • Fixed motor mount on the rear bulkhead with preset gear mesh
  • Heavy-duty modular composite chassis that keeps dirt and grit out of the driveline
  • Snap-lock battery retention without body clips or straps, adjustable for battery size
  • Rubber front impact cushion, lower front and rear skids and integrated nerf bars
  • 2085XL metal-gear steering servo with 450 oz-in torque and aluminum cooling fins
  • Heavy-duty double-shear suspension arms with steel pins, captured outer lower pins, adjustable roll center and steel tie bars
  • Aluminum GTX™ shocks with threaded bodies and 5.2 mm damper shafts

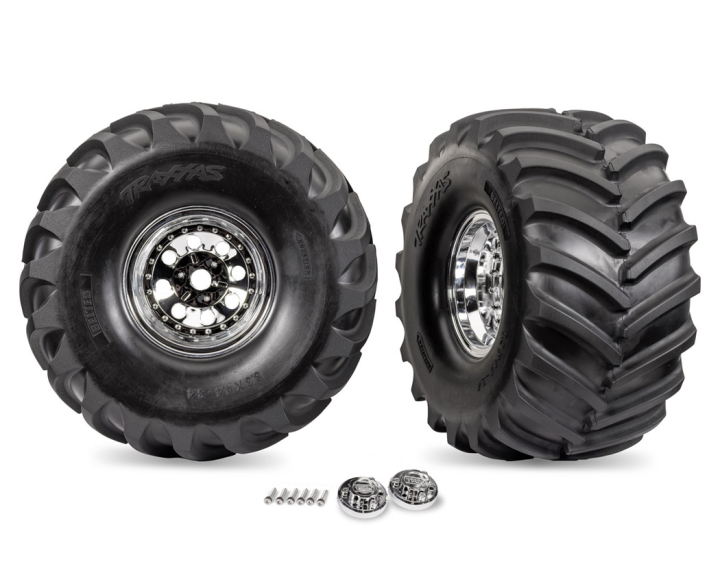

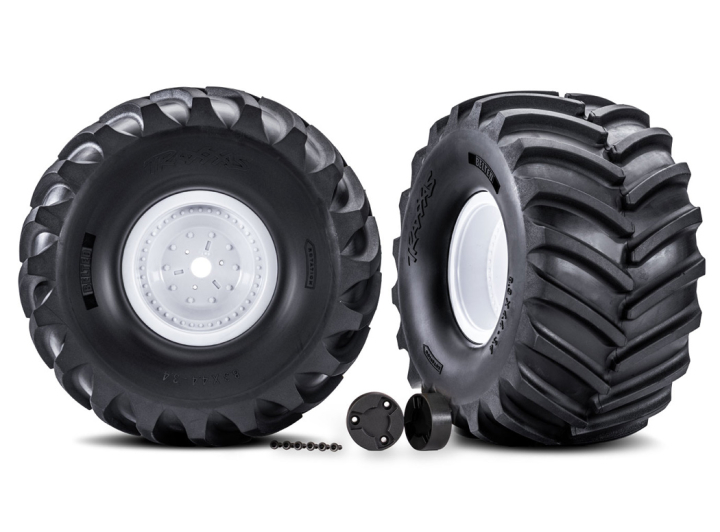

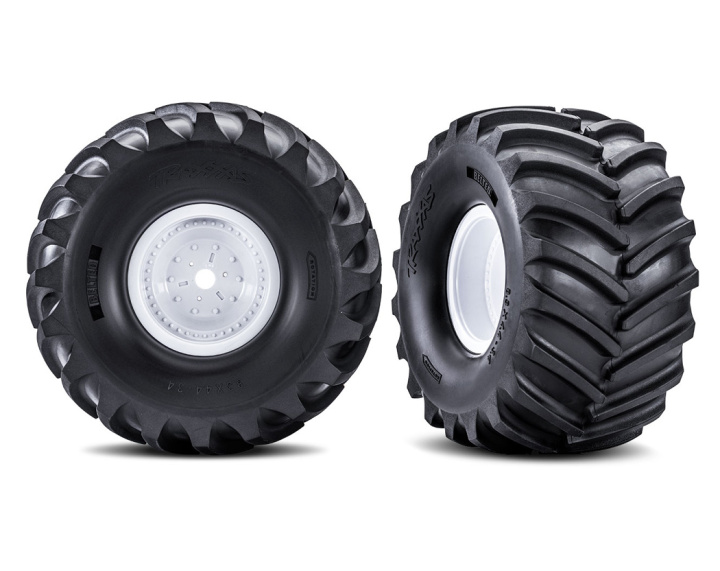

  • Belted monster truck tires with chevron tread

Included

  • X-Monster chassis with Velineon® 1200XL brushless motor
  • VXL-8s waterproof ESC with telemetry
  • Optional high-speed pinion gear
  • TQi™ 2.4 GHz radio system with TSM®
  • Maintenance tools

Required (not included)

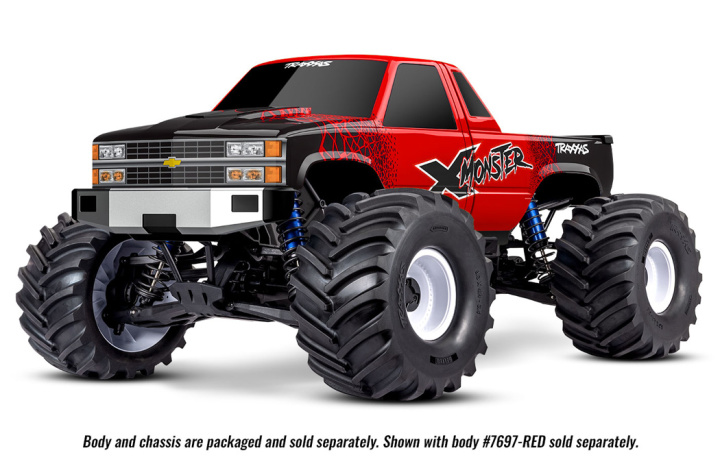

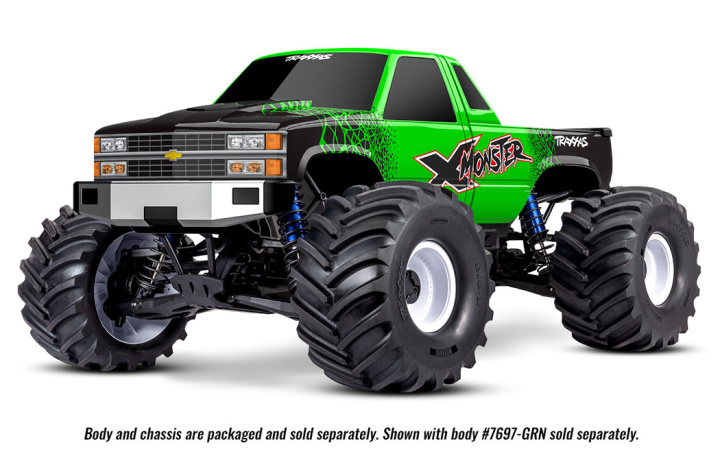

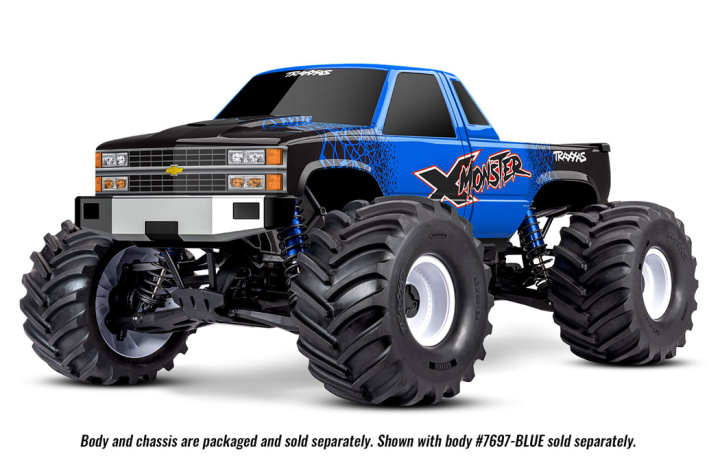

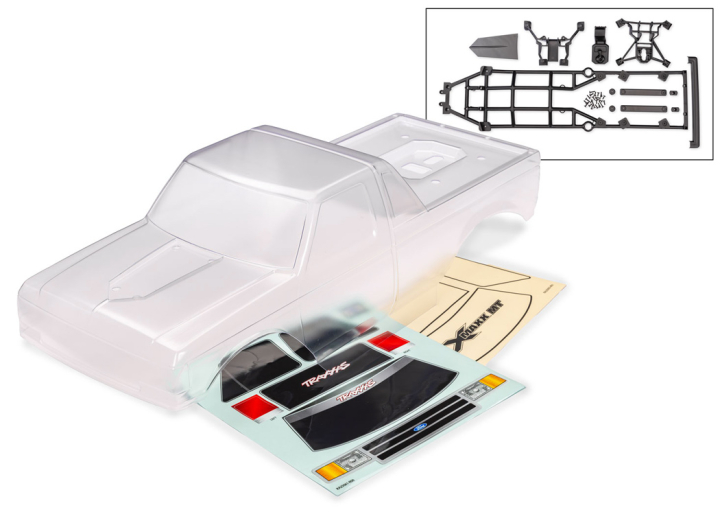

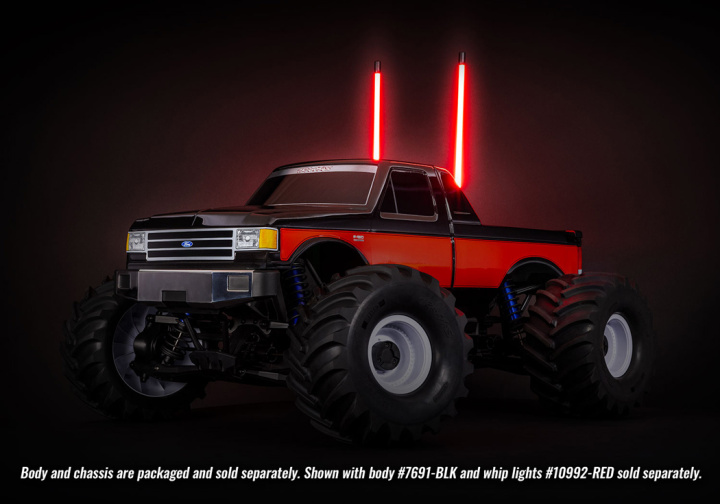

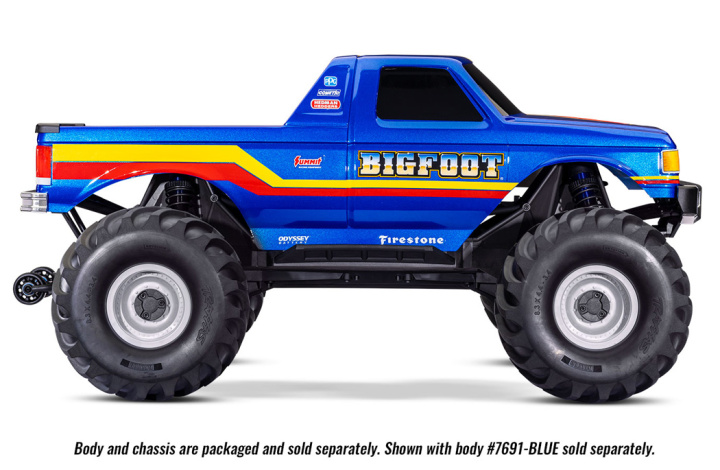

  • X-Monster body (several clipless Ford and Chevy bodies available)
  • 2 x 4-cell LiPo battery. Traxxas recommends 6700 mAh Power Cell 2890X or the Dual 4s Completer Pack 2997
  • Charger, for example Traxxas EZ-Peak® Live Dual 2973
  • 4 x AA alkaline batteries for the transmitter

Specifications

  • Scale: X-Truck®
  • Type: Monster truck chassis, 4WD
  • Skill level: 6
  • Top speed: 50+ mph (80+ km/h) with two 4S LiPo and optional pinion
  • Length: 779 mm
  • Width / track: 540 mm
  • Height: 355 mm
  • Wheelbase: 480 mm
  • Ground clearance: 107 mm
  • Weight: 8.66 kg
  • Driveline: Shaft-driven 4WD, single speed
  • Differentials: Sealed, hardened steel bevel gears, limited slip
  • Gear pitch: 1.0 metric pitch
  • Steering servo: 2085XL, metal gears, waterproof
  • Motor: Velineon® 1200XL, 1275 Kv, sensorless brushless, 5 mm shaft
  • ESC: VXL-8s™, brushless, waterproof
  • Battery: Not included (2 x 4S LiPo)
  • Battery compartment: 197 x 52 x 44 mm
  • Radio system: TQi™ 2.4 GHz with TSM®
Features
Car Type: Truck
Country of origin: US
Delivered as: RTR
Drive: 4WD
Lot size: 4
Operating Mode: Elektrisk
Size: Large Scale , X-truck
Suitable For: Experienced
Surface: Grass , Gravel
Water Protected: Yes
