RadioLink RLRC4GS-1 - RC4GS V3 Radio Incl. 2pcs R6FG Receiver
Features:
- 5 Channels for Cars, Boats, Lifebuoy & Tracked Robots
- Up to 400 Meters of Control Distance
- 30 Models Storage, Cruise Control System
- Gyro Integrated receiver and HV Servo Supported
- A switch can be set to active D/R
- Timer and Dual Mix Programmable Function
- Support Telemetry of Maximum 14S Model Battery Voltage
400 Meters Ground Distance
With the same FHSS spread spectrum as the AT9S Pro and 67 channels, pseudo-random frequency hopping enables RC4GS V3 to have superior anti-interference capabilities both within the same frequency band and across different frequency bands.
- With the transmitter chip based on the ARM M4 and the receiver chip utilizing the industrial 32-bit ARM Cortex-M0, we ensure superior anti-spark interference capabilities, even when operating with an oil tanker.
- The control distance is up to 400 meters.
5 Channels for Multiple Types of Models
RC4GS V3 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.
Real-time Telemetry of Model Battery Voltage
- Telemetry is capable of RSSI, receiver, and model battery voltage.
- RSSI and receiver voltage data will be displayed once binding is complete.
- The model voltage will be displayed by connecting the wire to the ESC and battery.
- And, telemetry of the maximum 14S (58.8V) battery is supported if bound with R8FGH, R16F; telemetry of the maximum 8S (33.6V) battery is supported if bound with R7FG or R8FG.
Cruise Control System
Crawler is difficult in controlling the throttle on the downhill slope, the cruise control system of RC4GS V3 helps the driver easily set the optimal throttle volume for RC crawler car.
Onboard Memory for 30 Models
RC4GS V3 can keep a maximum of 30 models parameters saved.
Subsidiary ID
RC4GS V3 is capable of an arbitrary ID designation among a maximum of 10 binding receivers, making long-distance rescue of RC cars or boats achievable.
A switch can be set to active D/R
A switch/button can be set to operate D/R during the maneuvering of the car, which helps drivers quickly switch D/R during the 4-wheel drive session without having to go to the LCD to press through all the menus each time.
Dual Programmable Mix Control
- 5-channel transmitter. CH1 is the rudder, CH2 is the throttle, and CH3 to CH5 can be programmed.
- Arbitrary 2 channels can be easily set as mix control, easy to understand.
- For Timber Truck: dual programmable mix control makes the front wheel mix with rear-wheel come true, which can reduce the turning radius.
Multiple Functions for the DSC Port
The DSC port of RC4GS V3 can be set as the Simulator Function (supports VRC Pro, CarX, Assetto Corsa Competizione, etc. simulators), or set as TBS Crossfire Function (by connecting the TBS Crossfire to the DSC port).
Receiver with Gyro Integrated - Customizable Gyro Sensitivity

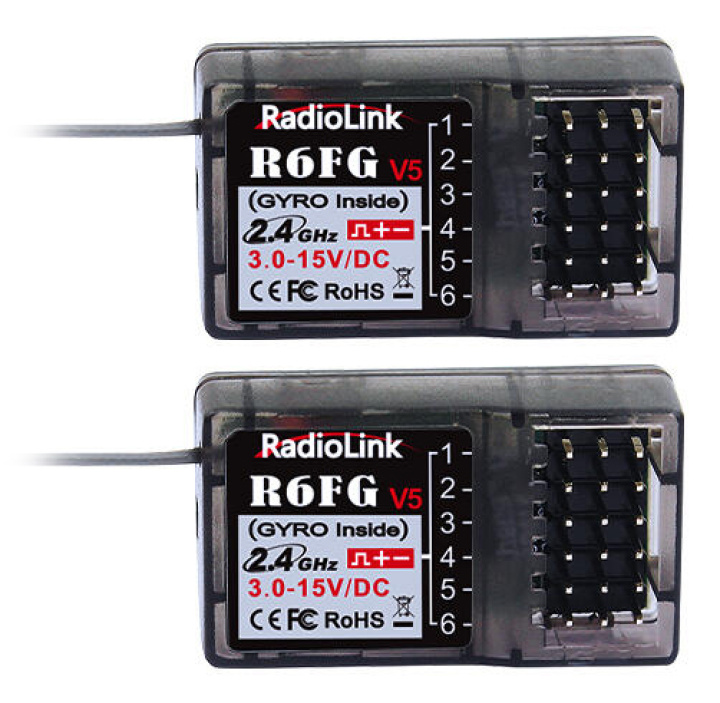

The included standard receiver R6FG is equipped with a built-in gyro and supports high voltage servos.
- It is anti-slip and keeps the uni-direction. With the integrated gyro in R6FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.
- The easy setting ensures better control of gyro stabilization.
- Gyro sensitivity can be adjusted by STD or CH3, which is controlled by VR switch by default to maximize or minimize the gyro function.
Performance Upgrade: Ergonomically Designed for Hours of Fun
Based on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip, and the location of each switch to achieve a more comfortable driving experience.
- Rational throttle trigger length and tension make it easy and accurate for throttle adjustment. Threaded design helps anti-skid when the drivers are in long-term practice or in hot weather.
- A lanyard will make the suitable weight to highly compatible with drivers control habits make the long drive more pleasant.
- The new FPV display holder design helps drivers enjoy the fun of driving. An aperture of the FPV display holder: 1/4" thread.
- User-friendly design for each operation and handling. Various styles switch for easy recognition and usage.
- The RC4GS V3 is easily updated by the computer via a USB cable.
- Intuitive software hint guides you through the process.
- Note: The USB port is only for upgrading; do not use it for charging.
Wide Compatible
- RC4GS V3 is packed with two R6FG receivers.
- The RC4GS V3 is also compatible with the 4-channel mini receivers R4FGM designed for Mini RC cars, the 6-channel receivers R6FG, R6F, the 8-channel receivers R8FG, R8EF, R8FGH, the 12-channel receiver R12F, and the 16-channel receiver R16F, which are designed for RC boats.

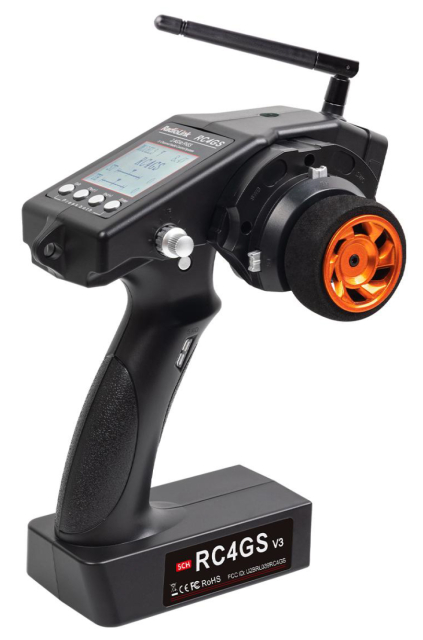

RC4GS V3 Transmitter Specs:
- Size: 174.8x116.4x224.2mm
- Antenna Length：106mm
- Battery Compartment Size：89x59x25mm (JST connector)
- Weight：319g
- Channel Quantity: 5
- Frequencies Band: 2.4GHz ISM band（2400MHz~2483.5MHz）
- Spread Spectrum Mode: FHSS 67CH pseudo-random frequency hopping
- Channel Resolution: 4096 with regular jitter of 0.25us
- RC4GS V3 Operating Voltage: 4.8-15V, 6pcs of AA batteries or a 2S-4S LiPo battery
- RC4GS V3 Operating Current: 80~120mA（Depending on power supply）
- Modulation Mode: GFSK
- Transmission Power: <20dBm
- Applicable Model Types: Cars, Boats & Robots
- Storage Model Quantity: 30
- Control Range: 400 meters (Maximum range tested in unobstructed areas free of interference)
- LCD Screen: 128x64 resolution, LCD backlight
- Low Voltage Alarm: Yes, when less than 7.2V or customized on a 2S-4S battery, a low voltage alarm can be set for each model
- Compatible Receivers: R6FG (Standard), R16F, R12F, R8FGH, R8FG, R8EF, R7FG, R6F & R4FGM
- CRSF Protocol Supported: Is compatible with TBS Crossfire by connecting the TBS Crossfire to the DSC port of the RC4GS V3
- Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi can be connected with the SBUS signal
- Operating Temperature: -30° to 85°C
R6GF Receiver Specs:
- Size: 35x20x13mm
- Antenna Length: 205mm
- Weight: 6g
- Channel Quantity: 6
- Operating Voltage: 3~12V DC
- Operating Current: 30mA
- Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum: FHSS 67 signal channel pseudorandom frequency sequence hopping
- Channel Resolution: 4096, 0.25us per section
- Gyro Mode: Receiver with gyro-integrated, customizable gyro sensitivity
- Suitable for: Cars, Boats & Robots
- Control Range: 400 meters
- Compatible transmitters: RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS, T16D, T12D, T8FB & T8S
