RadioLink RLRC6GS-1 - RC6GS V3 Radio Incl. 2pcs R7FG Receiver
Features:
- 7 Channels for Cars, Boats, Lifebuoy & Tracked Robots
- Up to 600 Meters Control Distance
- 30 Models Storage, Cruise Control System
- Gyro Integrated and HV servo-supported
- Timer and FPV Head Track Function
- Built-In Telemetry of Maximum 14S Model Battery Voltage
- A switch can be set to active D/R
- Compatible with R7FG (included), R16F, R12F, R8FGH, R8FG, R8EF, R6FG, R6F & R4FGM receivers
600 Meters Ground Distance
With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC6GS V3 have superior anti-interference ability both in the same frequency band and different frequency bands.
- With the transmitter chip of ARM M4 and the receiver chip as the industrial 32bits ARM Cortex M0, ensuring the superior ability of anti-spark interference even enjoy with an oil tanker.
- The control distance is up to 600 meters.
7 Channels for Multiple Types of Models
RC6GS V3 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.
Real-time Telemetry of Model Battery Voltage
- Telemetry is capable of RSSI, receiver, and model battery voltage.
- RSSI and receiver voltage data will be displayed once binding is complete.
- The model voltage will be displayed by connecting the wire to the ESC and battery.
- And, telemetry of the maximum 14S (58.8V) battery is supported if bound with R8FGH, R16F; telemetry of the maximum 8S (33.6V) battery is supported if bound with R7FG, R8FG.
Cruise Control System
A crawler is difficult to control the throttle on the downhill slope, the cruise control system of RC6GS V3 helps the driver easily set the optimal throttle volume for the RC crawler car.
Onboard Memory for 30 Models
The RC6GS V3 can keep a maximum of 30 models parameters saved.
Subsidiary ID
RC6GS V3 is capable of an arbitrary ID designation among a maximum of 10 binding receivers, making long-distance rescue of RC cars or boats achievable.
A switch can be set to active D/R
A switch/button can be set to operate D/R during the manuvering of the car, it helps drivers quickly switch D/R during the 4-wheel drive session without having to go to the LCD to press through all the menus each time.
Dual Programmable Mix Control
- 7-channel transmitter.
- Arbitrary 2 channels can be easily set as mix control, easy to understand.
- For crawler: CH1 is the rudder, CH2 is the throttle, CH3 can be set up to control the transfer case, CH4 can be set up to control the shift gear, CH5 can be set up to control the front locker, CH6 can be set up to control the rear, and CH7 can be set to control the capstan.
- For Timber Truck: dual programmable mix control makes the front wheel mix with rear-wheel come true, which can reduce the turning radius.
Multiple Functions for the DSC Port
The DSC port of RC6GS V3 can be set as the Simulator Function(support VRC Pro, CarX, Assetto Corsa Competizione, and etc. simulators), the FPV Head Track Function(3-axis or 2-axis track can be selected), or the TBS Crossfire Function.
FPV Head Track Function
The RC6GS V3 used FPV goggles to control the up, down, left, and right movement of the camera on the RC car. What's more, RC6GS V3 is compatible with TBS Crossfire by connecting it to the DSC port. Get more than 600 meters of controller distance by connecting to the TBS Crossfire, and work with the FPV head track function to fully enjoy the fun of First-Person View of racing or crawling.
Receiver with Gyro Integrated - Customizable Gyro Sensitivity
- Standard receiver R7FG built-in gyro and supports high voltage servo.
- It is anti-slip and keeps the uni-direction. With the integrated gyro in R7FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.
- The easy setting ensures better control of gyro stabilization.
- Gyro sensitivity can be adjusted by STD or CH3, which is controlled by the VR switch by default to maximize or minimize the gyro function.
Performance Upgrade: Ergonomically Designed for Hours of Fun
Based on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip, and the location of each switch to achieve a more comfortable driving experience.
- Rational throttle trigger length and tension make it easy and accurate for throttle adjustment. Threaded design helps anti-skid when the drivers are in long-term practice or in hot weather.
- A lanyard (comes with RC6GS V3) to make the suitable weight highly compatible with drivers' control habits, making the long drive more pleasant.
- The FPV display holder design helps drivers enjoy the fun of driving. An aperture of the FPV display holder: 1/4" threads (English screw)
- User-friendly design for each operation and handling. Various styles switch for easy recognition and usage.
USB Upgradeable
- The RC6GS V3 can be easily updated by the computer via a USB cable.
- Intuitive software hint guides you through the process.
- Note: The USB port is only for upgrading, do not use it for charging.
The RC6GS V3 is delivered with two R7FG receivers.
- The R7FG is a 7-channel receiver with gyro built-in, high-voltage servo support, and model voltage telemetry support.
- The RC6GS V3 is also compatible with the 4-channel mini receivers R4FGM designed for Mini RC cars, the 6-channel receivers R6FG, R6F, the 8-channel receivers R8FG, R8EF, R8FGH, the 12-channel receiver R12F, and the 16-channel receiver R16F, which are designed for RC boats.

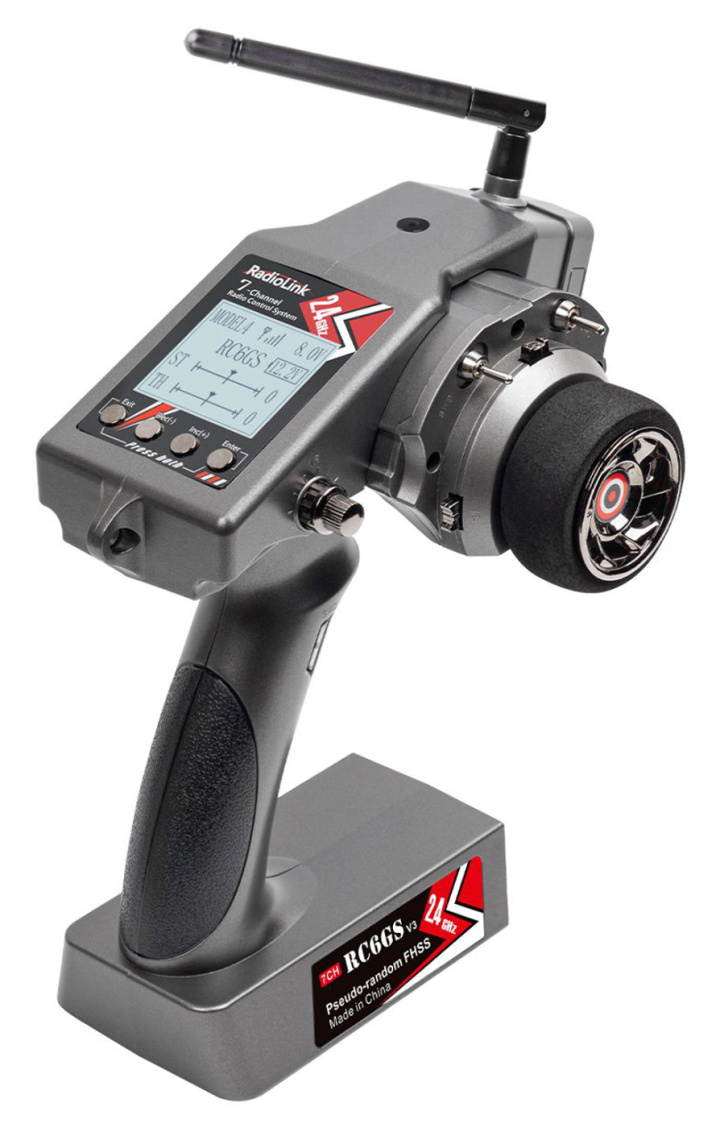

RC6GS V3 Transmitter Specs:
- Size: 174.8x116.4x224.2mm
- Antenna Length: 106mm
- Battery Case Dimension: 89x59x25mm (JST connector)
- Weight: 319g
- Channels: 7
- Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum Mode: FHSS 67-channel pseudo-random frequency sequence hopping
- Channel Resolution: 4096 with regular jitter of 0.25us
- Operating Voltage: 4.8-15V, 6pcs of AA batteries or 2S-4S LiPo battery
- Operating Current: 80-120mA
- Modulation Mode: GFSK
- RF Power: <20dBm
- Applicable Model Types: Crawlers, Tanks, Caterpillars, Remote Controlled Lifebuoy, and other types of RC cars or boats, Robots
- Memory: 30 models
- Control Range: Up to 600 meters (Maximum range tested in unobstructed areas free of interference)
- LCD Screen: 128x64 resolution, LCD backlight
- Low Voltage Alarm: Yes, when less than 7.2V or customized on a 2S-4S battery, a low voltage alarm can be set for each model
- Low RSSI Alarm: Yes
- Low Model Battery Voltage Alarm: Telemetry of maximum 8S (33.6V) model battery voltage
- Compatible Receivers: R7FG (Standard), R16F, R12F, R8FGH, R8FG, R8EF, R6FG, R6F & R4FGM
- CRSF Protocol Supported: Is compatible with TBS Crossfire by connecting the TBS Crossfire to the DSC port of the RC6GS V3
- FPV Head Track Function: Supported
- Simulator Function: Supported
- Timer Function: Supported
- Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi can be connected with the SBUS signal
- Operating Temperature：-30° to 85°C

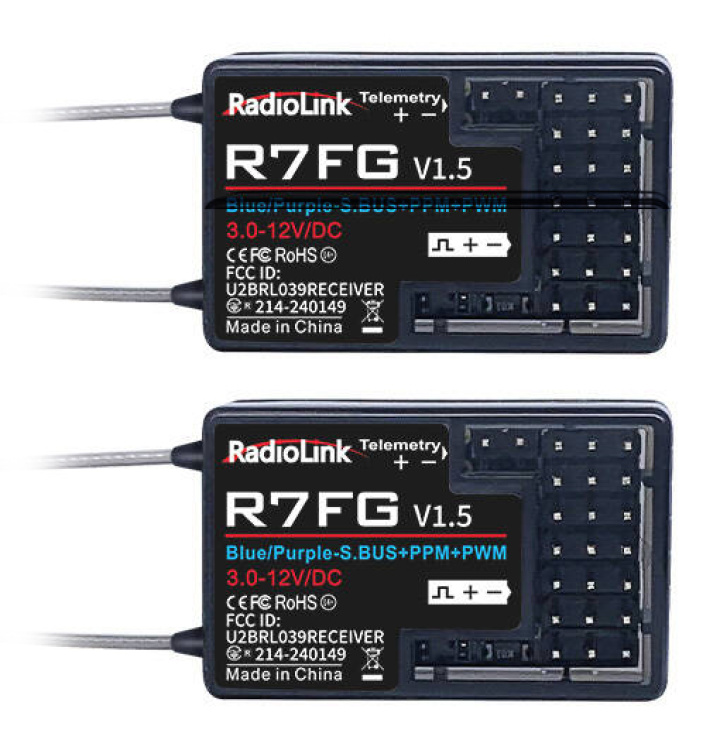

R7FG Receiver Specs:
- Size: 35x22x14mm
- Antenna Length: 205mm
- Weight: 6g
- Channel quantity: 7
- Signal Output: PWM+PPM+SBUS
- Voltage Range: 3-12V
- Operation Current: 30mA (based on power voltage)
- Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum Mode: FHSS, 67-channel pseudo-random frequency hopping
- Section Precision: 4096, 0.25us per section
- Real-time Telemetry： The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R7FG, no extra module is needed. Telemetry of maximum 8S (33.6V) battery supported.
- Gyro Mode: Receiver with gyro-integrated, customizable gyro sensitivity
- Model Applications: Cars, Boats & Robots
- Control Distance: 600 meters on the ground
- Compatible transmitter: RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS, T16D, T12D, T8FB, T8S
