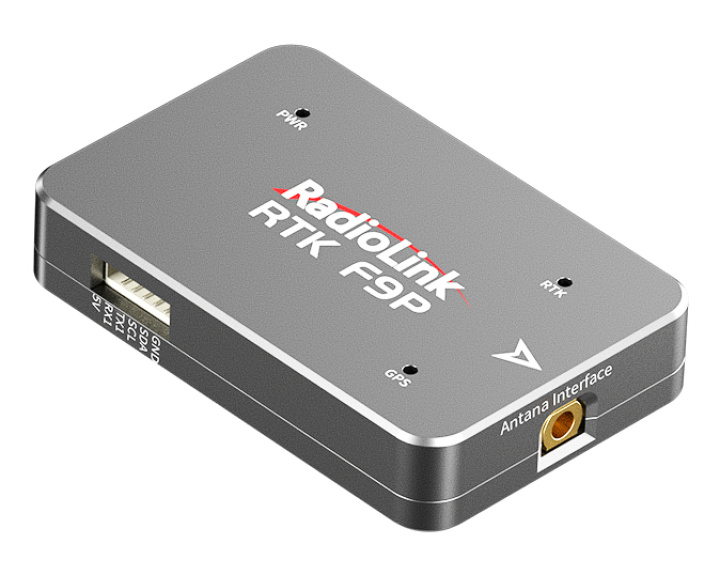

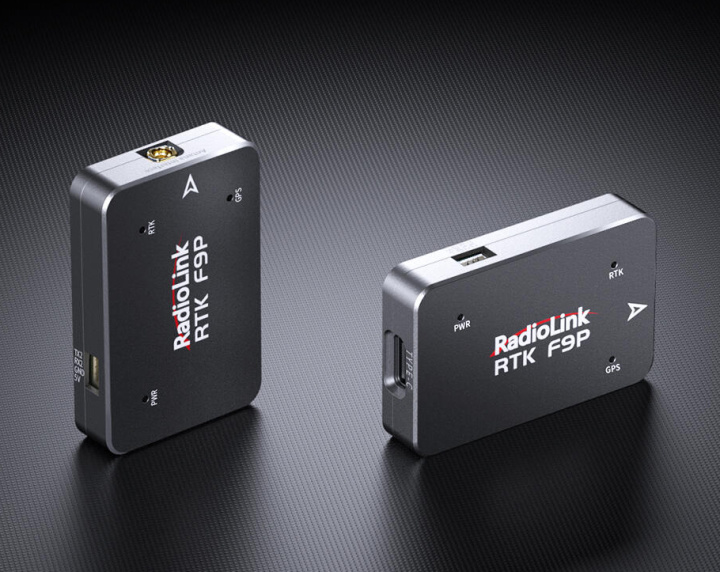

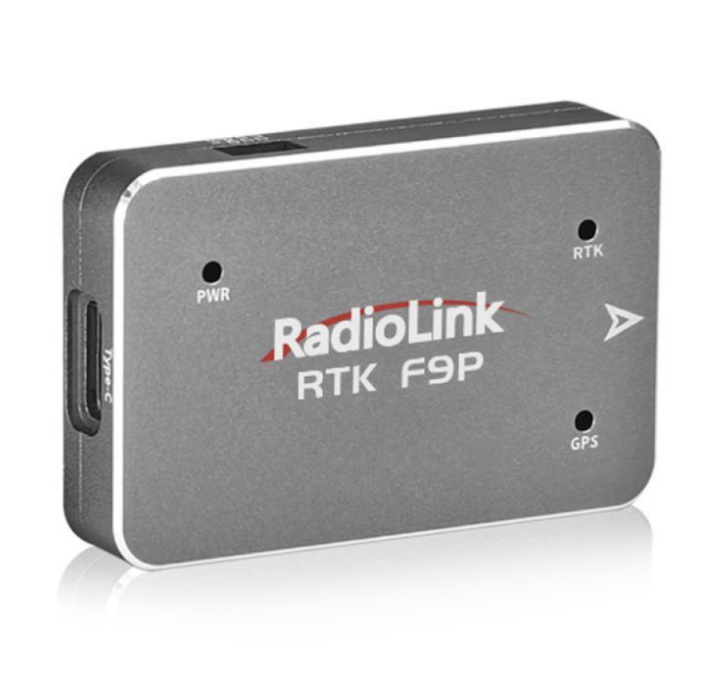

Radiolink RTK F9P - Zero-loss PCB Antenna Feeder
- ublox F9P Module
- Zero-loss PCB Antenna Feeder
- Low-noise Circuit Design
- Built-in Geomagnetic Chip
- Complete Interface
- All-Round Protection Design

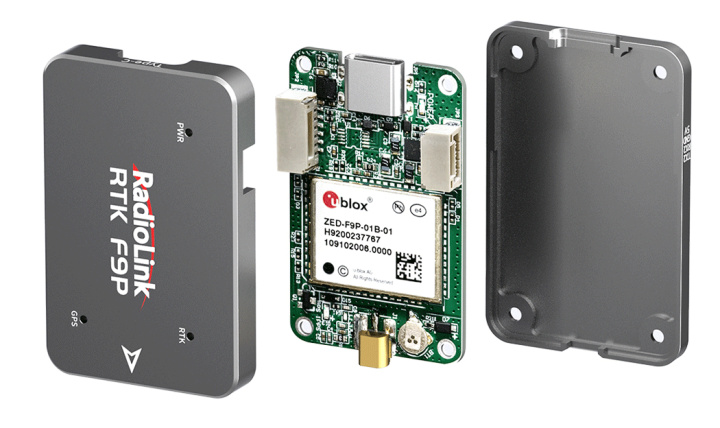

ublox F9P Module
Adopts the Ublox F9P, which is the best-performance industry RTK module.
Zero-loss PCB Antenna Feeder
The trace impedance from the SMA antenna to the RTK module RF input pin is calculated and tested with a network analyzer to achieve almost zero loss.
Low-noise Circuit Design
Using 3PEAK low ripple fast response LDO TPL910A, the output voltage ripple is as low as 4.5uVrms, and the digital-analog circuit isolation PCB routing makes the F9P performance perfect.
Built-in Geomagnetic Chip
Built-in isenTEK IST8310, the mainstream geomagnetic chip for drone flight controller.

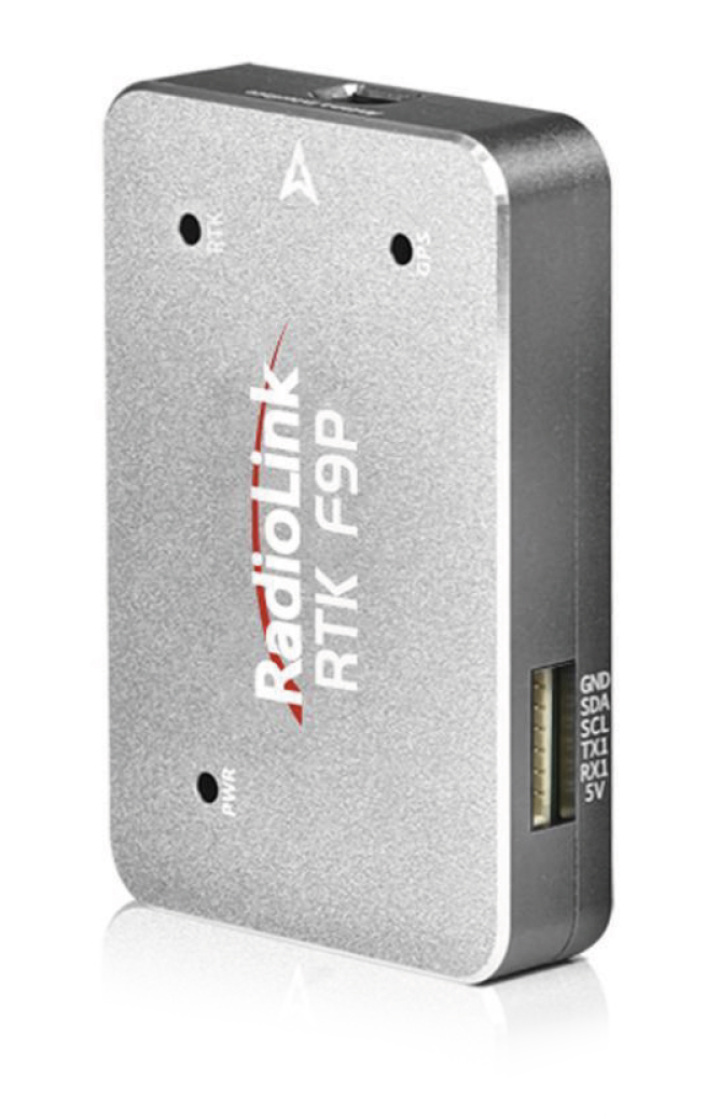

Complete Interface
One USB port, 2 UART ports, and one I2C interface(the same port as UART1) to adapt to the mainstream interfaces of drones.
All-Round Protection Design
The antenna end is equipped with TVS and ESD protection tubes, and the data interface is equipped with ESD tubes that ensure the safety and reliability of the RTK receiver, RTK BaseStation, and RTK Rover.

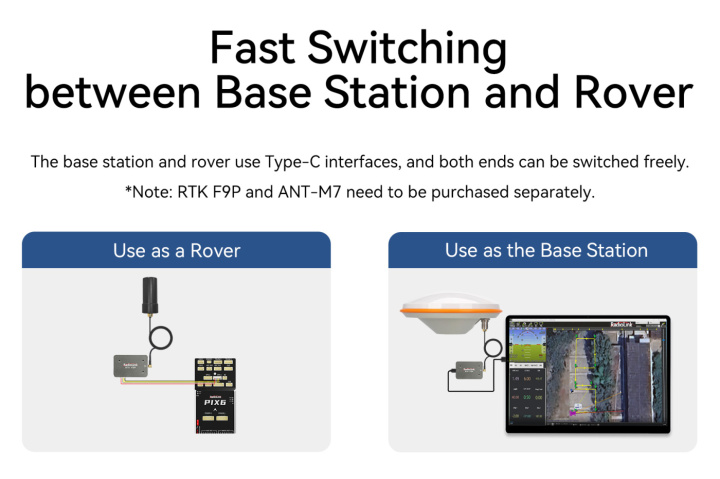

Switch RTK Mode in 10 Seconds
The update rate is up to 20Hz, effectively reducing positioning errors. With a convergence time of less than 10 seconds, the RTK mode can be switched instantly within 10 seconds.
Cost-effective Solution

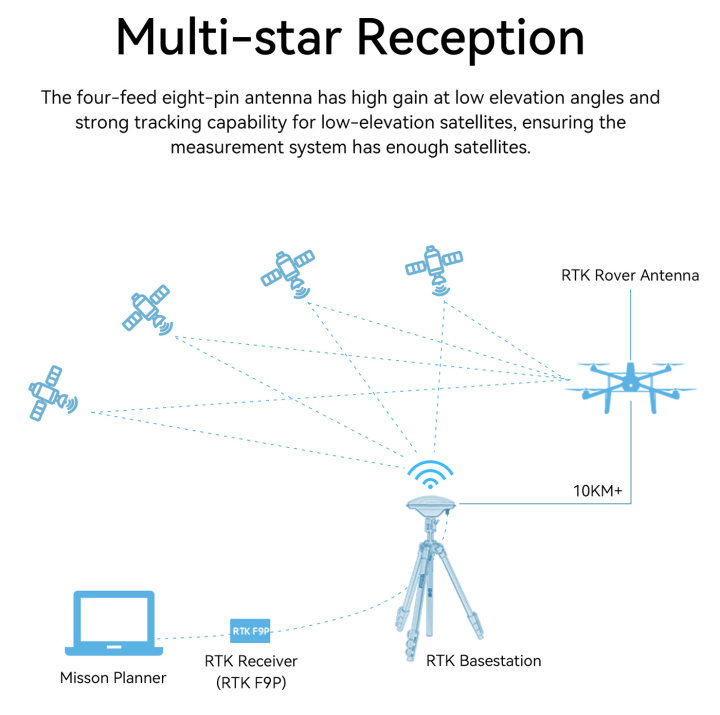

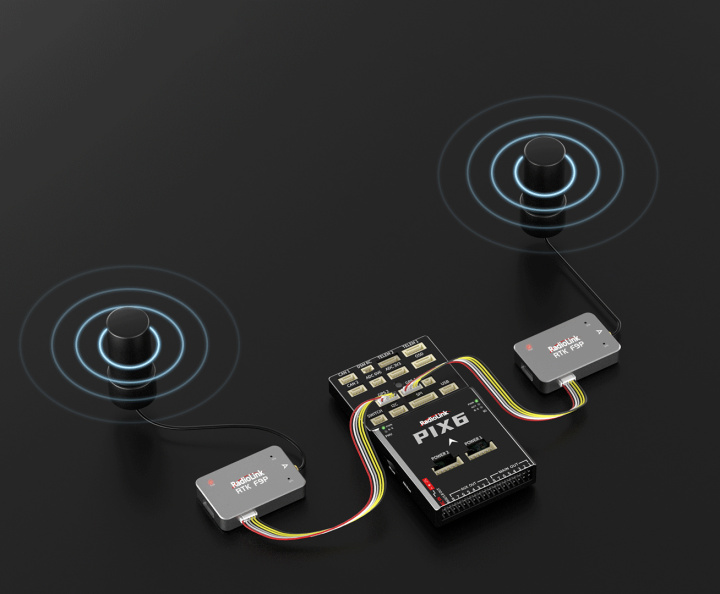

RTK kit (RTK receiver RTK F9P+ base station antenna ANT-B10+ rover antenna ANT-M7), combined with the PIX flight control series, can be used for the Radiolink automatic driving control system for agricultural machinery vehicles which support 90-degree on-the-spot steering*, or the M435 Heavy Lift Drone, etc. It can provide high-precision positioning within the communication range of the mobile station and is suitable for many professional scenarios such as agriculture, surveying and mapping, inspection, express delivery, takeout, and rescue material delivery.
RTK-F9P Specs:
- Satellite Receiver Type: RTK120
- GNSS: BDS, Galileo, GLONASS, GPS, QZSS
- Concurrently Transmit (Receive) Navigation Satellite Systems: 4
- GPS: L1 C/A, L2C
- GLONASS: L1 OF, L2 OF
- GALILEO: E1B/C, E5B, BDS
- BeiDou: B1I, B2I
- QZSS: L1C/A, L2C
- Positioning Update Rate: RTK 20Hz
- Positioning Accuracy: RTK 0.01M+1ppm CEP
- Convergence Time: RTK<10S
Start Times:
- Cold start: 24 seconds
- Auxiliary start: 2 seconds
- Recapture: 2 seconds
Sensitivity:
- Tracking: –167dBm
- Cold start: –148dBm
- Hot start: –157dBm
- Recapture: –160 dBm
- Anti-interference: Active CW detection and elimination, onboard filter
- Security: Advanced anti-spoofing algorithm
- Serial Port：2 UART ports, and one I2C interface(the same port as UART1)
- USB Port: 1
- Antenna: Multi-star multi-frequency antenna
- Time Pulse: Configurable from 0.25hz to 10mhz
- Protocol: NMEA, UBX binary, RTCM 3.x
- Input Voltage: 4.5 V-6V
- Operating Temperature: –40°C to +85°C
- SAize: 49x31.6x9.6mm
- Weight: 22g
