RLT8FBM2-1 - T8FB Mode-2 RC Transmitter with 2x R8EF Receiver
- Easy to Use, Certainly Worth Its Value
- Best Choice for Beginners
- Compatible with these receivers: R16F, R16SM, R12F, R8EF, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F & R4FGM
2000 Meters Control Distance
T8FB(BT), with the same FHSS algorithm of AT9S Pro and 67 channels pseudo-random frequency sequence hopping, the chip TI CC2500(same as the Open TX Frsky X9D) and the transmission rate (which three times faster than Open TX), achieving the better anti-interference ability to both the same frequency band and different frequency bands. The control distance of T8FB is 2000 meters(1.24Miles) in air.
0.25us Gimbal Precision
The optimal design of the PCB layout ensures maximum PWM jitter of 1.84us with a standard of just 0.25us. It is 14 times better than regular jitter 7us of the mainstream 8-channel transmitter in the market. The same joystick components as AT9S Pro.
USB Upgrade - APP Parameter Setup
Parameters can be easily set up and modified with an Android or iOS mobile phone APP connected via Bluetooth. Parameters can also be set up by computer tools connected via a USB cable. USB upgrades with new functions added, and keeps T8FB(BT) always advanced. Countless sets of model data can be stored.
- * T8FB(BT) firmware upgrade software is compatible with win7, win8, win10, and XP OS.
- * Parameter setup APP supports both Android and iOS.
- * The App displayed language will automatically be set to the mobile.
Real-time Built-in Telemetry
Real-time model data feedback function allows users to receive the transmitter voltage and RSSI information. When paired with receiver R16F, R8FGH, R8FG, or R7FG, the model voltage will display on the mobile phone APP.
Programmable Mix Control
Channels five through eight can be programmed to any advanced setting Flight modes are set with the two 3-way switches in the flight controller PIX by default. Even beginners can enjoy T8FB without a manual.
Adapts to Multiple Models
Adaptable models include Fixed Wing, Glider, Multicopter, Car, Boat, and Robot. The transmitter automatically switches layout depending on the selected mode. The receiver with a 21cm antenna is also perfect for easy RC boat control.
Compatible with Multiple Receivers - SBUS/PPM/PWM Supported
Standard receiver R8EF supports SBUS, PPM, and PWM signals output, no need for extra cables or any signal converter, reducing the weight of the aircraft. When outputting the SBUS and PPM signals, channels 3 to 8 can also output corresponding PWM signals at the same time and work with the T8FB turn switch to control PTZ and landing gear. With the T8FB in hand to have all functions, R/C fans can fully enjoy with fun!
Low Consumption of Battery
Switching Mode Power Supply (SMPS) keeps the operating current of T8FB less than 80mA. With a 3S 1800mAh LiPo battery in T8FB(BT), the RC fun lasts more than 20 hours.
Wide Operating Voltage Tolerance
Wide Operating Voltage Tolerance：4.8V~18V. Universal JST connector allows T8FB(BT) easily adapted for various battery layouts: 4pcs AA batteries or a 2S-4S LiPo or 18650 Lithium battery.

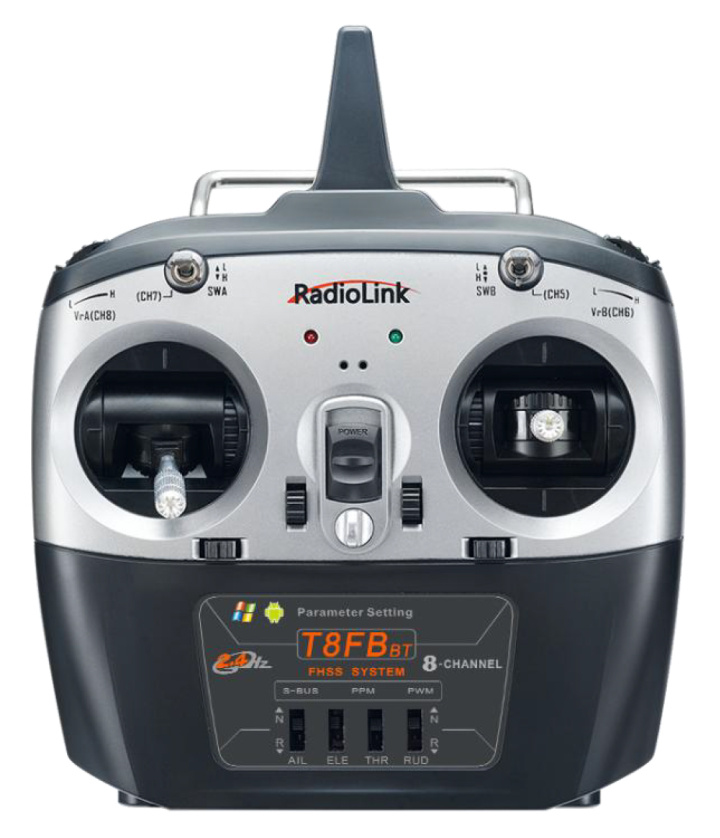

T8FB(BT) Transmitter Specs:
- Size: 173x102x206mm
- Weight: 0.47kg
- Battery Case Dimensions: L115xW35.5xH24mm
- Channels: 8, 5-8 channels can be programmed
- Signal Output: PWM, SBUS & PPM
- Adaptable Models: Fixed-wing, Glider, Multicopter, Car, Boat, Robot
- Output Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）
- Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping
- Section Precision: 4096, 0.25us per section
- Modulation Mode: GFSK
- Channel Bandwidth: 400KHz
- Channel Pacing: 1200KHz
- Adjacent Channel Rejection: >36dBm
- Transmitter Power: <100mW (20dBm)
- Reception Sensitivity: -104dBm
- Transmission Rate：38kbps
- PWM Output Range: 1.0ms~2.0ms
- Cycle: 15ms/per frame
- Operating Voltage: 4.8~18V
- Operating Current: <80mA
- Control Distance: About 2000 meters in the air (actual distance depends on the flight environment)
- Simulator Function: When bound with receiver R16F/R12F, support open-source simulators such as TRYP FPV, AeroFly, Uncrashed, Liftoff, FPV LOGIC, and Velocidrone - compatible with macOS and Windows systems, no external dongle needed.
- Compatible Receivers: R8EF(Standard), R16F, R16SM, R12F, R8FM, R8SM, R8XM, R8FG, R8FGH, R7FG, R6FG, R6F, R4FGM
- Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi can be connected with the SBUS signal
- Operating Temperature：-30° to 85°C

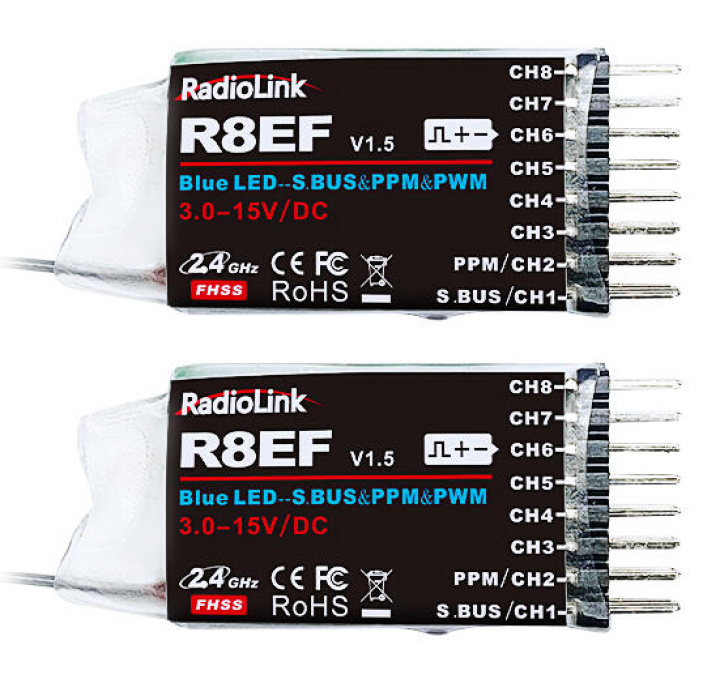

R8EF Receiver Specs:
- Size: 41.5x21.5x11.5mm
- Antenna Length: 210mm
- Weight: 7g
- Channels: 8
- Signals: SBUS, PPM & PWM
- Operating Voltage: 3-15V
- Operating Current: 38-45mA@5V
- Output Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
- Section Precision: 4096, 0.25us per section
- Adaptable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
- Control distance: 2000 meters in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
- Compatible transmitter: T16D, T12D, T8FB, T8S, RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS
- Operating Temperature: -30° to 85°C
