Kontakt AS150 Anti-Spark 7mm röd/svart 2+2

Artnr:
B9305
Lev.artnr:
B9305
Lagersaldo:
33 st
Cirkapris: 163 kr
  • Information
    • Low Resistance Gold Plating
    • Anti-Spark (Anti-Arching) Design for HV batteries
    • Max load: 150-200A

    • Connector Diameter: 7 mm
    • Maximum Diameter of Wire Insulation: 7.3 mm
    • Maximum Stripped Wire Diameter: 6.9 mm
    • Open side for easier soldering

    • Connect negative (black) connector first, then red (positive)
    • Disconnect red (positive) connector first, then the black (negative)

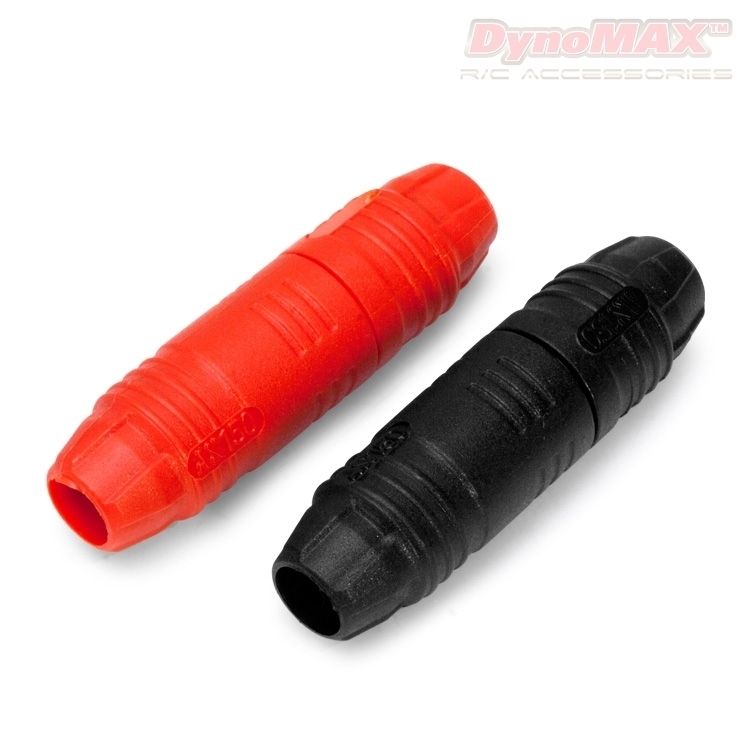

    • Pass the wire through the housing, then solder the connector. Thread the two parts together.

    • Size: L49.5 x D13.5 mm
    • Weight: 27.8 g

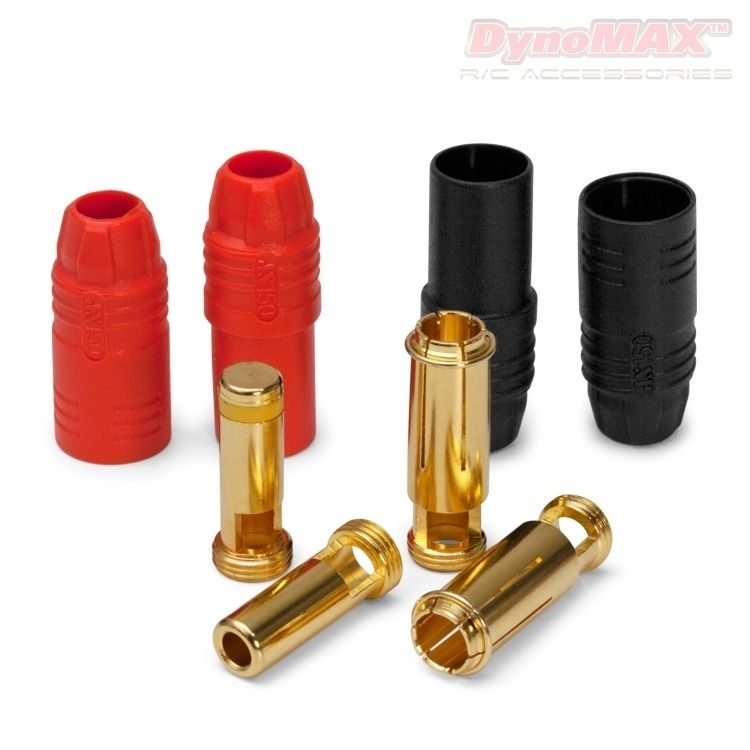

    • Package includes: 2+2 pcs of AS150 connectors
