XeRun XR8 Plus G2S 200A 2-6S Fartreglage

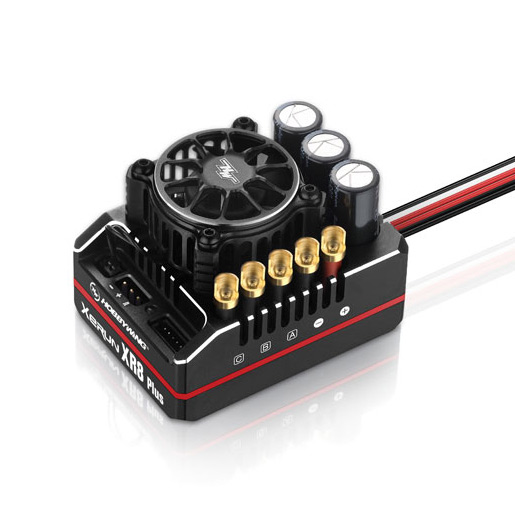

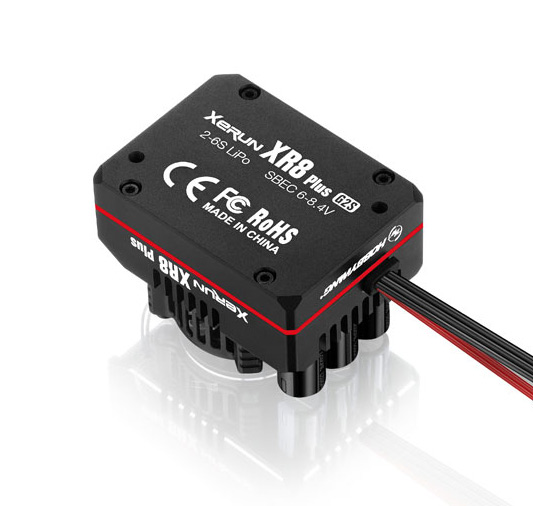

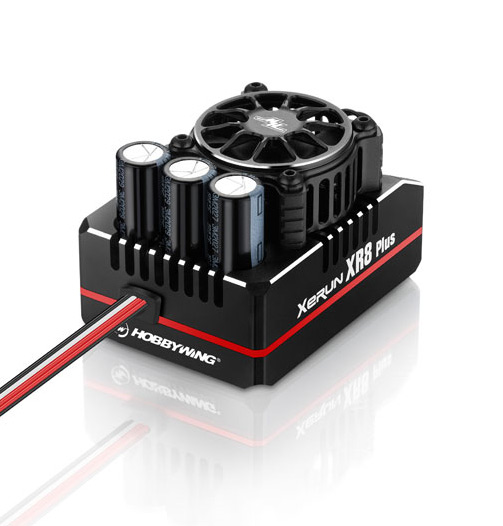

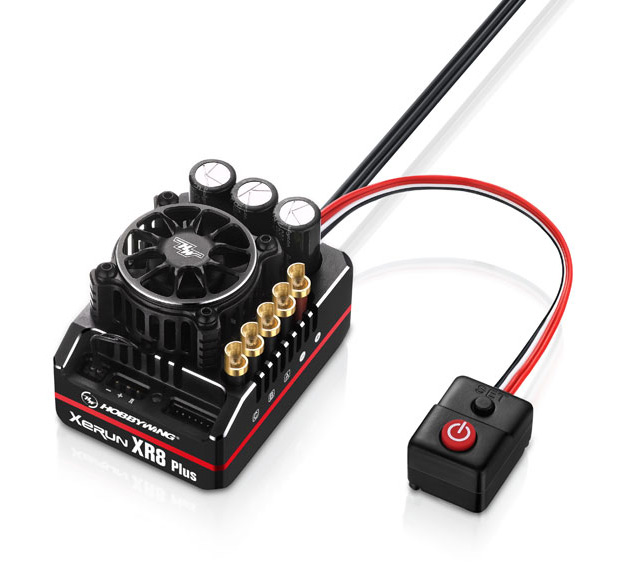

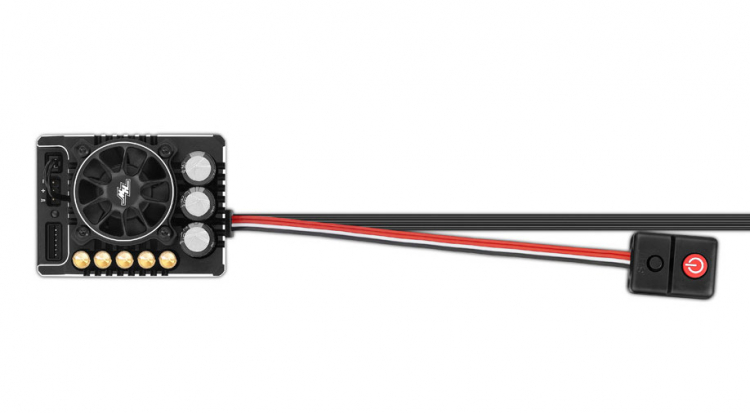

Hobbywing XeRun XR8 Plus G2S ESC

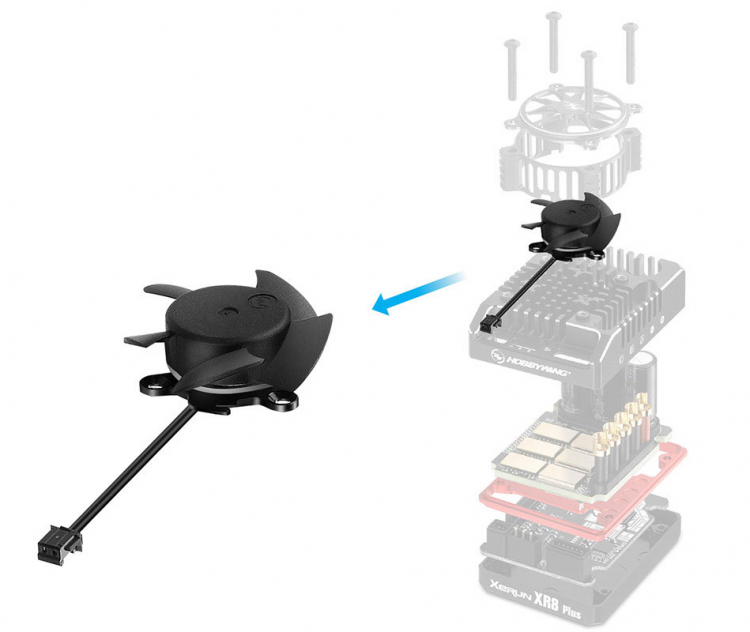

• Durable Frame-less Fan
• Built-in 5 common profiles, suitable for all 1/8 Racing, select and use instantly. (e.g. Zero timing-Blinky mode, 1/8 Off-Road Racing, 1/8 On-Road Racing, 1/8 GT Racing, 1/8 Sport mode).
• There are 30 built-in adjustable parameters to set various power requirements. The parameters can be imported and exported, which is convenient for drivers to communicate with and learn from each other.
• Supports the firmware upgrade of the ESC (The multi-function LCD programming box or OTA Programmer is needed to purchase). You can enjoy the latest functions.
• Supports 48 degrees Boost and Turbo timing. When matching with XERUN 4268/4274 G3 motor, the Max. Speed can be promoted by 50%, easily win your rival.

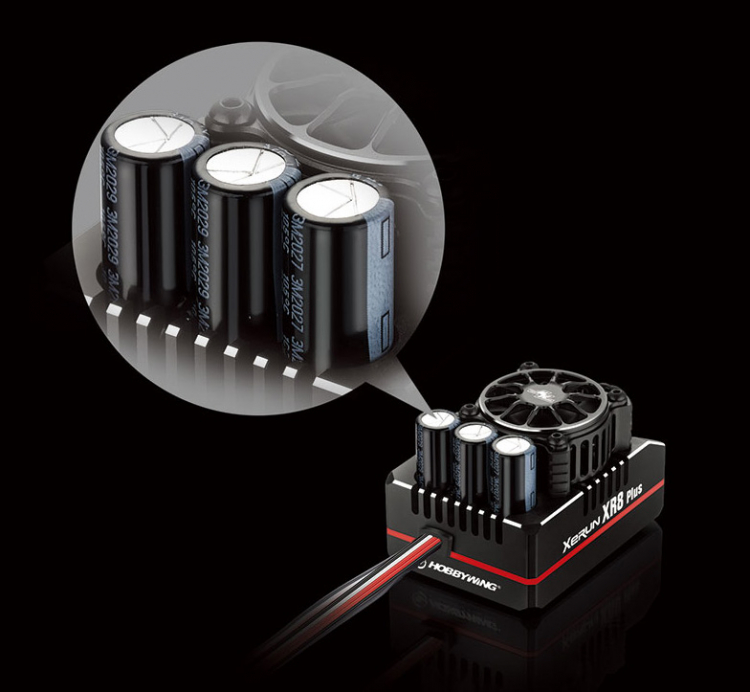

• Multiple function: Low voltage protection, thermal protection of the ESC, motor and capacitor.
• Built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step: 0.1V) for usage with servos & other devices require different voltages.
• The built-in reverse connection protection circuit of the ESC avoid the damage to the ESC due to reverse connection.
• The record function of real-time data: Open this function by connecting the ESC with HW Link (OTA Programmer is needed to purchase) and mobile App can check throttle quantity, Voltage,
• Current, Temperature, RPM and other data in real time, and obtain the running status of the ESC and motor.
• The record function of off-line data: It can not only read out the extreme value data such as the maximum temperature of the esc and motor,maximum RPM of the motor through the LCD program box or HW link app (OTA Programmer is needed to purchase), but also view the historical running data (graph) in the data record in HW link app (OTA Programmer is needed to purchase

• Cont./Peak Current: 200A / 1080A
• Motor Type: Sensored / Sensorless Brushless Motors
• Applications: 1/8 On-Road/Off-Road/Truggy Racing
• LiPo Cells: 2-6S LiPo
• BEC Output: 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A (Switch-mode)
• Cooling Fan: Powered by the stable BEC voltage of 6-8.4V
• Size: 56.1(L) x 42.1(W) x 38.5(H)mm
• Weight: 122g (W/O Wires)
• Connectors: No
• Programming Method: Multifunction LCD Program Box, OTA Programmer
