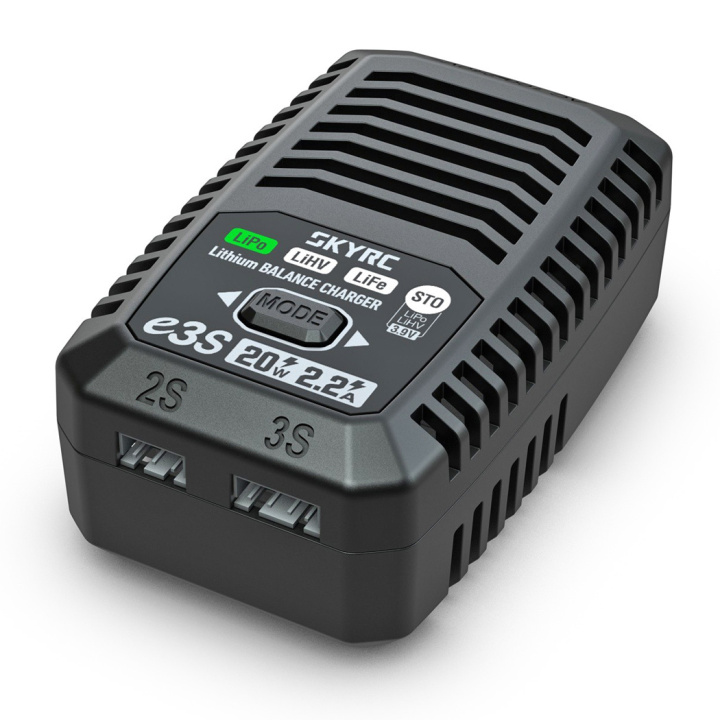

SkyRC SK100219-01 - e3s Lithium 2-3s Balance Charger 240VAC
Balanced Charging Plug and Play
Unleash the full potential of your batteries with e3S. Its balanced charging keeps every cell perfectly aligned, boosting efficiency and extending lifespan. Just plug in via the balance port and let e3S do the rest— effortlessly powerful, flawlessly balanced.
Versatile for Multi-Chemistry - Do More with One Charger
e3S charger is expertly crafted to manage multiple chemistries with precision and ease:
- LiPo: Lithium Polymer - High-performance energy for demanding tasks
- LiHV: High Voltage Lithium Polymer - Extended capacity with high-voltage efficiency
- LiFe: Lithium Iron Phosphate - Rugged durability and unmatched safety
Faster Charging with More Power
e3S charger delivers up to 20W of charging power with a maximum output of 2.2A. Enjoy faster, more efficient charging and keep your batteries primed for action!
Storage Mode - Long Live Lithium!
When your power packs take a break, e3S steps in with Storage Mode, adjusting the battery to its ideal voltage. This ensures your lithium cells stay healthy and ready for action, even during downtime.
Tri-Color LEDs - Charging Status Visualized
The e3S charger’s tri-color LED indicators provide a clear, intuitive way to track charging progress. Effortless and seamless, monitoring has never been easier.
- Standby: Red and Green Alternating Flashing
- Charging: Pulsing Green
- Charging Complete: Green Solid Light
- Storage Mode: Pulsing Yellow
- Storage Complete: Yellow Solid Light
Specifications:
- Case Size: 92 × 58 × 36 mm
- Weight: Approx. 104g
- nput: AC 100V-240V 50/60Hz
- Battery Type: LiPo / LiHV / LiFe
- Cells: 2S, 3S
- Battery Connector (balance): JST-XH
- Charging Current: 2S: 2.20A ±10% (non-adjustable) / 3S: 1.60A ±10% (non-adjustable)
- Charging Power: 20W ±2W
- Storage Mode: LiPo / LiHV
- Discharge Current: 150mA MAX
- Discharge Power: 2W
- Balancing Current: 300mA MAX
- Operating Temperature: 0℃ to 40℃
- Operating Humidity: 5% to 75% RH (non-condensing)
- Storage Temperature: -10℃ to 70℃
- Storage Humidity: 5% to 75% RH (non-condensing)
