Product Info:

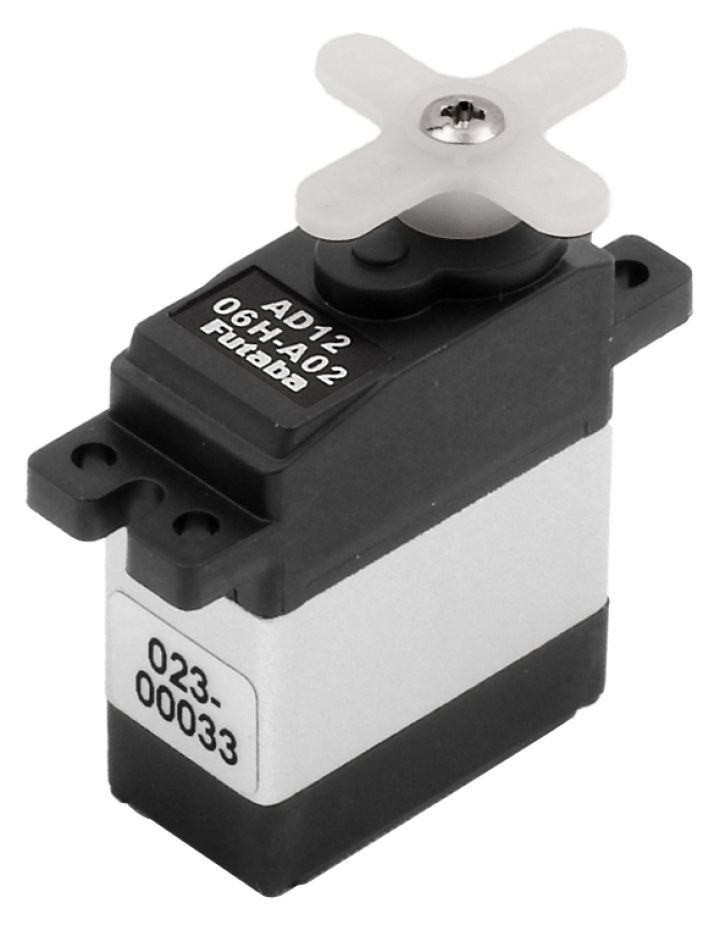

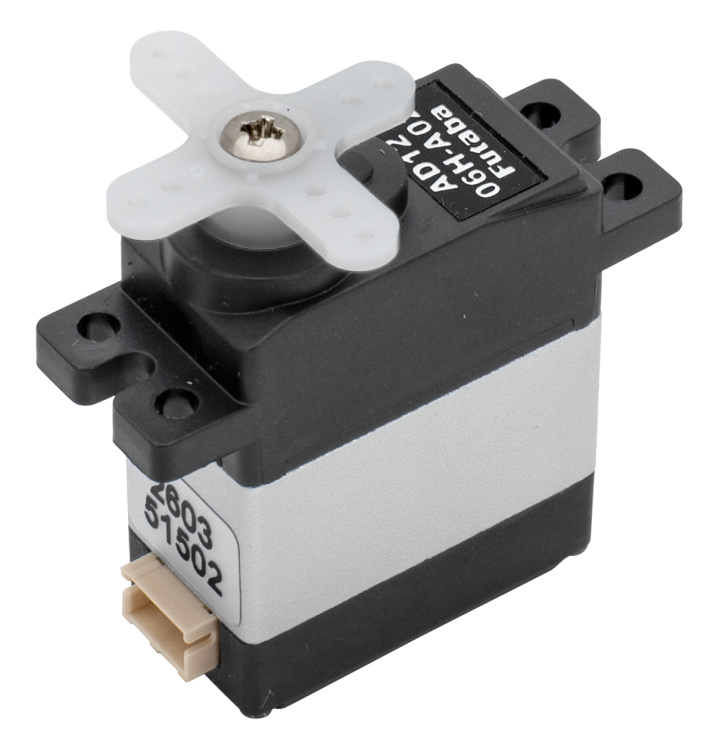

Futaba 05300080-3 - AD12-06H-A02 Industrial Servo 23x11,8x28,6mm 7,4V/3kg/cm
This programmable servo is designed for use on the ailerons of small fixed-wing drones and small robots. Connecting it to a PC using the CIU-2/CIU-3 (sold separately) and using our dedicated servo setting software "S-Link" allows you to change the operating angle range. The use of metal gears makes this a durable product despite its compact size.
Specifications:
- Rated voltage: 6.0-7.4V
- Operating Voltage: 4.0-8.4V
- Rated Torque @ 7.4V: 0.06 N⋅m / 0.6 kg/cm
- Max Torque (instantaneous) @ 7.4V: 0.29 N⋅m / 3 kg/cm
- No-load rotation speed @ 7.4V: 91 RPM/Min / 0.11 s/60°
- Max Travel Angle: CW 90° (920us) CCW 90° (2120us) - Programming tool (CIU-2 or CIU-3 S-Link) is required.
- Connection cable: Detachable unshielded cable
- Cable length: 200mm
- Connector: 3-pole connector FC25-03HG (Futaba RC)
- Dimensions (W x L x H): 23×11.8×28.6mm
- Control and communication standards: PWM/S.BUS/S.BUS2
- Operating temperature: -10 to +45°C
- Weight: 16.2g
- Gear Bearings: 1 ball bearing & 1 metal bearing
- Position Sensor: Potentiometer
- Motor Type: Brushed DC
Case Material:
- Upper: Resin
- Middle: Resin
- Bottom: Resin
- Heat Sink: Aluminum
Gear Material:
- 1st: Resin
- 2nd: Metal
- 3rd: Metal
- 4th: Metal
- Final: Metal
