Product Info:

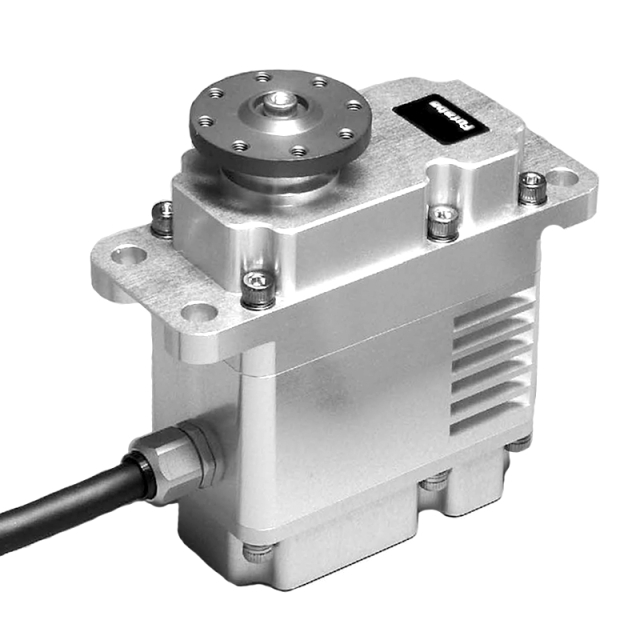

The AJ9DA series is a heavy-duty servo series designed for installation in large fixed-wing UAVs and mobile robots that require even greater torque than conventional servos.The case, gears, and servo horn are all made of metal as standard. For ease of installation, two types of cable are available: one fixed to the main body and one detachable with a bayonet connector. Furthermore, the high-precision combination of gaskets and other components ensures dustproof and waterproof compliance (IP64).
Specs:
- All metal construction including casing, gears, and output-horn.
- Output Cable: Shielded Fixed/Non-Removable
- IP64 level water/dust resistance
- Dimensions: 64.2 x 34.0 x 73.7 mm
- Weight: 355 g
- Torque @ 11.1 V: 65 kg/cm or 6.38 Nm
- Speed @ 11.1 V: 0.21 sec/60° or 285°/sec
