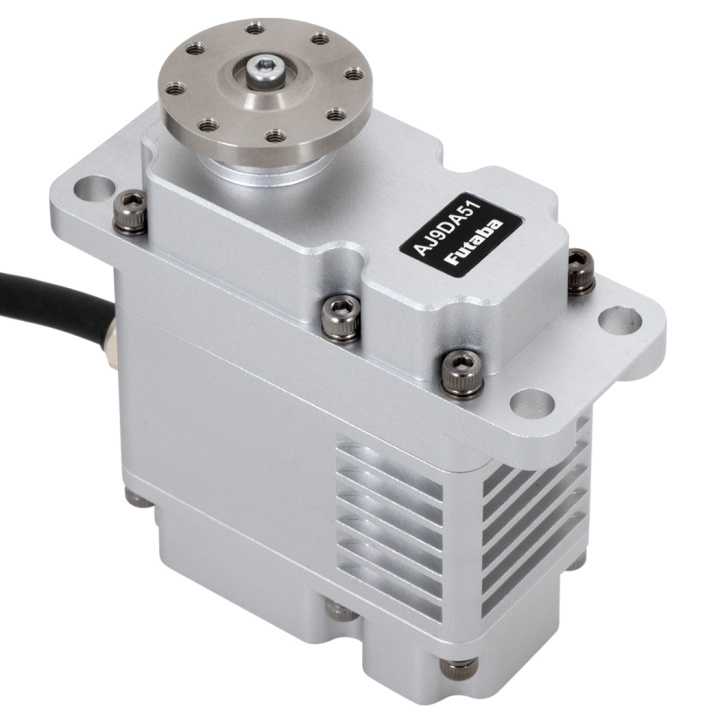

PRODUCT INFO:
AJ9DA/LJ9DA series are compatible with the following signal types:
- PWM: Conventional signal for servo of radio control use (ex. Pulse width of 1,520μS = center).
- S.Bus/S.Bus2: Futaba’s original serial signal format.
- RS485: Same as Futaba’s bi-directional protocol for “Command type servo for robot.”
- Do not use each protocol at the same time or the unit will get fatal damage.
- Analog DC output for monitoring the rod shaft position. The position can be monitored while powering up.
Specs:
- All metal construction including casing, gears, and output-horn

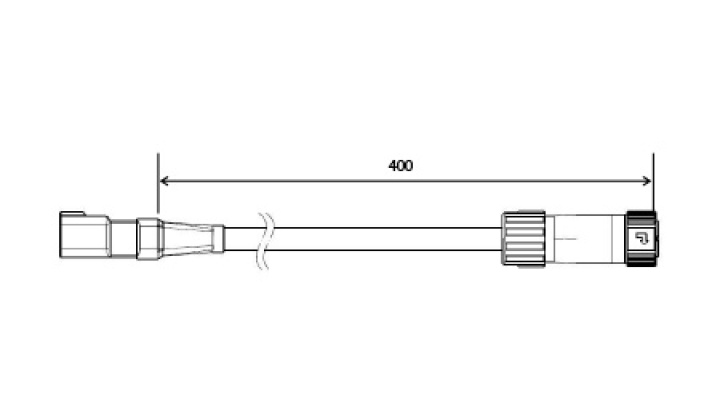

- Output Cable: 400mm Shielded Fixed/Non-Removable
- Protection: IP64 (water/dust resistance)
- Case: Aluminium
- Servo Gears: Metal
- Dimensions: 64.2 x 34 x 73.7mm
- Weight: 337g
- Max Torque @ 24V (stalled): 110kg/cm
- Rated Torque @ 24V: 22kg/cm (20% of Max Torque)
- Speed @ 24V: 0.20s/60° or 300°/sec
- Rated Voltage: 24V
- Operational Voltage: 20-30V
For more info, see the pdf manual.
