EzRun MAX8 G2 Fartreglage Sensor 1/8 XT90-kontakt i gruppen Fabrikat / H / Hobbywing / Fartreglage hos Minicars Hobby Distribution AB (HW30103203)
HOBBYWING

EzRun MAX8 G2 Fartreglage Sensor 1/8 XT90-kontakt

Artnr:
HW30103203
Lev.artnr:
30103203
Lagersaldo:
120 st
Cirkapris: 1800 kr
  • Information

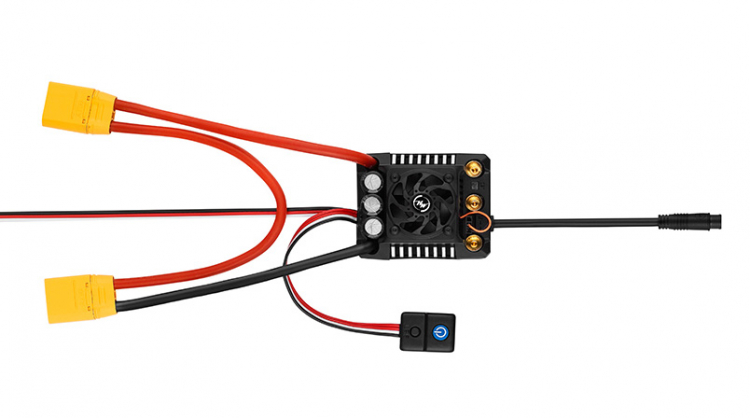

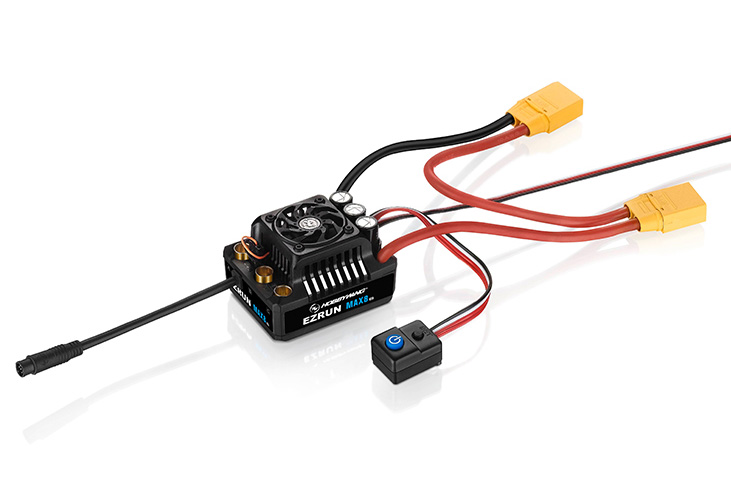

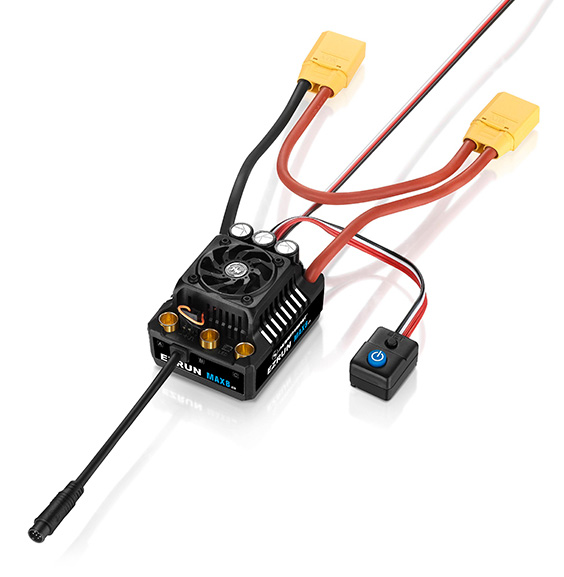

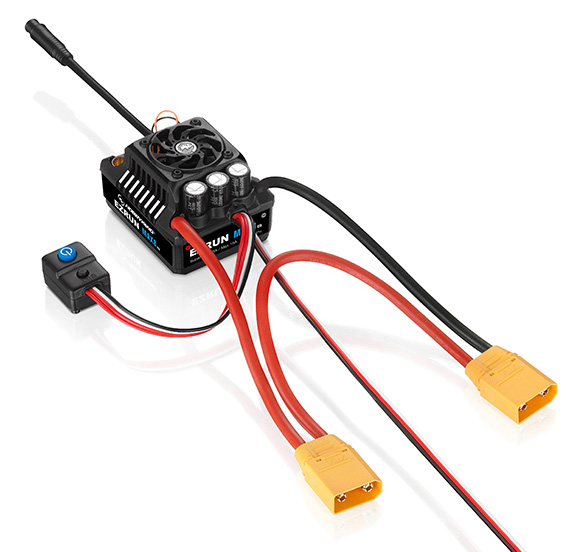

    • Hobbywing EzRun Max8 G2 - Sensored Sport ESC

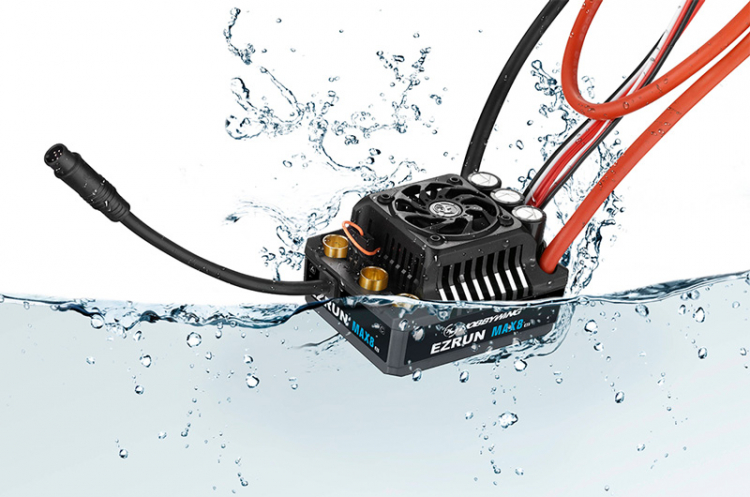

      The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.
      • Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
      • Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevent dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
      • Support the 32 degree turbo timing setting. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%, easily win your rival.
      • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
      • Support LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
      • Real-time data logging to view various running data on the HW LINK app using the OTA Bluetooth module.
      • Support the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions

      Specifications:
      • Scale: 1/8
      • Brushed/Brushless: Brushless
      • Sensored/Sensorless: Sensored
      • Waterproof: Yes
      • Cont./Peak Current: 160A/1050A
      • Input Voltage: 3-6S Lipo
      • BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
      • Input Wires: 10AWG 150mm
      • Input Connectors: XT90
      • Output Connectors: 6.5 Bullet Connectors (Female)
      • Size: 60x48x40.5mm
      • Weight: 192g
      • Fan Size: 30x30x10mm
      • Fan Voltage Range: 6-8.4V
      • Fan Powered by: BEC
      (Note: All the wire length above is the original length not the length you see from the outside.)

      ESC Programing via:
      • SET Button on ESC: Not Supported
      • LED Program Box: Supported
      • LCD Program Box: Supported (G2)
      • OTA Programmer: Supported
      • Program Port: PRG/Fan Port
      • Firmware Upgrade: Supported

      Applications:
      • Motors: Sensored brushless motors / Sensorless brushless motors
      • Vehicles: 1/8 Trucks & Monster Trucks (Sport)

      KV Rating/T Count:

      • With 4S Lipo: KV≤3000
      • With 6S Lipo: KV≤2400 / 4278 size motor
