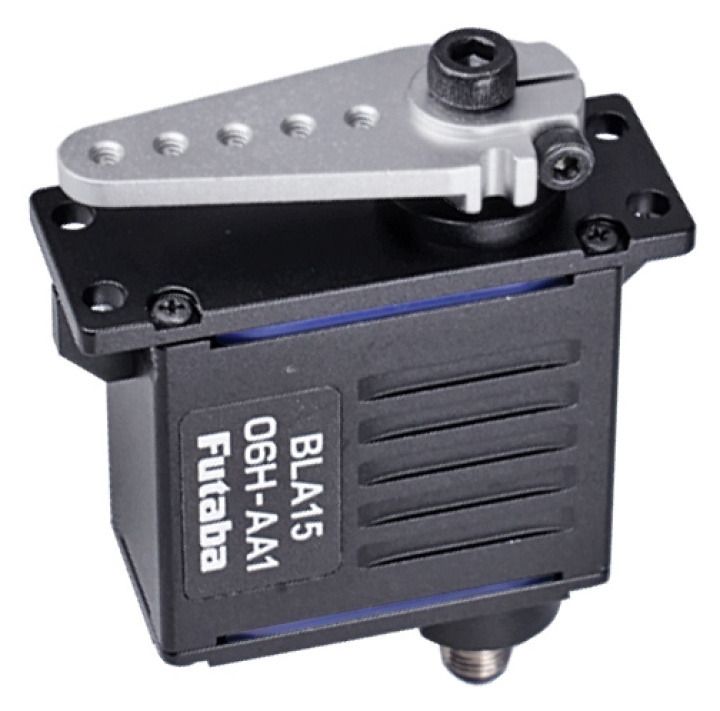

PRODUCT INFO:
It can be used in a wide variety of situations, such as moving parts of UAVs and UGVs, robots, industrial equipment, and production facilities, where durability and environmental resistance are required.Long life
By adopting a newly designed gearbox, custom brushless motor, and non-contact angle sensor, it has high durability of more than 1.5 times the load and more than 7 times the lifespan of a similarly sized conventional product (BLA1HH21).
Environment resistance
The BLA15 series can be used in a range from -30°C to +70°C and are also waterproof and dustproof, meeting the IP67 standard.
Compact and lightweight
While maintaining its long life and environmental resistance, the size and weight have been reduced to approximately one-third of the BLA21 series.
Supports PWM input
In response to requests to replace the widely used PWM compatible servos, we have added PWM compatible servos to our lineup.
Specs:
- Size: 39.4 x 15.0 x 29.4mm
- Weight: 44 g
- Max Torque at 7.4V: 10.3 kgf/cm
- Speed at 7.4V: 0.15 sec/60°
- Protection: IP67
- Case Material: Aluminium
- Gear Material: Steel
- Cable Length: 400mm
