Product Info:

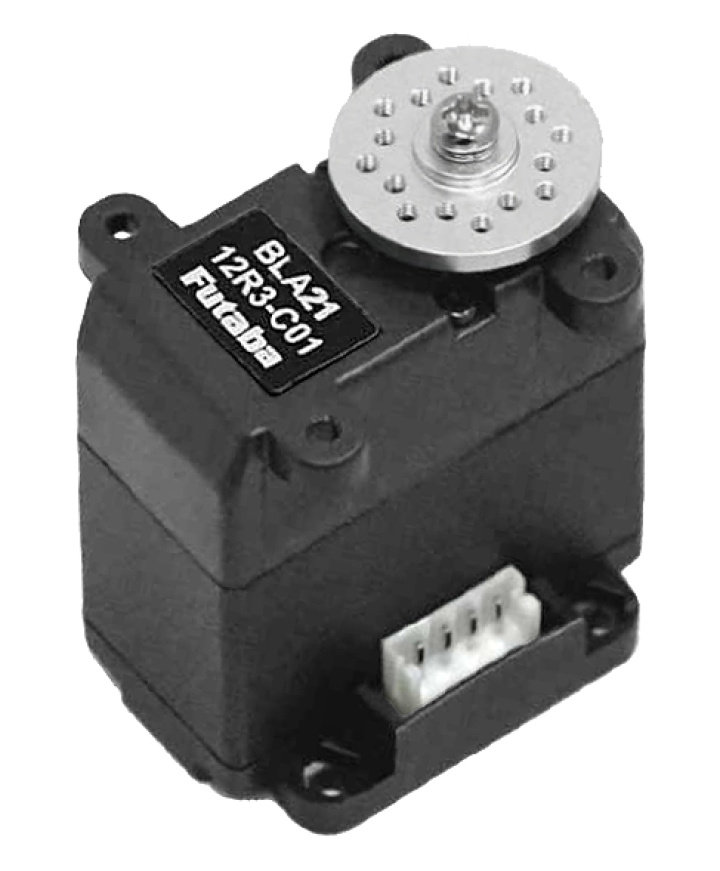

Futaba 05400020-3 - BLA21-12R3-C01 Industrial Servo BL 40.5x33x41.8mm 12V/4.9kg/cmThis industrial servo is based on the discontinued command type servo "RS405CB" and offers significantly improved functionality, performance, and durability.
It is small and lightweight, measuring approximately 41x33x42mm and weighing 67g, yet with a maximum torque of 4.9 N・m, it has a higher power-to-weight ratio than general FA servos. A comprehensive redesign has resulted in a maximum output that is approximately 2.6 times higher and durability that is more than double that of conventional products. (*)
*Based on our company's test conditions
In addition to supporting conventional PWM and RS485 communication, it now supports the new control protocol "CM.BUS(*)" (patent pending). Using CM.BUS makes it possible to write/read only the desired data that has been pre-specified inside the servo, and by minimizing the amount of data required for control and information acquisition, processing speed and throughput are greatly improved.
This servo can be used in a wide variety of situations where durability is required:
- ≪Industrial Robots≫ Robot hands, end effectors, grippers
- ≪Automated guided vehicles/robots (AGVs and AMRs)≫ Rotate axles, lock cargo beds, open and close lids and doors
- ≪Production/Equipment≫ Valve open/close, louver adjustment, lock
Specs:
- Rated Voltage: 11.1-14.8V
- Operating Voltage: 9.0-14.8V
- Rated Torque @ 12V: 0.98 Nm / 10kg/cm
- Max Torque (instantaneous) @ 12V: 4.90 Nm / 50kg/cm
- Speed (no load) @ 12V: 58.8 RPM/min
- Rotational Angle Range (Mechanical): -180.0 ~ +179.9°
- Size: 40.5×33×41.8mm
- Control and communication standards: RS485, PWM & CM.BUS
- Weight: 67g
- Gear Material: Metal
- Connection cable: Detachable unshielded cable
- Cable length: 200 mm
- Connector: 4-pole
- Operating temperature: 0~40°C
- IP code: Not waterproof or Dustproof
- Motor: High Performance Brushless
- Sensor: Magnetic Non-Contact
- Control: Angle, speed & torque
Case Material:
- Upper: Resin
- Middle: Resin
- Bottom: Resin
- Heat Sink: Aluminium
