PRODUCT INFO:

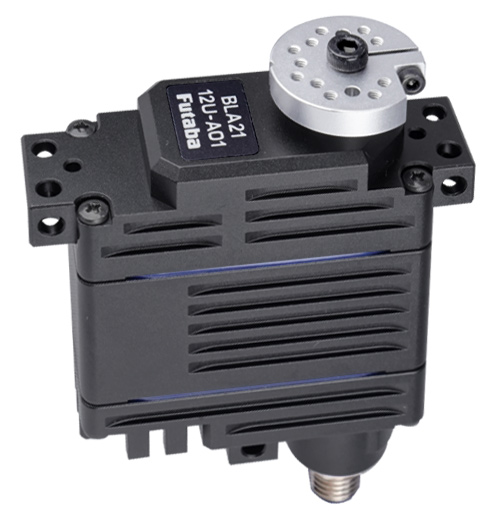

The BLA21 Series A Type features a robust case and noise-resistant design, making it suitable for use in more harsh environments.The operating temperature range is -40°C to +70°C, and it is waterproof and dustproof to IP67 standards, making it suitable for outdoor use.
The use of ball bearings for the shafts also ensures high durability.
The model lineup includes a side connector model (BLA21-06U-A02) and high-voltage compatible models (BLA21-12U-A01, BLA21-28U-A01).
In addition to the DroneCAN v1 (formerly UAVCAN v0) communication method, models that support PWM are also available.
Specs:
- Motor type: Brushless DC
- Protection: IP67
- Connector: Removeable Straight Type
- Dimensions: 48.0x 21.0 x 51.5 mm
- Weight: 130 g
- Max Torque @ 12.0V: 50.0 kg/cm
- Speed @ 12.0V: 0.09 sec/60°
- Voltage Range: 11.1-14.8V
- Case Material: Aluminium
- Gear Material: Steel
- Communication: DroneCAN V1 (UAVCAN v0)
