PRODUCT INFO:
MIL standard (MIL-STD-810H Method 514.8 vibration test) has been added to the product information. For details, please check the product spec pdf sheet.MIL (United States Military Standard) standards are standards established by the U.S. Department of Defense for the design, manufacture, testing, and operation of military equipment, components, and systems.
This standard is not limited to military use but may also be applied to commercial products where durability and reliability are important.
Examples including mobile laptops and smartphones, our industrial servos have also been certified under this standard as industrial high durability products.We will continue to provide more reliable products by confirming that existing models of our industrial servos are compliant with the MIL standard and by meeting various quality standards requested by our customers.
Specs:
- Supports UAVCAN v0 and PWM signals
- Case shielded line and Battery line(-) are common
- No Case shield

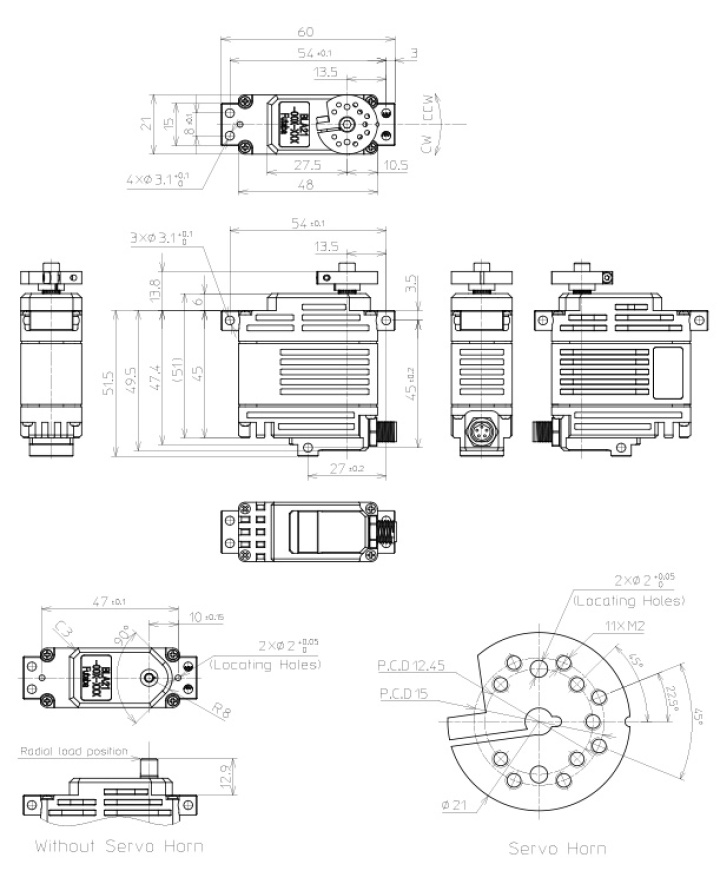

- Dimensions: 48 x 21 x 51.5mm
- Weight: 127g
- Max Torque @ 28V: 46kg/cm
- Speed @ 28V: 0.07s/60°
- Rated Voltage: 24-28V
- Operating Voltage: 20-32V
- Protection: IP67 (Waterproof & Dustproof)
- Case Material: Aluminium
- Gear Set Material: Steel
- Bearings: 8x Ball Bearings
For more info, see the tech pdf sheet.
