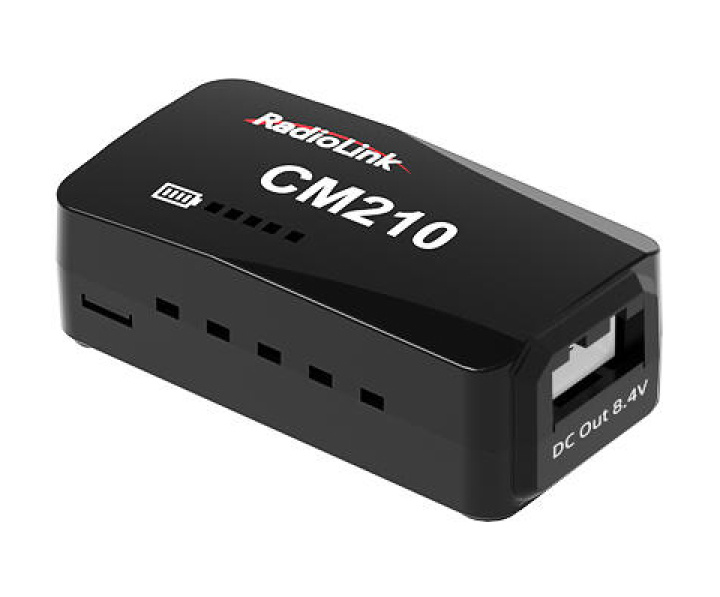

RadioLink CM210 Balance Charger - Compact and Portable, But Charging Fast
- USB Type-C Input
- Charging Fast
- Repair Mode
- Self-adapting Power Supply
- Multiple Protection
- Compact and Portable
Self-adapting Power Supply - Multiple Power Supply Input
The RadioLink CM210, with universal Type-C 5V DC input, can automatically adjust the charging current according to the power supply to ensure that the power supply is not overloaded and achieve charging-friendly. Adapters, computers, mobile power supplies, car chargers, and other power supply equipment can be used as the power supply of CM210. Charging is as convenient and simple as a mobile phone. Safely charge anywhere, anytime.

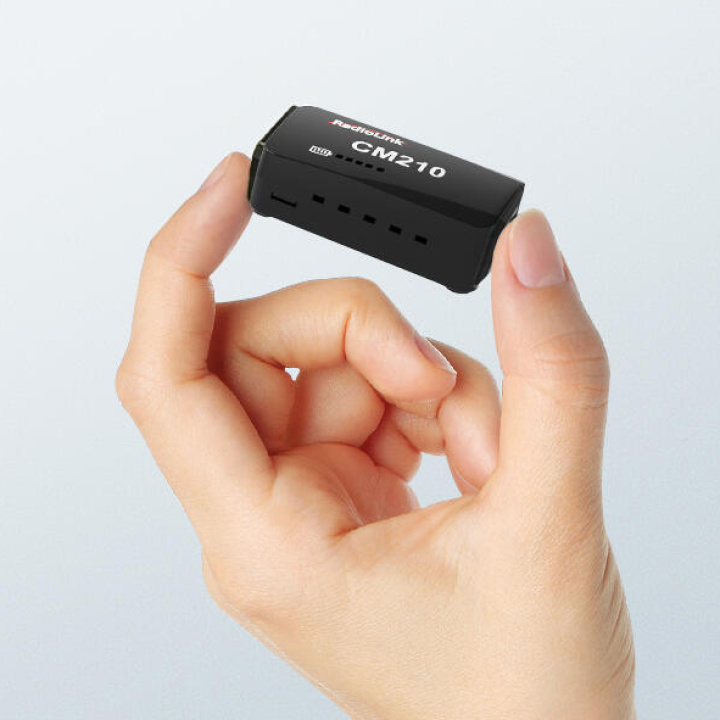

- Compact and Portable
- Pocket-sized and extremely portable, CM210 is a tiny charger with almost negligible size and weight that can be carried anywhere without stress.
- Size: 40.5x21x15mm
- Weight: 9g
It adopts series charging and bypass balance. The maximum 1.5A pulse charging technology helps achieve maximum battery protection while achieving fast charging. Different from the traditional charger that detection of low-current charging when the battery is fully charged, CM210 adopts dynamic balance in the whole charging process that greatly shortens the balance time. A 500mAh 2S LiPo battery can be fully charged in 20 minutes if charged by CM210.
Low Voltage Pre-charge + Repair Mode - It's not only a Charger but also a Money Saver
When it is detected that the single-cell battery is lower than 3.0V, the battery repair mode is activated to restore the battery capacity, so that the over-discharged battery can return to strong power and prolong the battery life.
Trickle Charging Mode - More Power and Longer Playtime
The battery capacity will be detected automatically during the charging process. When the battery is nearly fully charged (when the voltage is charged to 4.16V), it will switch to the trickle charging mode automatically, that is, it adjusts to the best 1C charging automatically, which improves the battery life while charging efficiently. Ensure the strong power of the battery and maximize the battery play life.
Over Temperature Protection
The real-time current adjustment ensures charging safety. When the charger is detected that the circuit temperature is higher than the safe value, the charging current will be reduced automatically. While the circuit temperature is detected to fall back to the safe value, the charging current will automatically be restored to the predetermined current to continue charging.
Power Supply Self-adapting
When it is detected that the power supply voltage is pulled down to 3.7V, the current will fall back to the predetermined current automatically to adapt to various power supplies of different specifications.
Alarm Timely
When the CM210 detects that there is no current for a long time, it will stop charging automatically and the red LED of CM210 will flash.
High Efficiency but Low Consumption - Real-time Power Display
The charging precision is 0.02V and the charging efficiency is up to 82%. The battery power indicator LEDs of CM210 help to check the charging progress, and the real-time charging power can be seen immediately.
CM120 Charger Specs:
- Size: 40.5x21x15mm
- Weight: 9g
- Input Voltage: 5V
- Working Modes: Charging
- Charging Precision: 0.02V
- Supporting Battery: Only for 2S LiPo battery
- Charging Voltage: Max. 4.2V for each battery cell
- Charging Current: 1.5A
- Balance Current: 0.8A
- Max. Output Power: 20W
- Power Supply Input Port: USB Type-C input
- Charging Port Interface: 3P XH2.54 port
