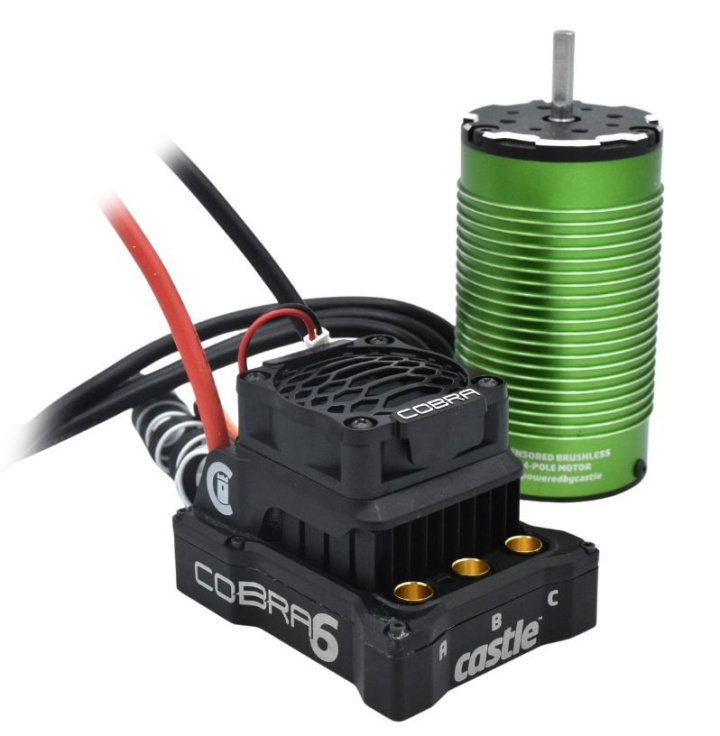

Castle 010-0184-03 - Cobra 6 8S 33,6V ESC, 1717-1260KV Motor Combo 1/6-1/8
RACER TESTED - BASHER APPROVED
The COBRA 6, 33.6V ESC W/1717-1260KV SENSORED COMBO is ready to take on any R/C vehicle weighing up to 20lbs and running up to 8S LiPo. Designed for heavy, high-performance rigs, you'll experience controllable low-end ranges, without sacrificing power, punch, or speed.
Based around our popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.
ESC FEATURES:
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSense™ Running Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40MM cooling fan
- Waterproof design for all weather conditions
- Enhanced Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth™ programming options
- Castle Link USB programming (Castle Link V4 included!)
- Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and Castle Link 2 app available on Google Play or Apple App Store
MOTOR FEATURES:
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
