and S.BUS/S.BUS2 connectivity. Stabilizes flight, even with hard-to-control scale models.
Compatible with elevator or rudder control
- The GYA440 can choose and use an elevators or a rudder.
Remote gain function
- The remote gain function allows the sensitivity of the gyro to be adjusted from the transmitter and the mode switching function allows AVCS/NORMAL gyro mode switching. Also the gain can be adjusted by the trimmer on the GYA440.
Integrated type, compact size and light weight
- High-density mounting technology makes the GYA440 compact (20.5 x 20.5 x 11 mm) and lightweight (3.7 g).
Easy setup
- Basic settings let you be flight-ready in an instant
Supporting the S.BUS/S.BUS2 connection
- Only one wire connection to the receiver can operate the GYA440

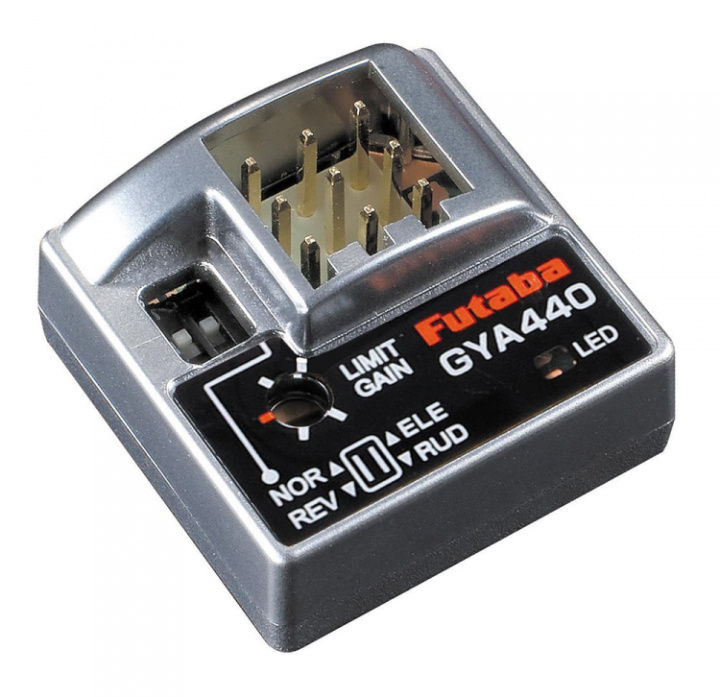

GYA440 Ratings:
(Integrated sensor type rate gyro)
- Gyro sensor: MEMS vibrating structure gyro
- Operating voltage: DC4.0V to 8.4V
- Current drain: 30mA (excluding a servo)
- Operating temperature range: -10ºC to +45ºC
- Dimensions: 20.5 x 20.5 x 11.0 mm (except protrusion)
- Weight: 3.7 g
- Functions: (1) Gyro sensitivity trimmer, (2) Monitor LED, (3) CH change elevator or rudder, (4) S.BUS/S.BUS2 compatibility, (5) Digital/Analog servo function.
