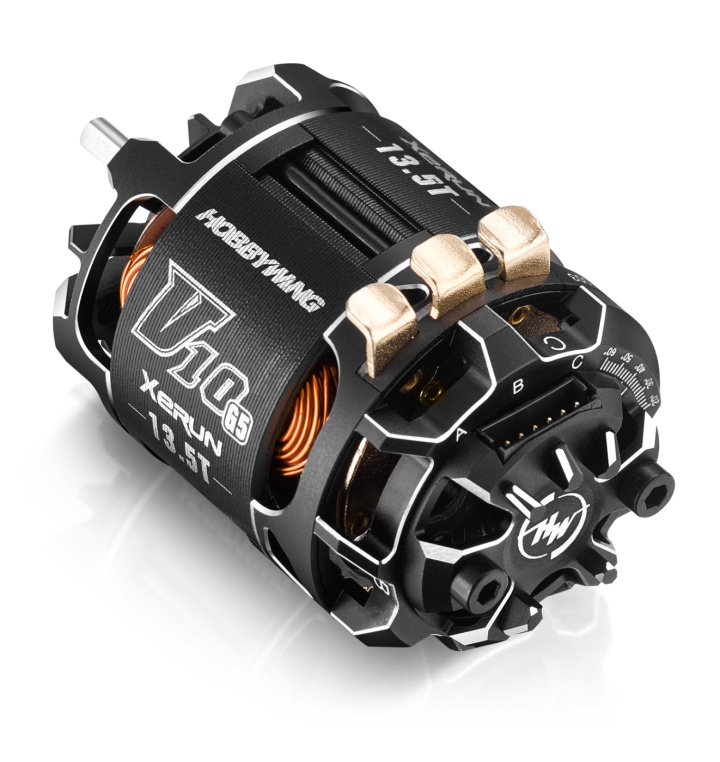

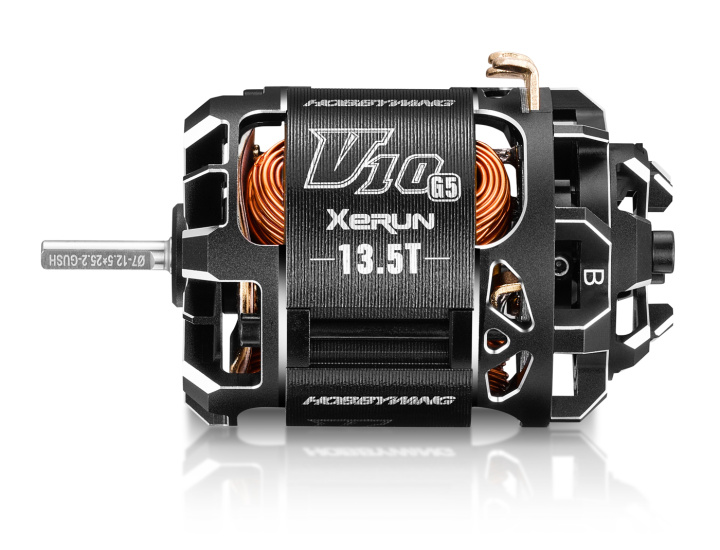

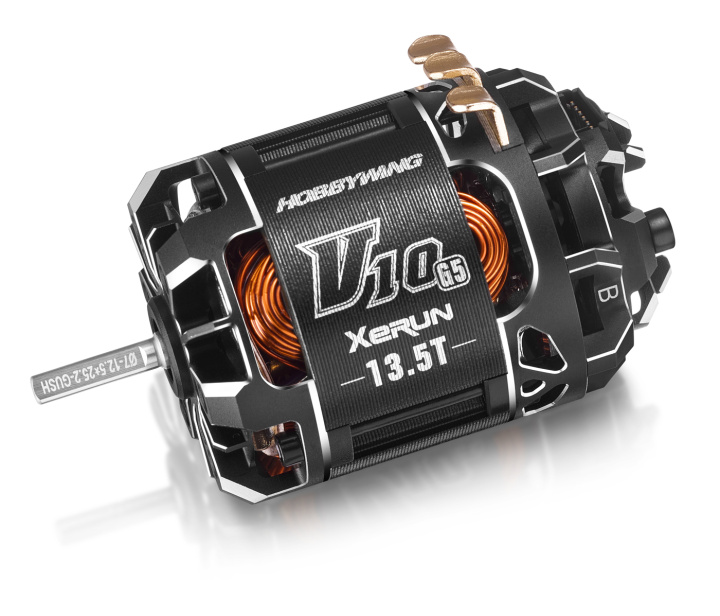

XeRun V10 G5 13.5T Torque - Sensored Brushless RC Racing Motor
Built to be More than Just Fast
Built from the ground up, the XeRun V10 G5 motor delivers more power and greater efficiency.
It delivers a 3.9% boost in maximum output power and over 4% improvement in efficiency versus the V10 G4R 13.5T.
Excellent Heat Dissipation
Efficiency has been improved to reduce overall temperatures and provided better consistency. New endbell design exposes more of the winding to allow better heat dissipation.
- Weight: Optimized Weight and Center of Gravity
- Center of Gravity: The G5 has been designed to move the weight towards the centerline of the vehicle.
One Layer - Next-Level Performance - Special Coating
A special coating on the rotor surface delivers both corrosion protection and improved magnetic performance, enabling higher load capability and greater power output of the motor.

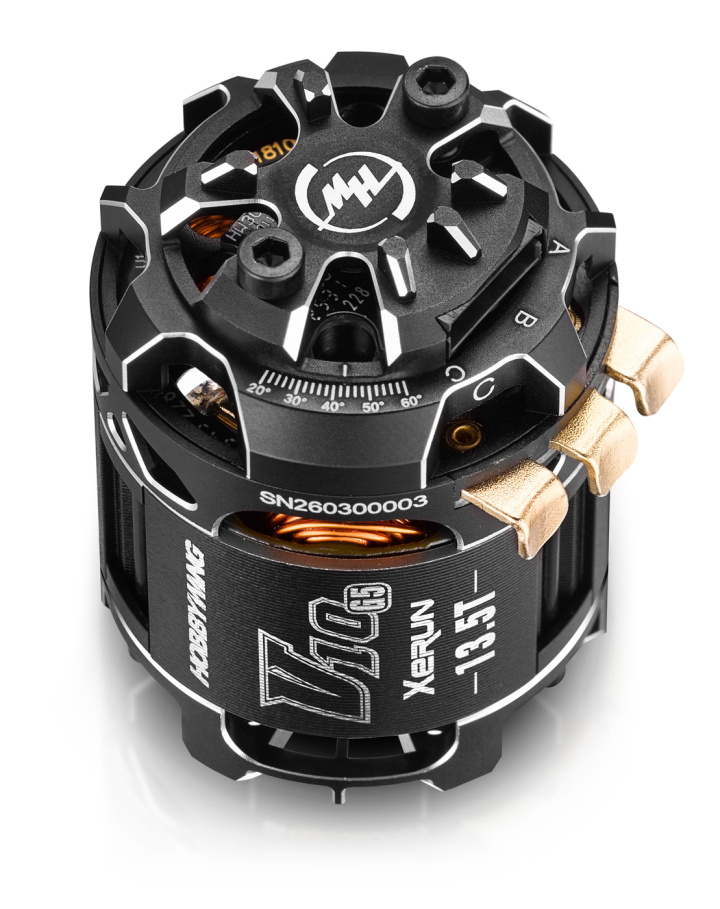

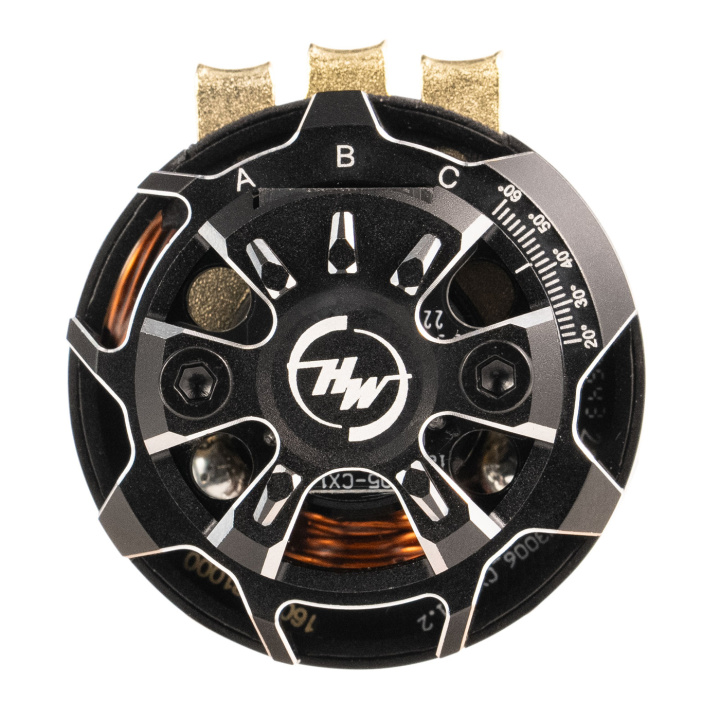

Adjustable Hall Timing Accuracy
The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustments means your motor will run smoother and be more efficient.
Note: The timing tolerance are based on results displayed by the HOBBYWING Tunalyzer.
Adjustable Hall Sensing Distance
Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.
Warning: Ensure proper clearance between the Hall sensor and rotor ring during adjustment to prevent component damage.

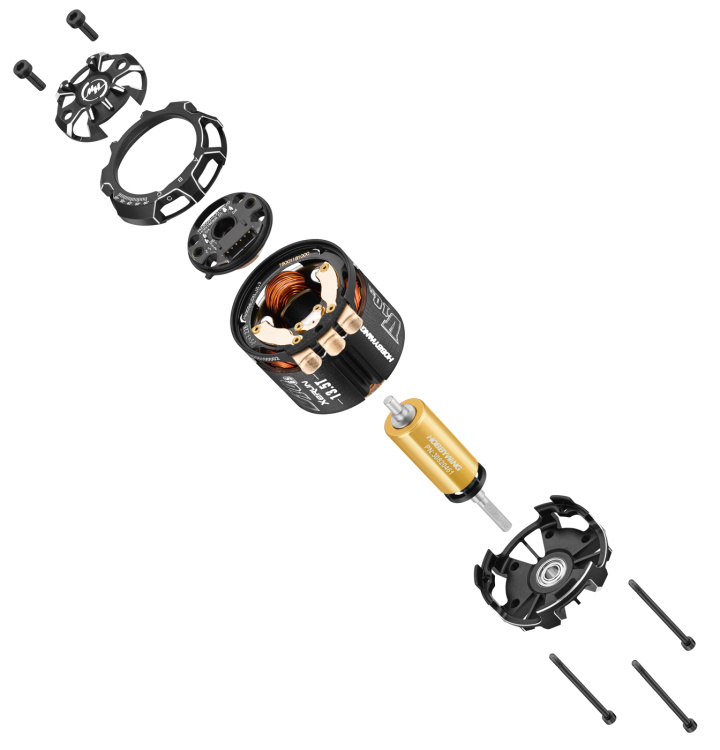

Designed for Easy Maintainence
Modular design allows for quick and simple motor cleaning to allow racers to keep their motors performing at their best.
Built with Superior Materials
The V10 G5 motor is built to excel in the harshest race conditions.
- High-Performance Premium Stator Core
- 180°c High-temperature–rated Reinforced Rotor Design
- Top-tier Bearings
XeRun G5 13.5T - Available in Two Versions
The V10 G5 13.5T motor is available in two specialized versions Standard and Torque.

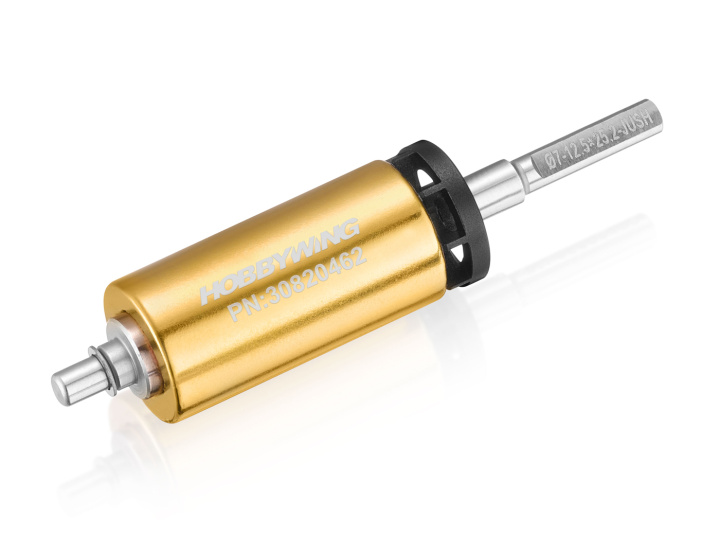

Note: The rotor PN number for the Standard Edition is 30820461, and for the Torque Edition is 30820462.
Standard
- Features higher RPM that is suited for medium/low grip applications and larger sized tracks.
- Features as higher strength rotor suited for medium to high grip, small to medium sized tracks.
Specs:
- Type: Brushless/Sensored
- Pole Count: 2
- KV Rating: 3900
- LiPo Cells: 1-3S LiPo
- No-load Current: 6A
- O.D.: 35.8mm
- Length: 51.5mm
- Shaft Diameter: 3.175mm
- Weight: 138g
- Front Bearing: D9xD4xT4mm
- Rear Bearing: D8xD3xT4mm
- Std Rotor: Φ7-12.5*25.2-JUS
- ESC: XeRun XR10 PRO G3 / G3X
- Vehicles: 1/10 & 1/12 Stock Racing
