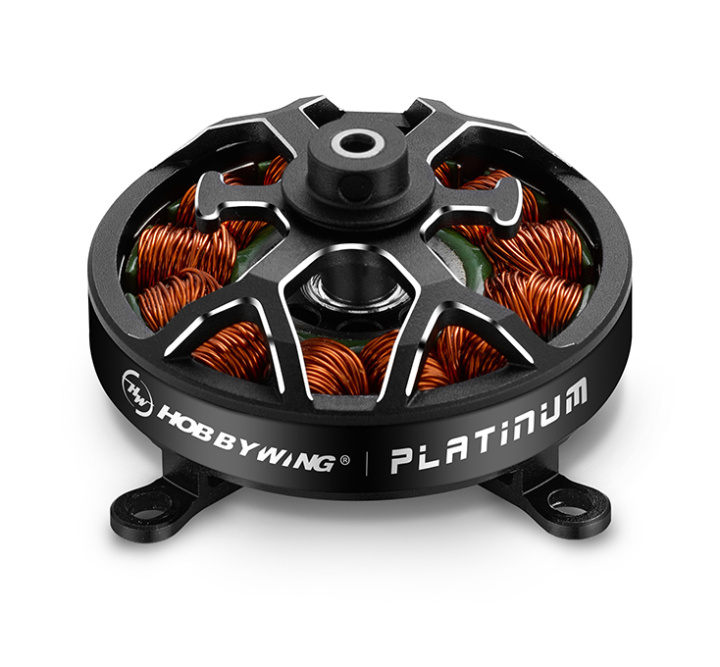

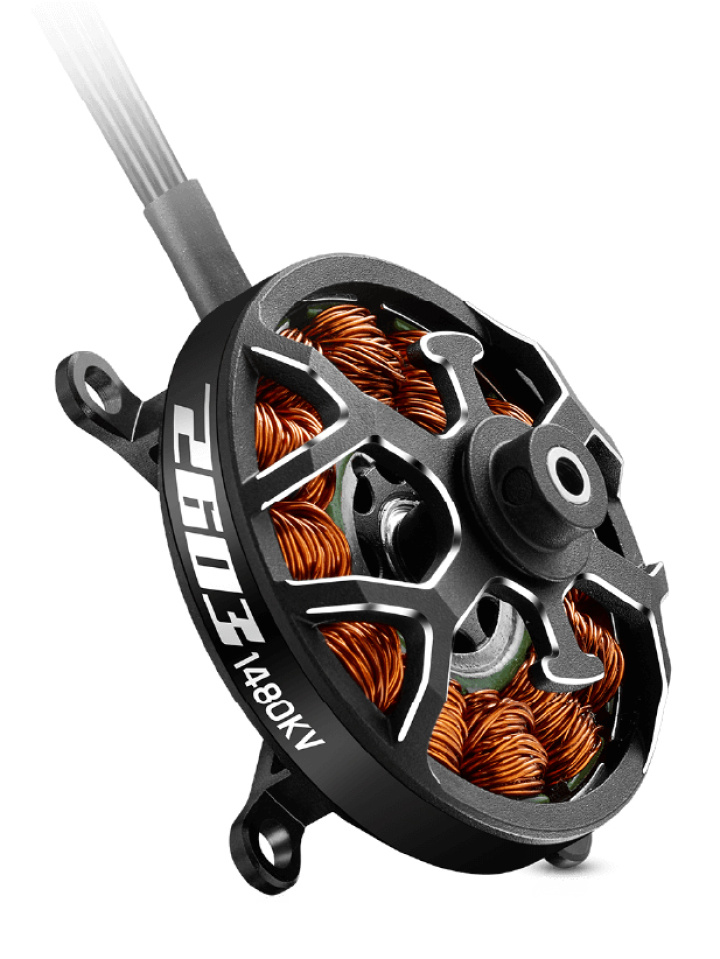

Hobbywing HW30416250 - Platinum 2603SL 1480kV 3S Motor F3P
Lightweight for Unmatched Performance
- The weight of Platinum 2603 motor is less than 18g
- The weight of Platinum 2604 motor is less than 21.5g
Robust Power, Worry-Free Flight
The motor’s efficiency and maximum thrust increase by over 5% in the mid-to-rear load range (compared to other brands with similar specifications).
This higher power output enables more effortless flight and superior performance in competitions, eliminating any power anxiety.
Stability for Better Flight
The rotor’s dynamic balance is lower than 5mg, significantly reducing vibrations during operation and delivering a smooth and stable flight experience. This ensures the precise execution of every aerobatic maneuver.
Lightweight Design for Efficient Cooling
The rotor frame and stator base feature a large hollow design. This reduced-weight design ensures continuous and effective heat dissipation during extended aggressive flights while maintaining the optimal operating temperature of the motor.
Quick Assembly & Disassembly, Versatility with Multiple Models
- The rotor frame integrates a propeller installation structure, ensuring fast and simplified propeller assembly and disassembly.

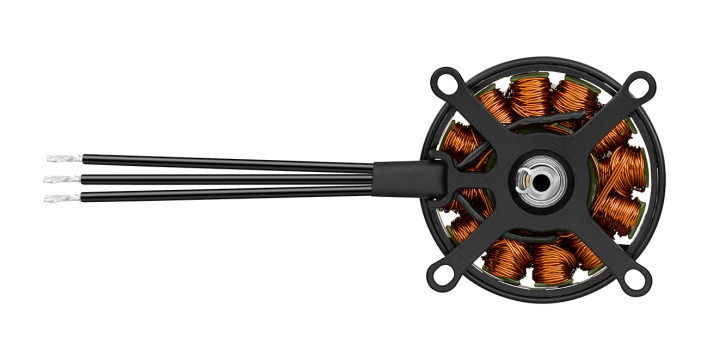

- The motor fixed installation holes feature an elliptical design, compatible with both 4-φ2.1@D32/D33 installation holes, meeting the installation needs of most F3P aerobatic aircraft on the market.
Quality in Detail, Excellence in Material
Made of top-brand high-performance 0.2mm thick cores, 220°C high-temperature resistant enameled wire, and N52SH high-strength arc magnets, the motor provides powerful torque and superior performance.
- High-Performance 0.2mm Thick Cores
- 220°C High-Temperature Resistant Enameled Wire
- N52SH High-Strength Arc Magnets
- Multi-strand enameled wire winding enhances slot filling rate, reducing the motor operating temperature at the same power output.
2603SL 1480KV Specs:
- Motor size: Φ30*H16.2mm
- Stator size: Φ26*H2.6mm
- Stator process: High standard silicon steel sheet
- Enamelled wire: 220℃
- Isolation test: 500V AC high voltage resistance test
- Propeller: UP8338
- Slot & pole: 12N14P
- Dynamic balance: ≤5mg
- Bearings: 630ZZ
- Motor shaft diameter: Ф5.5 x t2.4mm
- Shaft material: Titanium alloy
- Motor mounting dimensions: 4×Φ2.1@D33
- KV: 1480
- LiPo: 3S
- No-load current: 0.5A/12V
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）: 16A/34s
- Max power: 187W/34s
- Max thrust: 656g
- Resistance: 204mΩ
- Wire Size: Enamelled Wire Outlet
- Wire length: 45mm
- Weight（With wire): 18g
Recommended Set-up:
- Motor: Platinum 2603SL 1480KV
- Propeller: UP8338, TP8038
- ESC: Platinum 18A V5 F3P
- Battery: 3S LiPo
