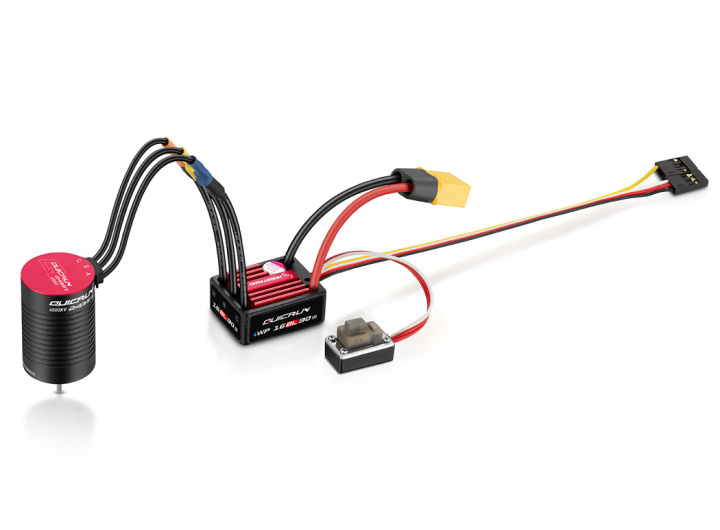

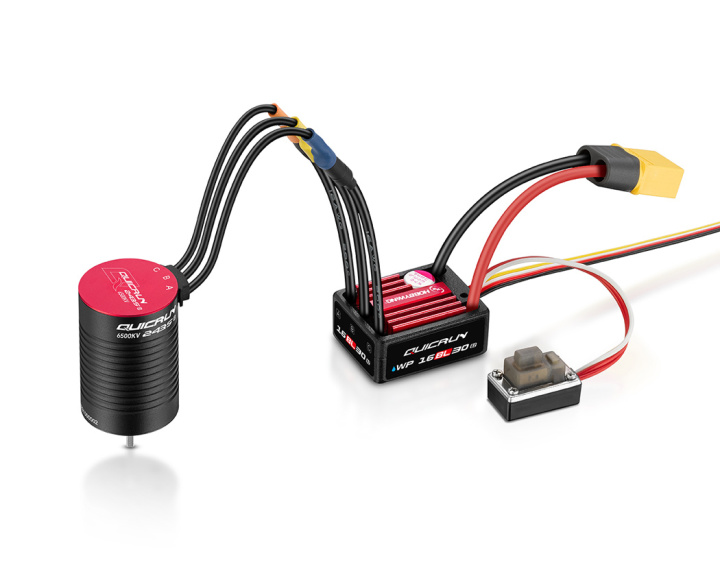

Hobbywing 38030003 QuicRun Combo 16BL30 G2 - 2435SL 6500kV G3 1/16
What's in the box:
- 1pcs QuicRun 2435SL 6500kV G3 1/18 Motor
- 1pcs QuicRun WP 16BL30 G2 ESC
Hobbywing 30110001 - QuicRun WP 16BL30 G2 Specs
- Scale: 1/16th、1/18th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Waterproof
- Cont./Peak Current: 30A/100A
- Input Voltage: 2-3S
- BEC Output: 6V/7.4V,2A
- Input Wires: Black-16AWG-75mm*1,Red-16AWG-75mm*1
- Output Wires: Black-16AWG-60mm*3
- Input Connectors: Black-16AWG-60mm*3
- Output Connectors: 3.5MM Gold (female)
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Shared with Throttle Wire
- Extreme value: Not Supported
- Real-time Data: Not Supported
- Historical data (Graph): Not Supported
- Firmware Upgrade: Not supported
- Size & Weight
- Size: 33.4x26.8x15.1mm
- Weight: 38.5g( Included wires & connectors)
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/16th、1/18th On-Road & Off-Road & Short Course Truck& Monster Truck
- Applicable Motor: QUICRUN 2435 G2
QuickRun 2435SL G3 6500KV Brushless Sensorless 1/18-1/16 Motor Specs
- Type: 1/18-1/16, Brushless, Sensorless Motor
- Poles: 4
- KV Rating: 6500
- LiPo Cells: 2S
- No-load Current: 3.4A
- O.D.: 24mm
- Length: 36mm
- Shaft Diameter: 2mm
- Connectors: 3.5mm (male)
- Weight: 61.2g
- Front Bearing: OD8xID3xT4mm
- Rear Bearing: OD8xID3xT4mm
- Applications: 1/16-1/18 On-road & Off-road
