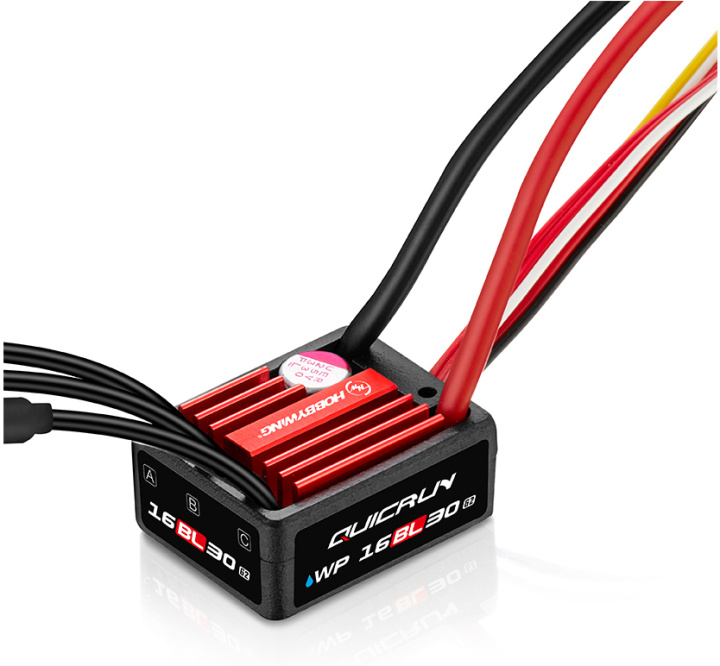

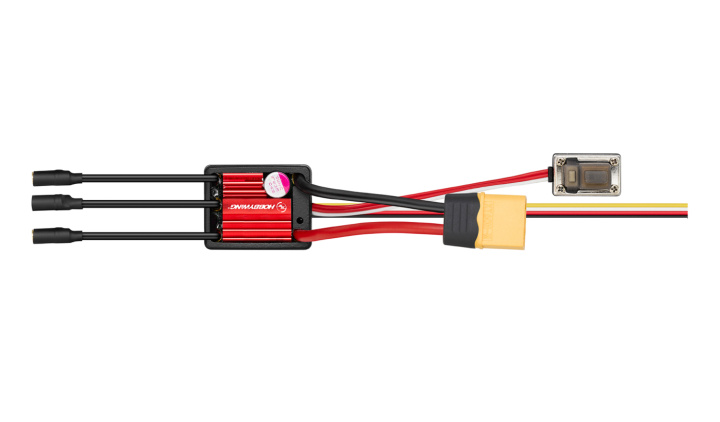

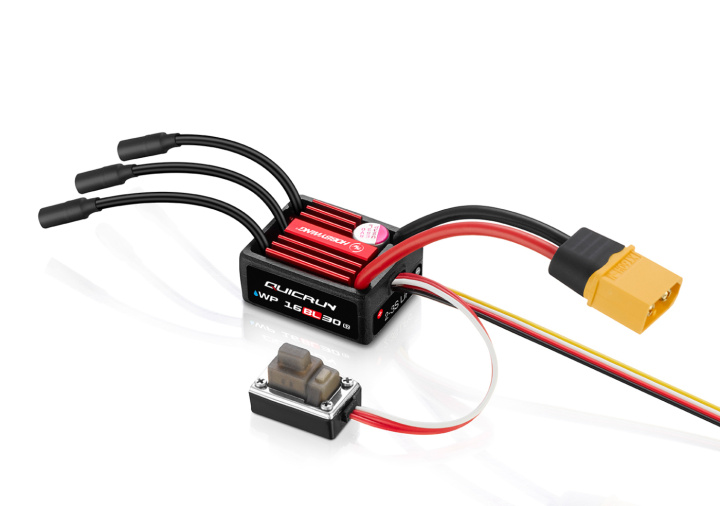

The QuicRun WP 16BL30 G2 is HOBBYWING’s latest compact brushless ESC, ideal for 1/16 and 1/18 scale vehicles.
- With intelligent freewheeling for lower heat and better efficiency, it delivers smooth, stable performance.
- Smaller size for easier installation (8.3% shorter, 7.1% narrower, 16.7% lower)
- Upgraded BEC: 2A continuous, 4A peak, switchable 6V/7.4V – perfect for high-torque servos
- IP67 waterproof – ready for rain, mud, and dust
- Easy programming via LCD/LED box or SET button
- Great value for beginners, with plug-and-play simplicity
- Optimized for QuicRun 2030 G2 & 2435 G3 motorsA smart, durable ESC built for reliability and performance.
Type
- Scale: 1/16th、1/18th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Waterproof
- Cont./Peak Current: 30A/100A
- Input Voltage: 2-3S
- BEC Output: 6V/7.4V,2A
- Input Wires: Black-16AWG-75mm*1,Red-16AWG-75mm*1
- Output Wires: Black-16AWG-60mm*3
- Input Connectors: Black-16AWG-60mm*3
- Output Connectors: 3.5MM Gold (female)
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Shared with Throttle Wire
- Extreme value: Not Supported
- Real-time Data: Not Supported
- Historical data (Graph): Not Supported
- Firmware Upgrade: Not supported
- Size: 33.4x26.8x15.1mm
- Weight: 38.5g( Included wires & connectors)
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/16th、1/18th On-Road & Off-Road & Short Course Truck& Monster Truck
- Applicable Motor: QUICRUN 2435 G2
