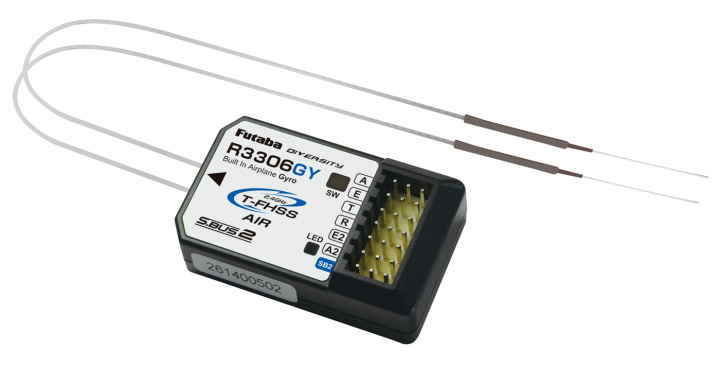

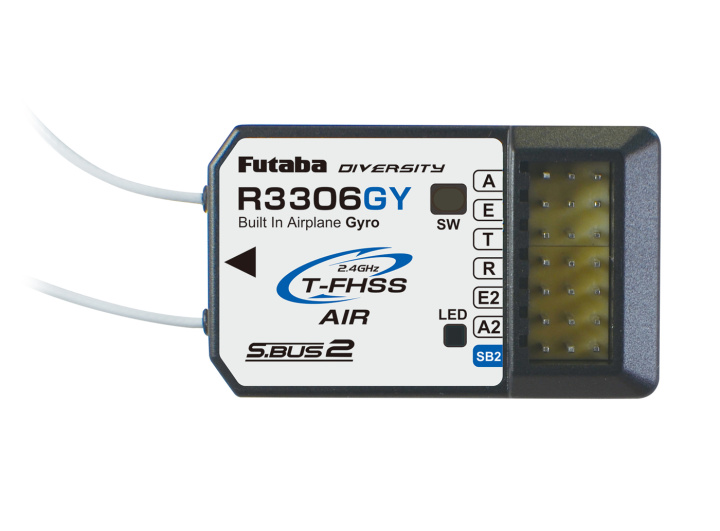

Futaba R3306GY - Receiver with built-in Gyro (T-FHSS Air type)
With six-axis sensor, you can enjoy a stable flight from beginners to experts with flight posture control.
Features:
- Integrated reception function (T-FHSS Air) and gyro function for airplanes. It can omit troublesome wiring and at the same time contribute to weight reduction. This unit requires a T-FHSS Air compatible transmitter of 10ch or more.
- By realizing a small size, the range of mounting locations is expanded.
- Various settings can be connected to GPB-1 or the corresponding transmitter ( T32MZ / T32MZ WC / T26SZ / T26SZ PRO / T16IZ S ). *Update to the latest version is required.
- In addition, it is possible to set up simple settings by the SW and LED display of the main unit.
- The remote gain function allows you to set the gyro gain of each axis separately from the transmitter.
- 4Flight mode (Recovery mode / AVCS / NORMAL / gyro OFF) can be switched.
- In particular, the recovery mode switches to horizontal flight just by turning on the switch, so even if you lose sight of the posture of the aircraft, you can safely return the airframe posture to the horizontal, and even beginners can fly with confidence.
- Roll Flat (see below) / Air Brake / Camber Mixing / 4D Flights can be used. ( In order to use each function, it is necessary to set it separately from GPB-1 or the corresponding transmitter.)
- Roll flat function: If the arlong stick is neutral, the roll angle is maintained horizontally as long as the specified conditions (※Note1) ranges. This makes it possible to concentrate on elevator and throttle operation during landing, easing the anxiety during landing. In addition, it can be used for aerial flight and horizontal posture practice.
- The pitch angle (elevator direction) is within ±60oC, and the roll angle is within the prescribed range.
- Gyro control is four-allon, two elevators, two ladders (※AIL3,4 and RUD2 are only S.BUS2 output. The output change setting is required separately from GPB-1 or the corresponding transmitter.)
- Available for various main wing types including untailed wings. It is compatible with both electric and engine aircraft.
Specifications:
- Application: Receiver with built-in six-axis gyro for model airplanes
- Communication method: T-FHSS Air-2.4GHz method with two-way communication (use with a T-FHSS Air compatible transmitter with 10ch or more)
- Input/output: S.BUS2 I/O + 6ports of output for conventional systems
- Antenna: Diversity method
- Size: 44.3 x 27.0 x 11.3 mm
- Weight: 15.5g
- Rated Voltage: DC4.0 to 8.4V
- Battery F/S Voltage: Set from transmitter
- Current consumption: about 63mA
