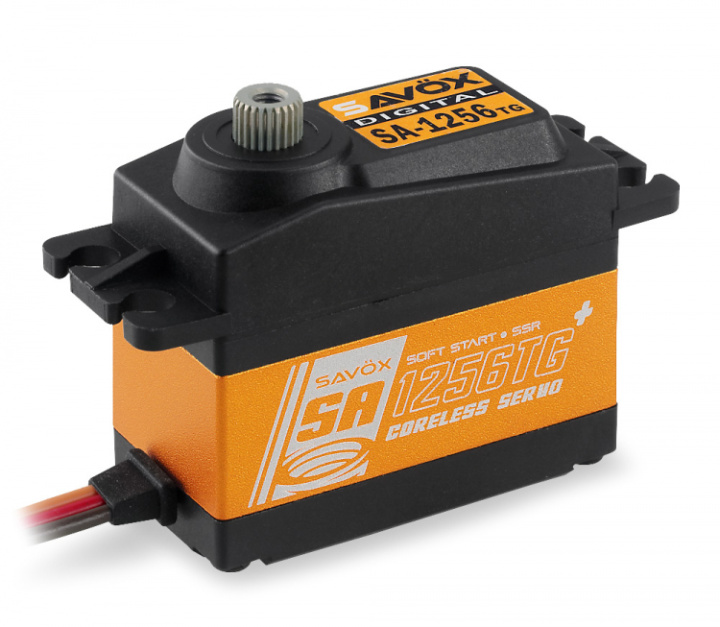

SAVÖX SA-1256TG PLUS - Coreless Titanium-Geared High Torque Servo
The SA-1256TG-PLUS servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.Features:
- New: Soft Start
- New: Sanwa SSR Compatible

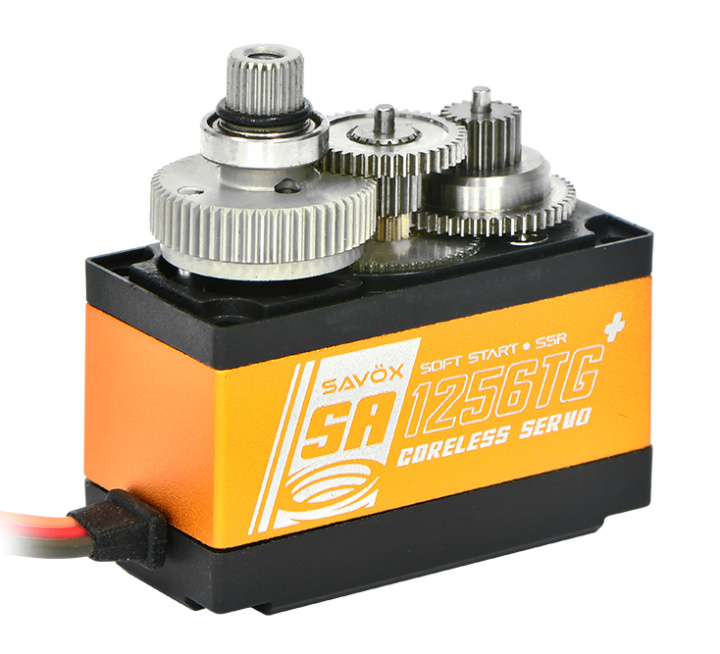

- Titanium gears ensure long life, durability & lighter weight
- Minimized backlash for precision aerobatic airplane use
- Aluminum middle case to help with cooler operating temperatures
Technical Details:
- Line: ORIGINAL LINE
- Application: AIRPLANE
- Servo Size: Standard
- Operating Voltage: 4.8V-6.0V
- Speed @ 4.8V: 0.18s/60°
- Torque @ 4.8V: 16kg/cm
- Speed @ 6.0V: 0.15s/60°
- Torque @ 6.0V: 20kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Dust Resistant

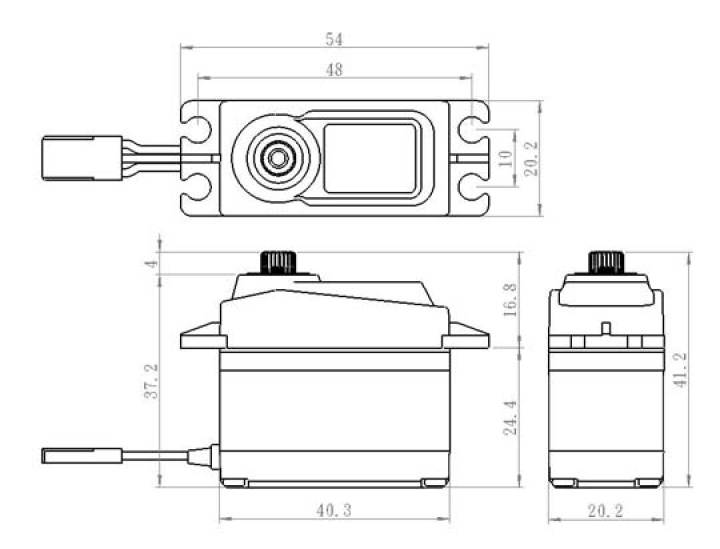

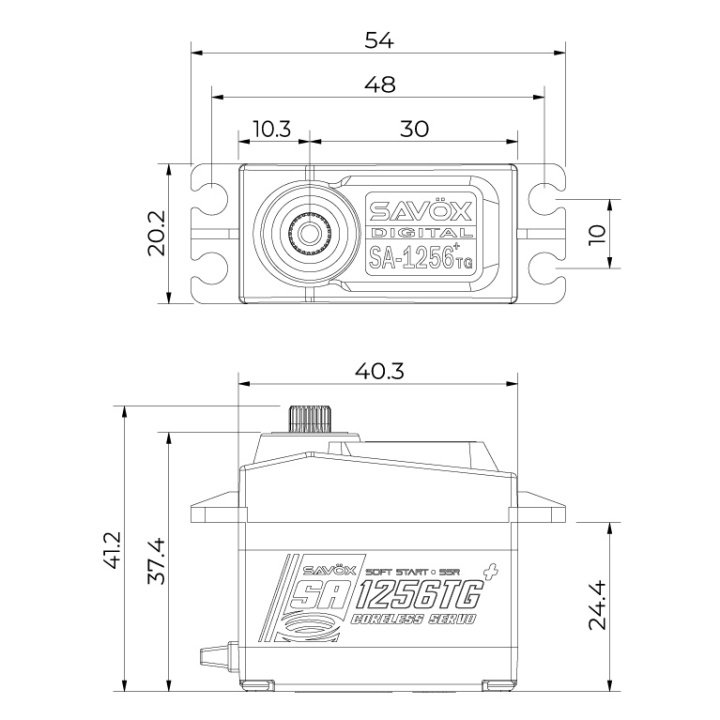

- Dimensions (LxWxH): 40.3x20.2x37.2mm
- Weight: 64g
- Gear Type: Titanium
- Compatibility: Sanwa SSR
- PCB Board: 12bit 4096, Softstart, Lock protection
- Horn Gear Spline: 25T(Φ6)
- Rotating Direction: Counterclockwise (when 1500→2000 μsec)
- Max Travel: ~130° (when 900→2100 μsec)
- Operating Travel: 100° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 300 ±5mm
- Connector: JR
- Stall Current @ 4.8V: 4000mA
- Operating Current @ 4.8V: 100mA
- Stall Current @ 6.0V: 5000mA
- Operating Current @ 6.0V: 120mA
- Idle Current: 5mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
