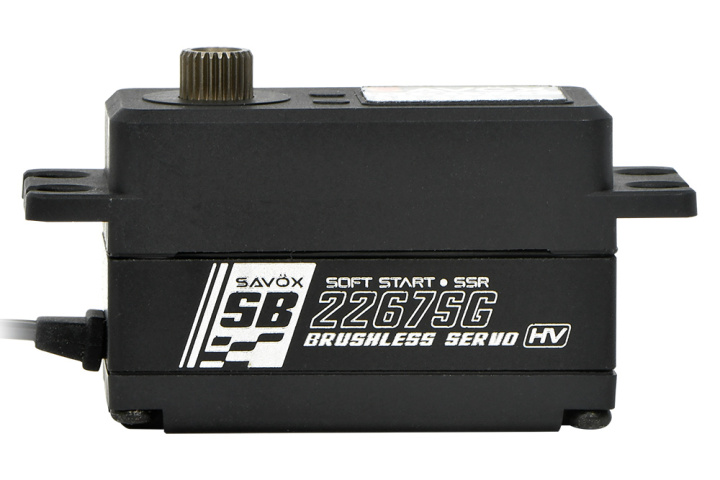

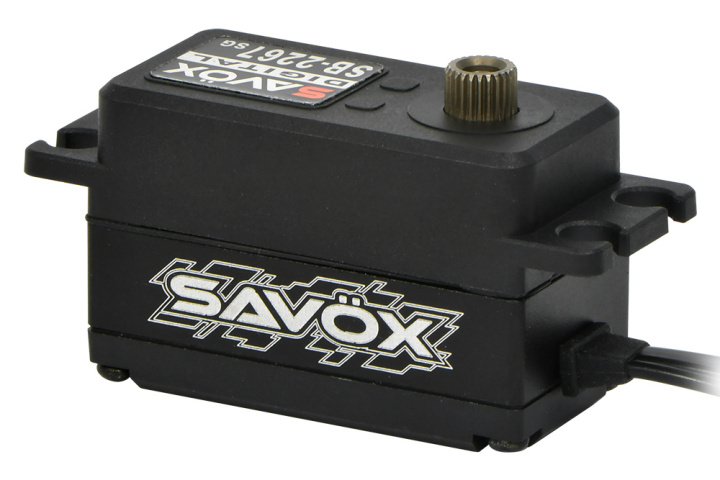

Savöx SB-2267SG - Monster Torque, High Voltage, Low Profile, Brushless, Steel Gear Servo
This powerful performance low profile servo from Savox utilize an aluminum middle case and super strong (and light) upper and lower composite plastic case case and a unique brushless motor & controller technology to boost power up to 35% over previous generation servos.Tech Specifications:
- Line: MONSTER LINE
- Applications: CAR / BOAT / AIRPLANE
- Servo Size: Low Profile
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.1 s/60°
- Torque @ 6.0V: 18 kg/cm
- Speed @ 7.4V: 0.08 s/60°
- Torque @ 7.4V: 25 kg/cm
- Speed @ 8.4V: 0.065 s/60°
- Torque @ 8.4V: 32 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Patented Brushless
- Case Type: Aluminum
- Protection: Water Resistant

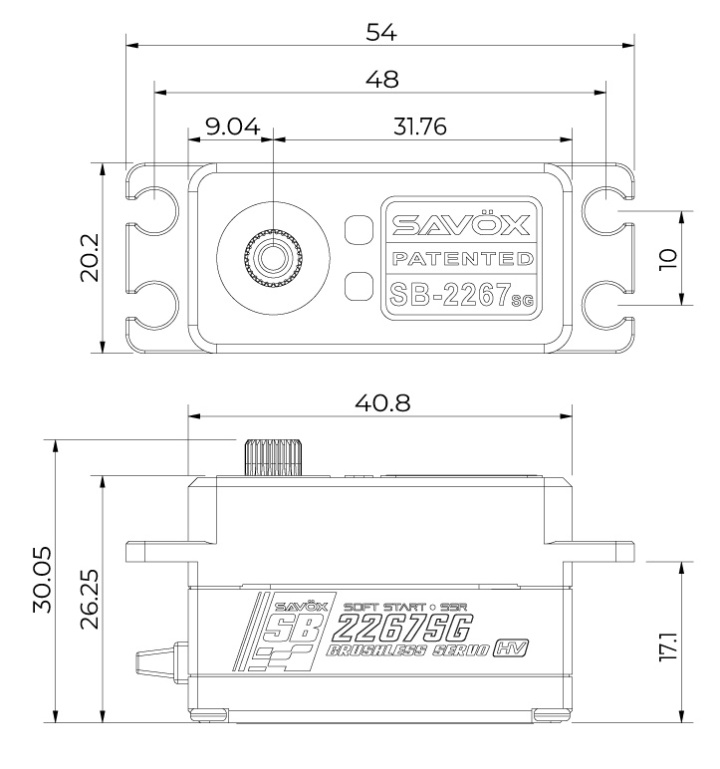

- Dimensions (L x W x H): 40.8 x 20.2 x 25.4 mm
- Weight_ 57 g
- Gear Type: Special Steel
- Compatibility: Sanwa SUR, SSR; Futaba UR, SR
- PCB Board: 32-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~130° (when 900→2100 μsec)
- Operating Travel: 90° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable: 22 AWG
- Cable Length: 300 ±5 mm
- Connector: JR
- Stall Current @ 6.0V: 4500 mA
- Operating Current @ 6.0V: 200 mA
- Stall Current @ 7.4V: 5600 mA
- Operating Current @ 7.4V: 220 mA
- Stall Current @ 8.4V: 6300 mA
- Operating Current @ 8.4V: 250 mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
