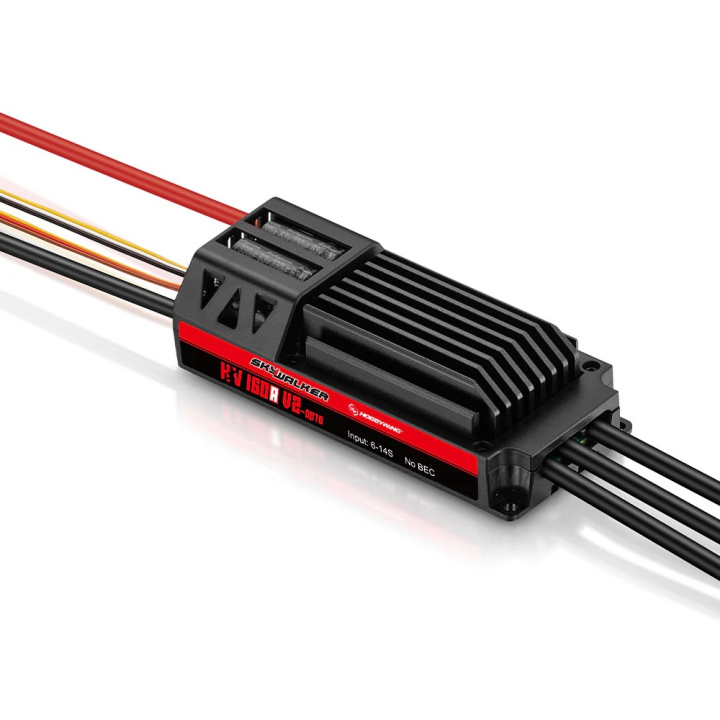

Hobbywing 30222301 - Skywalker 160A HV Opto V2 ESC 6-14S w/o BEC
Features:
- ESC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 120MHz) is compatible with various brushless motors.
- DEO (Driving Efficiency Optimization) Technology greatly improves throttle response, driving efficiency, and reduces ESC temperature.
- Separate programming cable for connecting ESC to an LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
- Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
- Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
- Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage, and throttle signal loss effectively prolong the service life of the ESC.
Technical Specifications
- Continuous current: 160 A
- Peak current: 200 A
- Input voltage: 6–14 S LiPo (High Voltage)
- BEC output: OPTO (no built-in BEC)
- Dimensions: 104 × 48 × 29 mm
- Weight: approx. 262.8 g
- Application: Large RC aircraft, 3D aerobatic models, high-performance gliders/towing
