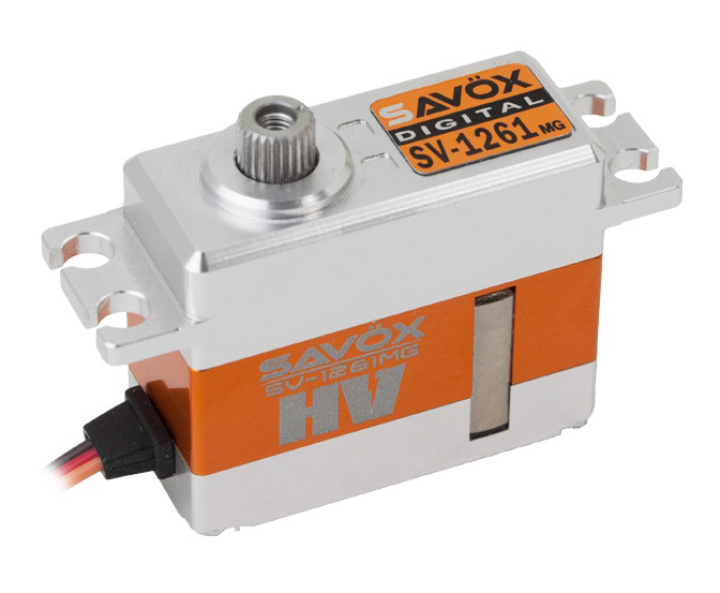

Savöx SV1261MG - Mini Servo 20kg/cm 0.095s/60° Airplane Servo
Specs:
- Line: MONSTER LINE
- Application: CAR / AIRPLANE
- Servo Size: Mini
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.12s/60°
- Torque @ 6.0V: 15.0kg/cm
- Speed @ 7.4V: 0.095s/60°
- Torque @ 7.4V: 20.0kg/cm
- Speed @ 8.4V: 0.08s/60°
- Torque @ 8.4V: 25.0kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Aluminum
- Protection: Dust Resistant

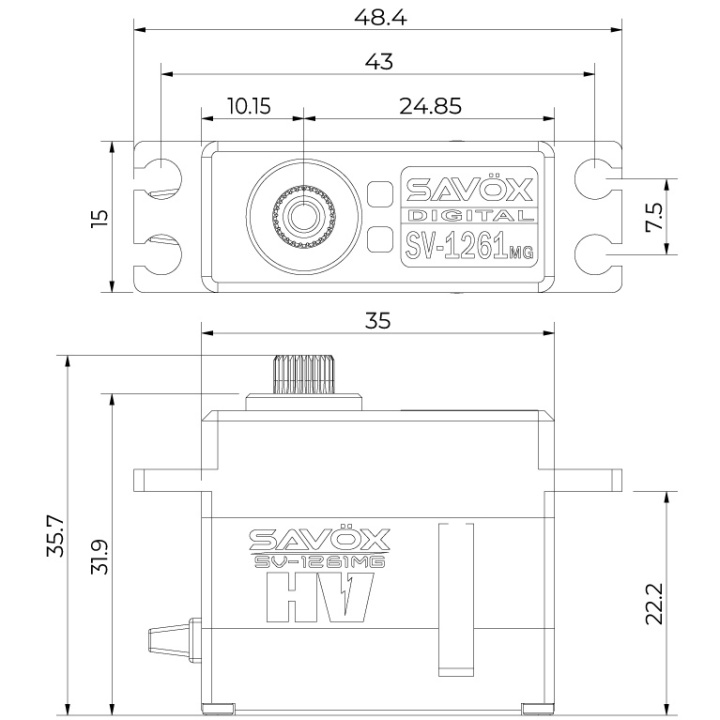

- Dimensions (LxWxH): 35x15x30.7mm
- Weight: 40g

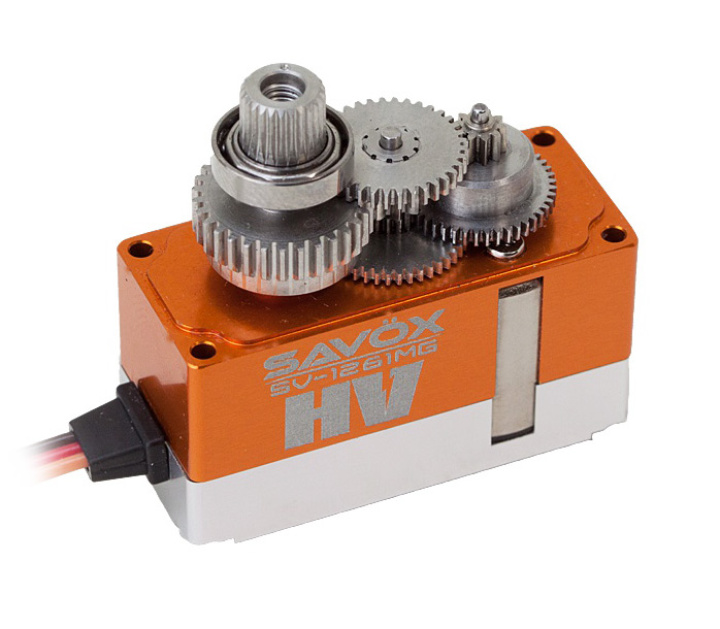

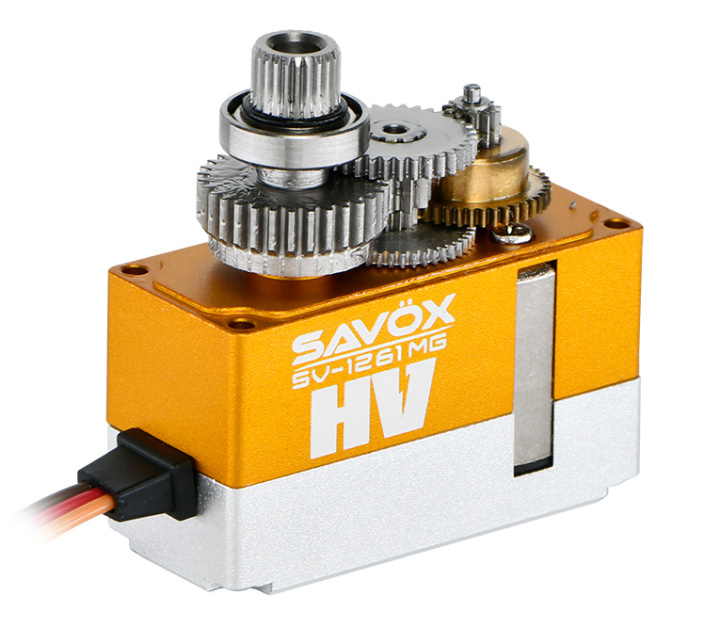

- Gear Type: Heavy-Duty Metal
- Compatibility: Normal
- PCB Board: 12bit 4096, Softstart, Lock protection
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000μsec)
- Max Travel: ~165° (when 800→2200μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26AWG
- Cable Length: 250 ±5mm
- Connector: JR
- Stall Current @ 6.0V: 4000mA
- Operating Current @ 6.0V: 150mA
- Stall Current @ 7.4V: 4900mA
- Operating Current @ 7.4V: 180mA
- Stall Current @ 8.4V: 5600mA
- Operating Current @ 8.4V: 200mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
