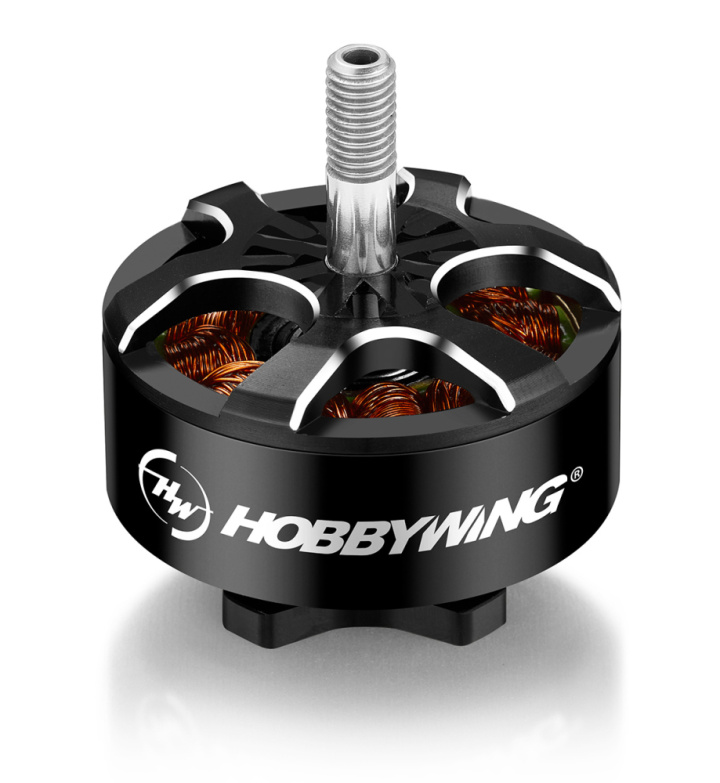

Hobbywing 30418006 - Xrotor FPV Motor 3110 1150kV 6S
New Tooth Groove Anti-slip Design
To achieve a safer and more reliable flight, the propeller mount has a new grooved design preventing the propeller from slipping.
Excellent Product Design, Industry-leading Materials:
- High-performance 0.2mm silicon steel sheets
- 200°C high-temperature resistant enameled wire
- Meet the needs of users pursuing extreme motor performance
- The multi-strand enameled wire winding design increases the slot full rate by approximately more than 5%
- The temperature is lower when compared with other competing brands on the market
- Uses N52 strong magnetic tiles with an arc- shaped design to provide a stronger torque to the motor
Specs:
- KV Rating: 1150KV
- LiPo Cells: 4-6S
- No-Load Current: 2.8A/24V
- Maximum Continuous Current: 69A/6s
- Maximum Continuous Rating: 1656W/6s
- Maximum Thrust: 4126g
- Motor Weight: 88g
- Motor Size: Φ37.2x27mm
- Slot/Pole: 12N14P
- Wire Size: 18AWG
- Wire Length: 250mm
- Enamelled Wire Insulation Class: 200℃ High temperature Resistant, H Class insulation
- Internal Resistance: 45mΩ
- Shaft Diameter: D5+M5
- Shaft Length: 16mm
- Screw Diameter/Thread: Φ19mm-4x M3
- Recommended ESC: XRotor FPV G2 65A 4in1 ESC
- Propeller: 6S:HQ8x4x3, HQ9x4x3
